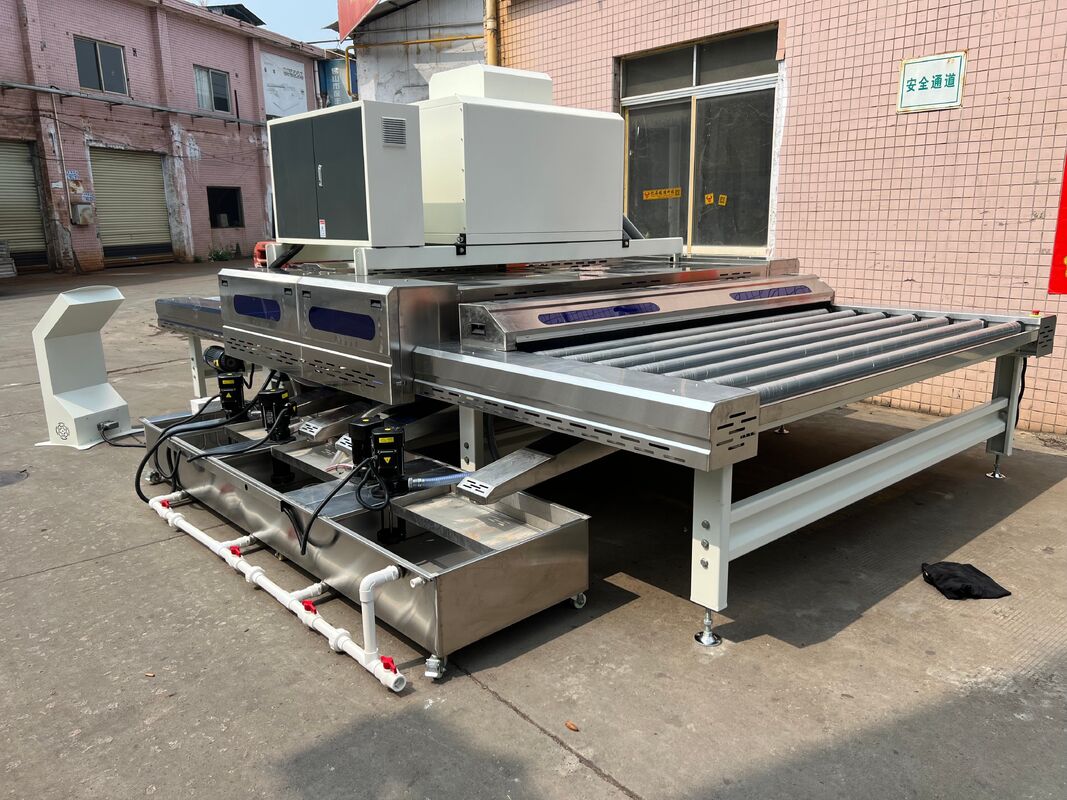

Automatic Glass Washing Drying Machine ST-QX3000 3-20mm 50Kw for Low-E Tempered Glass
Product Details:
| Place of Origin: | China |
| Brand Name: | FoShan Star |
| Model Number: | ST-QX3000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $18,000-$18,500 |
| Packaging Details: | Protective film/Wooden Box |
| Delivery Time: | 45 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Max Glass Size: | 2950mm | Min Glass Size: | 300 X 400mm |
|---|---|---|---|
| Processing Thickness: | 3-20mm | Working Speed: | 0.5-12m/min |
| Working Table Height: | 870mm±30mm | Total Power: | 50Kw |
| Dimension: | 5400 X 4200 X 2250mm | Air Pressure: | 0.5-0.8MPa / 1500Lpm |
| Highlight: | Automatic Glass Washing Drying Line,Four Step Water Tank Cleaning,Low-E Tempered Glass Processing |
||
Product Description
GLASS PROCESSING EQUIPMENT
ST-QX3000 Glass Washing and Drying Machine
Automatic horizontal glass washing and drying line for tempered glass, LOW-E glass and other high-standard washing processes.
Product Overview
The ST-QX3000 is a fully automatic glass washing and drying machine built for continuous workshop production. It combines a rolling-brush washing system with automatic lifting thickness adjustment and a multi-stage high-performance air drying system. The main transmission uses gear drive and the washing system features electric adjustment, delivering stable transmission, simple operation and consistent cleaning quality. Four pairs of up/down brushes plus a dedicated LOW-E soft brush meet the most demanding cleaning requirements.
Key Features
- 10+ bar pre-wash: high-pressure feeding area for thorough first-stage cleaning.
- Electric thickness adjustment: frequency-inverter drive speed with digital glass thickness control.
- Four-step water tanks: parallel-connected supply, water heating device and automatic fresh-water replenishment.
- Multistage air blades: stainless steel and aluminum combination structure with three-part flowing design.
- Six brushes: four pairs of up/down brushes plus a soft LOW-E brush (bristle 0.37mm / soft 0.1mm).
- Helical gear drive: stable, synchronized, low-noise transmission that will not jump teeth or wear out.
- Integral lifting section: internal maintenance height up to 350mm for quick brush replacement.
- 15KW high-pressure blower: 3-4 MPa air pressure at 10-12 m/s, fully sealed with noise treatment.
- Full stainless steel body: 1.2mm sheet with waterproof rings and casting bearings for long service life.
- Digital visualization: Delta inverter with IM display for convenient speed and thickness readout.
Technical Parameters
| Max glass size | 2950 mm |
| Min glass size | 300 x 400 mm |
| Processing thickness | 3 - 20 mm |
| Working speed | 0.5 - 12 m/min |
| Working table height | 870 mm ± 30 mm |
| Total power | 50 Kw |
| Overall dimension | 5400 x 4200 x 2250 mm |
| Air pressure | 0.5 - 0.8 MPa / 1500 Lpm |
Standard Accessories
- Rubber roller: monolithic die-casting, 80 mm
- Brush (outer 160): 6 pcs, imported quality, one for LOW-E glass
- Blower: low-noise high-pressure centrifugal fan (TAVI) 30KW with aluminum sound-proof box
- Brush motor: 2 pcs, 8-grade inverter motor, Yongkun 1.1kW-70 (one top / one bottom)
- Air knife: straight, 4 pcs; air heater 9 pcs 9KW; water heater 3 pcs 9KW (use / no-use adjustable)
- Water tank: 1 external 4-section with filter, stainless steel; water pump Shanqin 4 pcs 450W
