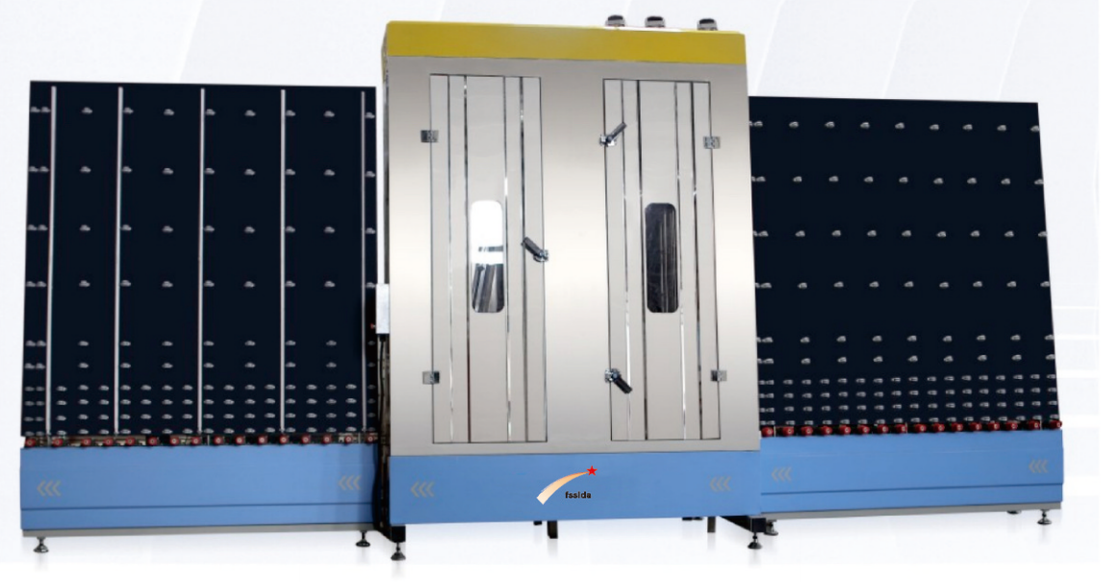

Vertical Industrial Glass Washing Machine 22KW 380V Glass Cleaning Equipment
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FOSHAN STAR |
| Certification: | CE/ISO/RoHS |
| Model Number: | ST-LS2500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 15580 |
| Packaging Details: | Protective film |
| Delivery Time: | 30-50 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Vertical Industrial Glass Washing Machine | Max Glass Size: | 2500mm |
|---|---|---|---|
| Min Glass Size: | 500mm×500mm | Glass Thickness: | 3mm-12mm |
| Working Speed: | Thickness ≤5mm, Vmax=7m/min; Thickness 8mm-12mm, V≤5 M/min | Total Power: | 22KW |
| Machine Dimensions: | 7200×2500×3500mm | ||
| Highlight: | Vertical Industrial Glass Washing Machine,Industrial Glass Washing Machine 22KW,380V Glass Cleaning Equipment |
||
Product Description
High Quality Vertical Glass Washing Machine 2500
Product Overview
This advanced vertical glass washing machine incorporates leading Italian technology, featuring robust stainless steel construction and high-performance cleaning capabilities for industrial glass processing applications.
Key Features & Structural Characteristics
- Cleaning department and water-contact parts constructed entirely from stainless steel for durability and corrosion resistance
- Reinforced stainless steel cleaning box with welded construction for high strength and deformation resistance
- Three-pair brush configuration: six 160mm diameter high-temperature resistant silk brushes with four spray systems
- Cleaning speed: 4-7 meters per minute with first brush pair featuring hard brushes and cylinder lift mechanism
- Automatic glass thickness adjustment via stainless steel springs (accommodates 3-12mm glass)
- All water-contact components manufactured from stainless steel, copper, waterproof aluminum, and nylon materials
- Stainless steel welded glass brackets in air-drying box prevent rust and secondary glass contamination
- Two-pair stainless steel wind knife configuration with powerful airflow and integrated heating system
- Energy-efficient circulating wind drying system with low noise operation (winter operation reaches 40°C without heating)
Technical Specifications
| Maximum Glass Size | 2500mm |
| Minimum Glass Size | 500mm * 500mm |
| Glass Thickness Range | 3mm - 12mm |
| Working Speed | Thickness ≤5mm: 7m/min max Thickness 8mm-12mm: ≤5m/min |
| Drive Speed Adjustment | Even Speed Control |
| Table Height | 750mm ±20mm |
| Total Power | 22KW |
| Water Source | Self-circulating with tap water and deionized water replenishment |
| Power Voltage | 380V/50Hz |
| Machine Dimensions (L*W*H) | Approx. 7200 * 2500 * 3500mm |
| Weight | 2200KG |
Segment Technical Parameters
Loading & Unloading Section
- Height: 2500mm, Width: 2250mm
- Back wheel material: 1.5 inch H45 back wheel/center bracket wheel
- Roller: 80-65*70-20 polyurethane pallet red
- Transfer mode: Bevel gear drive
- Standard glass flow: Right input, Left output (reversible per requirements)
Washing Section
- Brush configuration: 3 pairs (third pair with soft bristles)
- Brush motors: 6 Kalida geared motors
- Total power: Approximately 13.5KW
- Drive roller: Non-marking wear-resistant rubber rollers
- Transmission: Bevel gear system
- Water-contact sheet metal: Stainless steel construction
- Water pumps: 2 sets Jinlong high-pressure pumps (0.45KW + 0.25KW)
- Brush roller: Domestic with Φ0.3mm nylon filament (LOW-E soft brush: Φ0.1mm high-temperature wear-resistant filament)
- Spray system: Stainless steel pipe with hook and loop fan nozzle sprinklers
Drying Section
- Air knife configuration: 2 pairs (1 straight and 1 angled blade)
- Total power: Blower 18.5KW
- Main drive roller: Non-marking wear-resistant rubber roller
- Transmission: Bevel gear drive
- Side guards: Stainless steel
- Sheet metal: Cold plate painting
- Linear air knife: Stainless steel square tube with aluminum alloy
- Inclined air knife: JinYiFeng self-developed design
Complete Machine Configuration
| Frequency Converter | Easysmith Brand |
| PLC Controller | Delta U-Control |
| Motor & Reducer | Pearl River with Intech Brand |
| Electrical Components | Chint Brand |
| High-pressure Fan | JinYiFeng Standard Brand |
| Water Pump | Jinlong Brand |
| Drive Motor | 1 Motor (Pearl River with Intech) |
| Drive Shaft | Φ25 Chrome-plated Shaft |
| Other Components | Standard Specifications |
After-Sales Service
- One year free warranty for complete equipment with lifetime service support
- Complimentary equipment debugging (overseas costs covered by receiving manufacturer)
- Operator and maintenance personnel training provided
