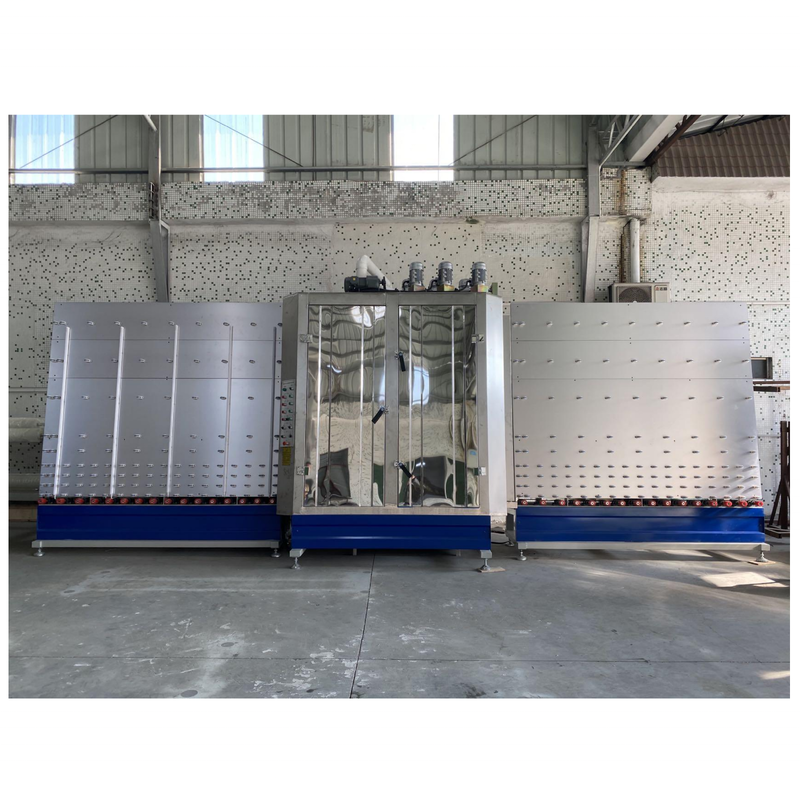

2000mm Vertical Glass Washing Machine Stainless Steel Material
Product Details:
| Place of Origin: | China |
| Brand Name: | Foshan Star |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $10,500-$9,850/SET |
| Packaging Details: | Protective film/Wooden box |
| Delivery Time: | 45 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Glass Washing Machine | Max Glass Size: | 2000mm |
|---|---|---|---|
| Min Glass Size: | 350mm ×500mm | Glass Thickness: | 2mm- 19mm |
| Working Speed: | Thickness ≤5mm, Vmax=7m/min； Thickness 8mm- 12mm， V ≤5 M/min | Table Height: | （ 750±20 ）mm |
| Total Power: | 22KW | Water Source: | Self-circulating, Tap Water (in Line With Civil Water Standards) And Deionized Water Replenishment (deionized Water Equipment Provided By The Demand Side). (The Deionized Water Equipment Is Provided By The Demand Side). |
| Power Voltage: | 380V/50Hz | Machine Size （L ×W ×H ）: | About 5800 ×2300 ×2900mm . |
| Weight: | 2200KG | ||
| Highlight: | 2000mm Glass Washing Machine,RoHS Vertical Glass Washing Machine,Stainless Steel Vertical Glass Washer Machine |
||
Product Description
Vertical Glass Washing Machine 2000MM - High - pressure fan
Cleaning department and water contact parts of the sheet metal all stainless steel material manufacturing. The cleaning box is made of thickened stainless steel welded as a whole, with high strength and no deformation.
Three pairs of brush configuration: six diameter 160mm high-temperature resistant silk brush + four spray, ensuring glass cleaning is clean and fast (4-7m per minute). The first brush configuration includes two hard brushes with cylinder lift.
Stainless steel spring can automatically adjust the thickness of 2-19mm cleaning glass.
Cleaning box and water contact parts of the components and screws are stainless steel, copper, waterproof aluminum, nylon velvet and other materials, ensuring long-term use without rust and easy maintenance.
Air-drying box glass bracket uniformly welded stainless steel, ensuring long-term use without rust and preventing secondary glass pollution. It features. Two pairs of stainless steel wind knife configuration, providing strong wind power and excellent drying effect, with a heating system. The unique circulating wind glass air drying system is energy saving and low noise (winter without heating wind temperature up to 40 degrees).
| Max glass siaze | 2000mm | Min glass size | 350mm*500mm |
| Glass thickness | 2mm - 19mm | Working speed | Thickness ≤5mm, Vmax=7m/min； Thickness 8mm- 12mm, V ≤5 m/min |
| Main drive speed adjustment method | even speed | Table height | ( 750±20 )mm |
| Total power | 22KW | Power voltage | 380V/50Hz |
| Machine size (L ×W ×H ) | About 5800 ×2300 ×2900mm . | Weight | 2200KG |
Glass Sample Results
