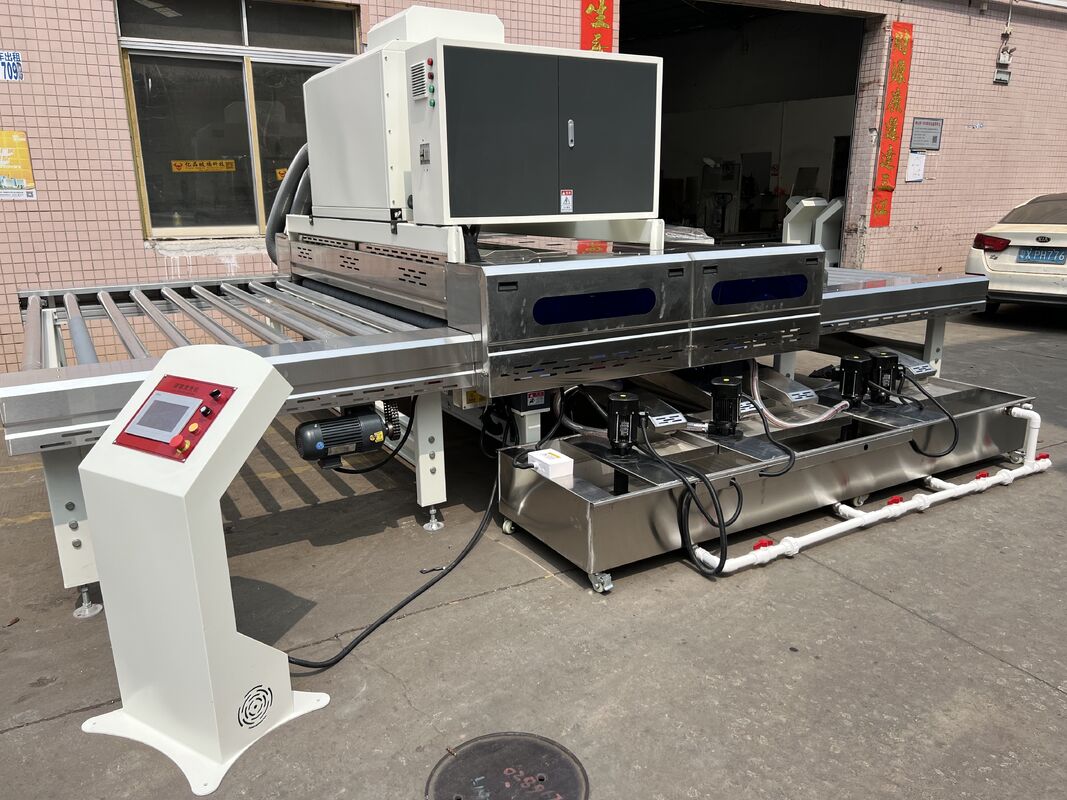

0.5-12m/Min Glass Cleaning Machine 23Kw High Efficiency Glass Washing And Drying Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FSSIDA |
| Certification: | CE |
| Model Number: | ST-PS2500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | $15000-$17500 |
|
Detail Information |
|||
| Name: | Glass Cleaning Machine | Total Power: | 23Kw |
|---|---|---|---|
| Air Pressure: | 0.5-0.8MPa/1500 Lpm | Max Glass Size: | 2500mm |
| Min Glass Size: | 400mm×400mm | Processing Thickness: | 3mm-20mm |
| Working Speed: | 0.5-12m/min | ||
| Highlight: | 12m/min Glass Cleaning Machine,0.5m/min Glass Cleaning Machine,Glass Cleaning Equipment 23Kw |
||
Product Description
High Efficiency Glass Cleaning Machine, Maximum Glass Size 2500mm
Product Description
This versatile glass washing and drying machine features rolling brush type design with automatic lifting thickness adjustment and multiple functional combinations. The main transmission system utilizes gear transmission with electric adjustment for stable operation and easy maintenance. Ideal for tempered glass washing, LOW-E glass, and other glass washing processes.
Product Features
Structure
- Three-section structure: feeding, washing/air dry, material sections
- Total length: 6.3 meters
- Main frame: 120mm×120mm×5.5mm tube for stable, reliable structure
- Three-level water tank for high cleanliness and low water consumption
Brush System
- Three sets of six brushes, diameter 150mm
- Soft brush for LOW-E glass (bristle diameter 0.37mm, soft 0.1mm)
- 35mm brush shaft diameter ensures 350 RPM without shaking or breakage
- Quick replacement and easy conversion for LOW-E glass operation
Lift Control
- Integrated dry cleaning section lifting with 350mm internal height
- Electric digital display for online thickness adjustment
- Waterproof, anti-rust, and dust-proof design for durability
Drive System
- Helical gear transmission for stable synchronization and low noise
- Plated drive shaft for rust prevention and easy maintenance
- Annealed gears with high-frequency processing for hardness and wear resistance
- Delta inverter speed control with digital display
- Synchronous roller power device for stable glass transmission
Stainless Steel Construction
- All stainless steel sheet construction (1.2mm thickness)
- Enhanced rust resistance and aesthetic appearance
- Waterproof rings and boards prevent leakage issues
- Cast bearings for better waterproof performance and longevity
High Pressure Fan
- 15KW high-pressure blower with 3-4 Mpa wind pressure
- Wind speed: 10-12 m/s for excellent drying effect
- Stainless steel wind knives resist rust and deformation
- Fully sealed noise processing for lower operational noise
- Complete seal suction speakers for minimal wind noise
Product Specifications
| Max Glass Size | 2500mm |
| Min Glass Size | 400mm×400mm |
| Processing Thickness | 3mm-20mm |
| Working Speed | 0.5-12m/min |
| Working Table Height | 870mm±30mm |
| Total Power | 23Kw |
| Power Supply | 3PH/AC380V/50Hz |
| Dimensions | 5400×4200×2250mm |
| Air Pressure | 0.5-0.8MPa/1500 Lpm |
