1600mm Horizontal Glass Washer And Dryer With Adjustable Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | FoShan Star |
| Model Number: | ST-QX1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $5,050-$5,100/SET |
| Packaging Details: | Protective film/Wooden Box |
| Delivery Time: | 35 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Glass Washer And Dryer | Speed: | 1.5-3.5 M/min |
|---|---|---|---|
| Min.Glass Size: | 250*250 Mm | Glass Thickness: | 3-15 Mm |
| Max.Width Of Glass: | 1600 Mm | Voltage/Frequency: | 380V / 50Hz |
| Power: | 10 KW | Weight: | 1000 Kg |
| Overall Size: | 4000*1900*1000 Mm | ||
| Highlight: | Horizontal Glass Washer And Dryer,1600mm Glass Washer And Dryer,Adjustable Speed Glass Washer And Dryer |
||
Product Description

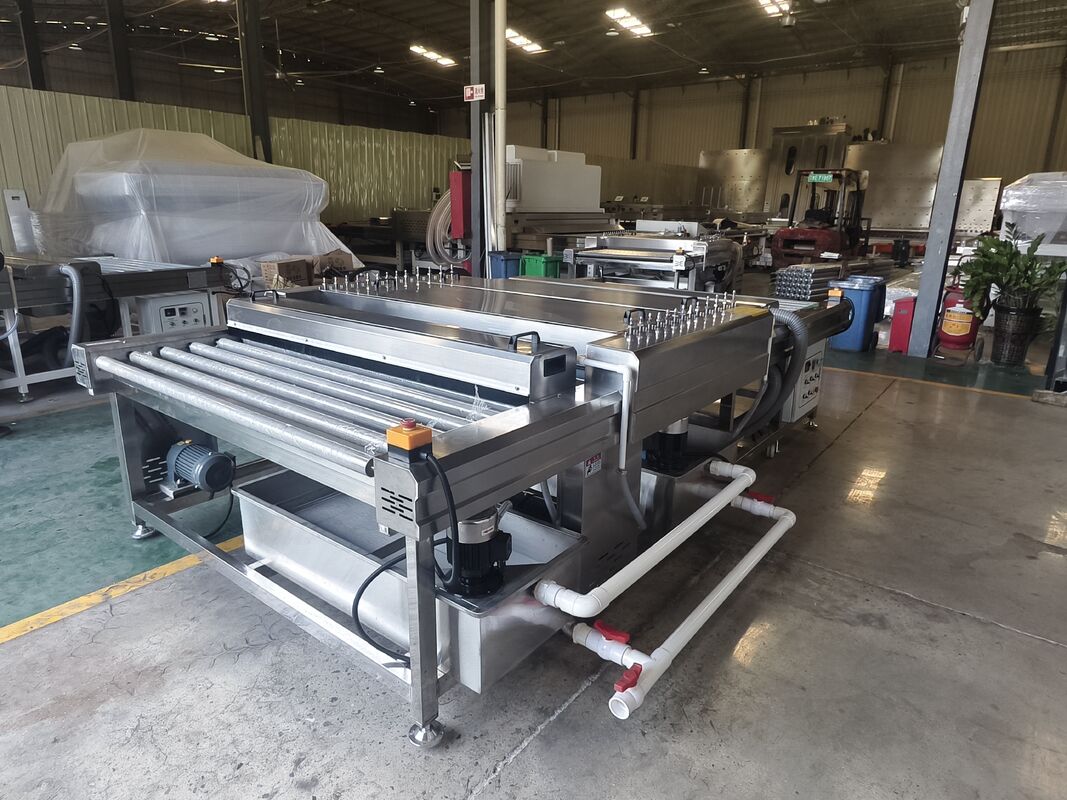

Horizontal Glass Washing Machine (1600MM)
This machine is designed for the washing and drying of flat glass with a thickness ranging from 3mm to 15mm. It features a horizontal structure that ensures smooth, efficient, and safe transmission.
Key Features & Functions
- Simple Workflow: The glass is conveyed by rollers, entering the feeding part, moving smoothly to the washing part and drying part, and finally exiting the machine.
- Variable Speed Control: The transmission speed is controlled by a variable motor. Note: The machine must be powered on to adjust the speed.
- Adjustable Temperature: The temperature of the hot air can be adjusted according to client demand.
⚙️ Technical Specifications
| Specification | Data |
|---|---|
| Speed | 1.5 - 3.5 m/min |
| Min. Glass Size | 250 × 250 mm |
| Glass Thickness | 3 - 15 mm |
| Max. Width of Glass | 1600 mm |
| Voltage / Frequency | 380V / 50Hz |
| Power | 10 KW |
| Weight | 1000 kgs |
| Overall Size | 4000 × 1900 × 1000 mm |
Machine Structure
The machine is composed of four main sections:
- Loading Table: Where the glass is fed into the system.
- Cleaning Room: The section where the washing process occurs (equipped with brushes and sponge).
- Drying Part: The section where the glass is dried using hot air.
- Unloading Table: Where the cleaned glass exits the machine.
📦 Packaging & Shipping
- Packaging: Wrapped in film or packed in a plywood case.
- Shipping Options: Available by Full Container Load (FCL) or Less than Container Load (LCL).
Guarantee & After-Sale Service
- Warranty: One-year guarantee for the machine (excluding consumable parts).
- Support: 24-hour technical support via email or online chatting apps.
- Documentation: Includes an English control page, manual, and detailed operation videos.
Glass Sample Results
