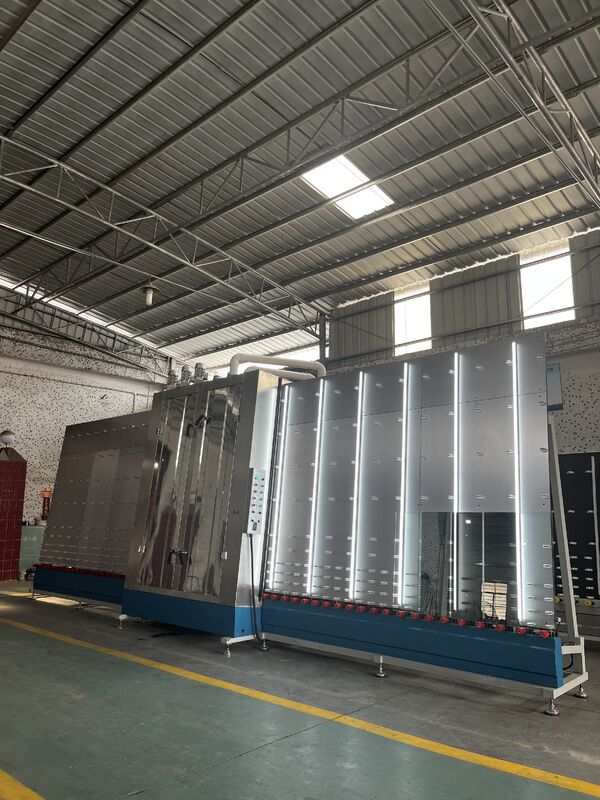

304 Stainless Steel Glass Cleaning Machine 32KW With High Power Air Knife Circulating Heating
Product Details:
| Place of Origin: | China |
| Brand Name: | Foshan Star |
| Certification: | CE |
| Model Number: | 2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $23000-$26300/SET |
| Packaging Details: | Protective film/Wooden box |
| Delivery Time: | 45 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Max Glass Size: | 3000mm | Min Glass Size: | 450mm ×450mm |
|---|---|---|---|
| Glass Thickness: | 2mm- 19mm | Main Drive Speed Adjustment Method: | Variable Frequency Speed Control |
| Total Power: | 32KW | Power Voltage: | 380V/50Hz |
| Machine Size （L ×W ×H ）: | About 9650x2760x3850mm | Weight: | 3300KG |
| Name: | Glass Washing Machine | ||
| Highlight: | 304 Stainless Steel Glass Cleaning Machine,SS304 Glass Cleaning Machine,Glass Cleaning Machine 32KW |
||
Product Description
Product Description
Cleaning department and water contact parts of the sheet metal all stainless steel material manufacturing. The cleaning box is made of thickened stainless steel welded as a whole, with high strength and no deformation.
Three pairs of brush configuration: six diameter 160mm high-temperature resistant silk brush + four spray, ensuring glass cleaning is clean and fast (4-7m per minute). The first brush configuration includes two hard brushes with cylinder lift.
Stainless steel spring can automatically adjust the thickness of 2-19mm cleaning glass.
Cleaning box and water contact parts of the components and screws are stainless steel, copper, waterproof aluminum, nylon velvet and other materials, ensuring long-term use without rust and easy maintenance.
Air-drying box glass bracket uniformly welded stainless steel, ensuring long-term use without rust and preventing secondary glass pollution. It features. Two pairs of stainless steel wind knife configuration, providing strong wind power and excellent drying effect, with a heating system. The unique circulating wind glass air drying system is energy saving and low noise (winter without heating wind temperature up to 40 degrees).
Product Specifications
| Max glass siaze | 3000mm | Min glass size | 450mm*450mm |
| Glass thickness | 2mm - 19mm | Working speed | Thickness ≤5mm, Vmax=7m/min； Thickness 8mm- 12mm, V ≤5 m/min |
| Main drive speed adjustment method | even speed | Table height | ( 750±20 )mm |
| Total power | 32KW | Power voltage | 380V/50Hz |
| Machine size (L ×W ×H ) | About 9650x2760x3850mm | Weight | 3300KG |
Product Service
Product Images
