Glass Washing Machine 4 Pairs Upper Lower Brushes Electric Gap Adjustment and Multistage Air Knives
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST-QX1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 15500-17650USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Horizontal Glass Cleaning Machine | Glass Thickness: | 3-25mm |
|---|---|---|---|
| Min Glass Size: | 400*400mm | Max Glass Size: | 2500mm |
| Power: | 23 KW | Machine Dimension: | 6300*3600*2650 Mm |
Product Description

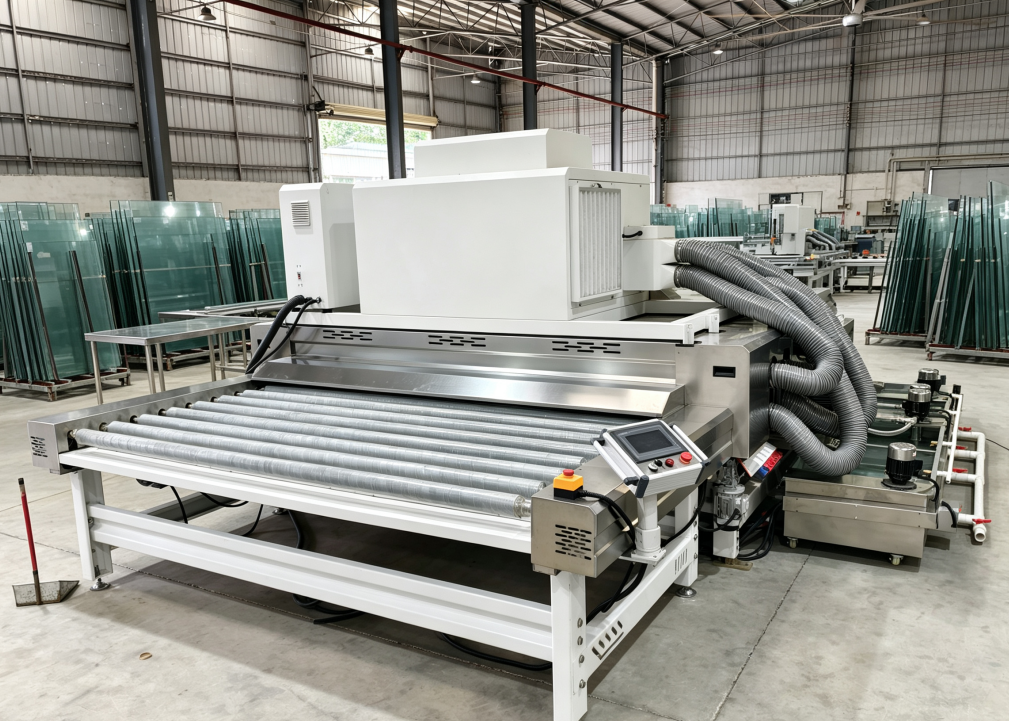

Horizontal Glass Washing Machine
Product Overview
- This glass‑washing machine supports flexible configuration of roller‑brush units, automatic lifting thickness‑adjustment device and multiple functional combinations to satisfy different production demands from users. The main transmission system adopts gear‑driven structure, and the cleaning gap can be electrically adjusted, ensuring stable power transmission and straightforward operation.
- It delivers stable and reliable running performance with superior cleaning effect, alongside easy‑to‑maintain and adjustable components. This equipment is perfectly applied to washing processing for tempered glass, Low‑E glass and other flat glass types.
Key Features & Operation
- The feeding section is equipped with high‑pressure pre‑washing with water pressure above 10 bar.
- The conveying speed is controlled by frequency conversion. Glass thickness clearance is adjusted electrically.
- Four‑stage independent water tanks are fitted with parallel water‑supply switches, water‑heating units and an automatic fresh‑water replenishment system.
- Multi‑stage high‑performance air knives adopt a combined stainless‑steel and aluminium‑alloy structure with a three‑section airflow design.
- Glass thickness adjustment is motor‑driven. The maximum inner maintenance opening height reaches 350 mm.
- Four pairs of upper‑and‑lower brushes plus a dedicated Low‑E brush satisfy high‑standard glass‑cleaning requirements.
Technical Specifications
| Specification | Data |
|---|---|
| Speed Range | 0-10m/min |
| Minimum Glass Size | 400*400 mm |
| Glass Thickness Range | 3-25 mm |
| Maximum Glass Width | 2500 mm |
| Power Consumption | 23 KW |
| Overall Dimensions | 6300*3600*2650mm |
Product Service
Machine Images
Want to Know more details about this product
