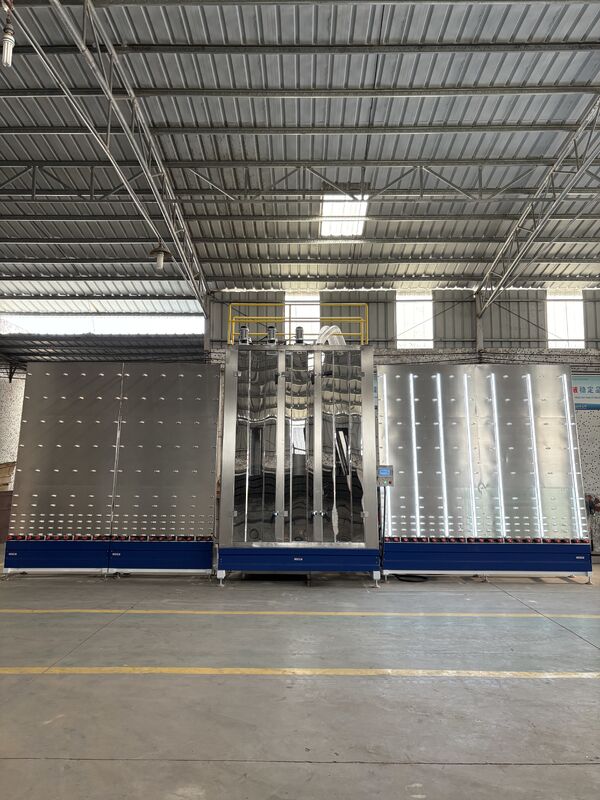

Vertical Glass Washing Machine Constructed from Corrosion Resistant Materials for Extended Service Life

Overview
This glass washing machine is built on world-leading Italian technology, delivering high-speed cleaning, durable all-stainless construction, and energy-efficient drying for professional glass processing lines.

Key Features

1. 100% Stainless Steel Wet Section
The cleaning department and all water-contact parts are manufactured entirely from stainless steel sheet metal, ensuring superior corrosion resistance and long-term reliability.

2. Reinforced One-Piece Welded Cleaning Chamber
The cleaning box is constructed from thickened stainless steel and welded as a single unit, providing exceptional strength and deformation resistance under continuous operation.

3. High-Speed Brush & Spray Cleaning System
Equipped with three pairs of brushes — six Ø160mm high-temperature-resistant silk brushes — plus four spray units, delivering clean, rapid glass cleaning at 4–7 m/min.

4. Cylinder Lift Mechanism on First Brush Pair
The first brush configuration features two hard brushes with a cylinder lift mechanism for convenient adjustment and simplified maintenance.

5. Automatic Thickness Adaptation
A stainless steel spring automatically adjusts to accommodate glass thicknesses from 3mm to 12mm.

6. Rust-Free Materials Throughout
All water-contact components and screws are made from stainless steel, copper, waterproof aluminum, and nylon velvet — rust-free for long-term use and easy maintenance.

7. Anti-Contamination Air-Drying Bracket
The air-drying box glass bracket is uniformly welded from stainless steel, preventing rust and eliminating the risk of secondary glass contamination.

8. Powerful Dual Wind Knife Drying System
Two pairs of stainless steel wind knives provide powerful wind drying with an integrated heating system for fast, streak-free results.

9. Energy-Efficient Circulating Air Drying
The unique circulating wind glass air-drying system ensures energy efficiency and low-noise operation — in winter, wind temperature reaches up to 40°C even without heating.
