10 Motors Glass Grinding Polishing Machine With PLC Support Bottom Edge Grinding
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST361C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 22000-24000USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Glass Grinding Polishing Machine | Glass Thickness: | 4-12mm |
|---|---|---|---|
| Bevel Angle: | 0°-25° | Min. Glass Size: | 80mmX80mm |
| Max. Bevel Width: | 35mm | Speed: | 0.6m-6m/min |
| Total Power: | 25KW | Weight: | 5500KG |
| Core Components: | PLC、Motors | ||
| Highlight: | 10 Motors Glass Grinding Polishing Machine,Glass Grinding Polishing Machine PLC Control,ISO9001 Glass Grinding Polishing Machine |
||
Product Description
10 Motors Glass Beveling Machine with PLC
Machine Introduction
This machine is for glass bevel‑edge grinding & polishing with bottom‑edge grinding function.
Product Highlight
- It is equipped with a chain‑drive conveyor with wear‑resistant rubber pads and No.40 forged steel frames. Timing‑belt loading/unloading, variable‑frequency main conveyor and high‑precision CDQC motors ensure stable operation.
- The combined chain and timing‑belt conveying system guarantees steady glass transport. Variable‑speed control and CDQC high‑precision motors effectively minimize vibration for uniform grinding quality.
- Boasting advanced structure and high machining precision, the machine is easy to operate and requires minimal maintenance.
Parameters
| Spindles | 10 |
| Working speed | 0.6m-6m/min |
| Min glass size | 80*80mm |
| Glass thickness | 4-12mm |
| Max glass size | 3000*3000mm |
| Bevel angle | 0° - 25° |
| Max bevel width | 35mm |
| Total Power | 25KW |
| Machine dimension | 7000*1300*1900mm |
| Weight | 5500KG |
Product Services

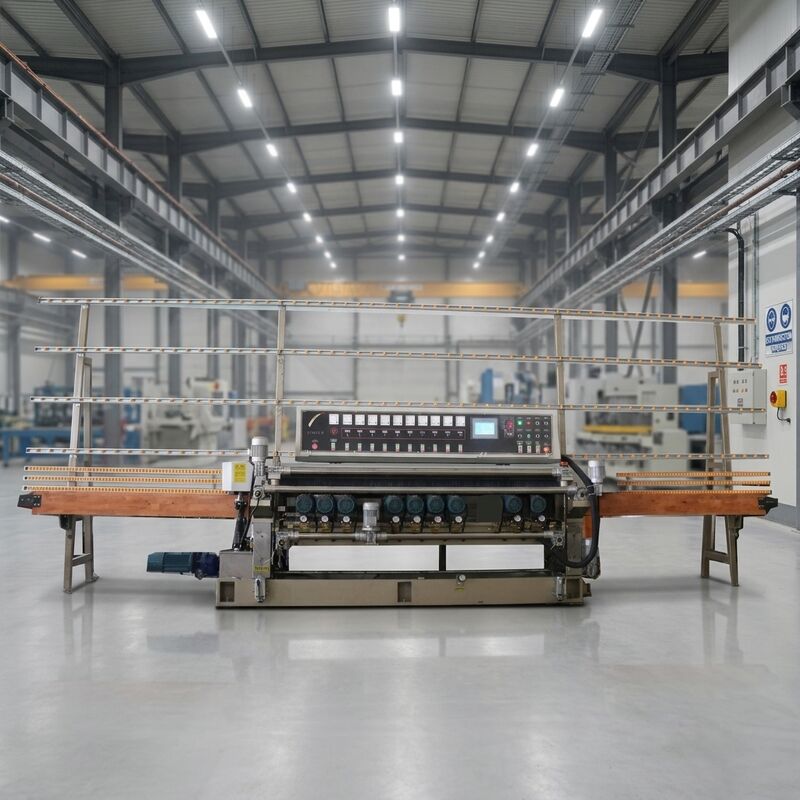

Machine Images
