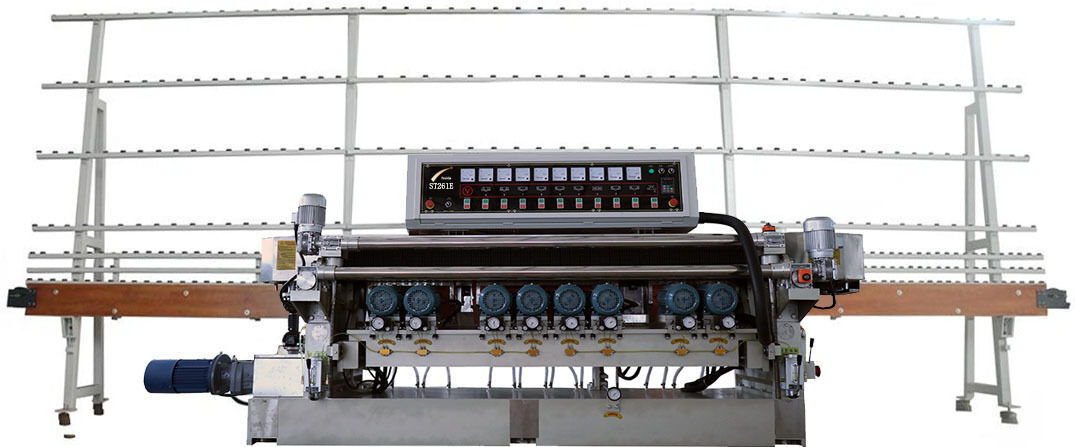

21kW Glass Edge Beveling Machine Easy Operate ISO RoHS Certified
Product Details:
| Brand Name: | FOSHAN STAR |
| Certification: | CE/ISO/RoHS |
| Model Number: | ST261E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 18500 |
| Packaging Details: | Protective film |
| Delivery Time: | 30-50 |
| Payment Terms: | T/T |
| Supply Ability: | 15-30SET/MONTH |
|
Detail Information |
|||
| Name: | Glass Edge Beveling Machine | Motor Power: | 21kW |
|---|---|---|---|
| Thickness Range: | 3-12mm | Min Glass Size: | 80*80*3mm |
| Work Speed: | 0.6-6.0 M/Min | Dimensions: | 6.68m X 1.3m X 1.9m |
| Machine Weight: | 4000 Kg | Power Supply: | Customers Specification |
| Machine Type: | Beveling | Bevel Angle: | 0°-25° |
| Max. Bevel Width: | 3.30mm | Maximum Glass Size: | 3000*3000mm |
| Highlight: | 21kW Glass Edge Beveling Machine,Glass Edge Beveling Machine Easy Operate,Glass Edge Beveling Machine RoHS Certified |
||
Product Description
This machine is designed for grinding/polishing bevel edge, with bottom edge grinding. Conveyors use chain transmitting system which consist of anti-friction rubber pads with NO.40# forging steel bone. Timing belt are used in loading and unloading arms to carry glass, which has a stable transportation. Adopt frequency conversion as main
conveyor .Grinding wheels are driven by high precision CDQC motors.
The machine structure is advanced and high working precision . Easy to operate and keep maintenance.
- Product Name: Glass Beveling Equipment Machine
- Color: Customer Selection
- Mechanical Text Report: Provided
- Power Supply: According to Customer's Specification
- Minimum Glass Size: 80×80×3mm
- Work Speed: 0.6-6.0 M/Min
- High precision Glass Edge Beveling Machine for smooth and accurate bevels
- Durable and reliable Glass Beveling Equipment Machine suitable for various glass types
| Parameter | Specification |
|---|---|
| Power Supply | Customer's Specification |
| Application | Glass & Mirror |
| Mechanical Test Report | Provided |
| Dimensions (L × W × H) | 6.68m × 1.3m × 1.9m |
| Minimum Glass Size | 80×80×3mm |
| Color | Customer Selection |
| Thickness Range | 3-12mm |
| Work Speed | 0.6-6.0 M/Min |
| Motor Power | 21kW |
| Machine Weight | 4000 Kg |
Q: What is the MOQ?
A: 1 SET
Q:What is the best price?
A:The price depends on machine size, model etc.
Q:What is the delivery time?
A:Usually it within 30-60 days , but also depends on machine model. Your voltage etc.
Q: What about warranty?
A:We supply one year warranty period ,Lifetime technical support and service.
Q: How your after-sale service?
A: Online Remote Service, Engineers go on site to install service training. 7*24 hours service.
Q:Where do you sell? Do you have experience in these countries?
A:We sold to America,Europe,Middle East,Asia,and so on.We have 20 years in export with all different certificates,like CB,CE, RO,HS, ISO9001 etc.
