9 Motors PLC Control Glass Beveling Equipment 21KW With 30mm Max Bevel Width
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST-261E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 20000-23000USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Glass Beveling Equipment | Glass Thickness: | 3-12mm |
|---|---|---|---|
| Bevel Angle: | 0-25° | Min. Glass Size: | 80mmX80mm |
| Max. Bevel Width: | 30mm | Speed: | 0.6m-6m/min |
| Total Power: | 21KW | Weight: | 4000KG |
| Core Components: | PLC / Motors | ||
| Highlight: | 9 Motors Glass Beveling Equipment,PLC Control Glass Beveling Equipment,Glass Beveling Equipment 21KW |
||
Product Description
9 Motors PLC Control Glass Beveling Machine With 30mm Max Bevel Width For Precision Edging
Machine Introduction
This machine is designed for grinding/polishing bevel edge, with bottom edge grinding. Conveyors use chain transmitting system which consist of anti-friction rubber pads with NO.40# forging steel bone. Timing belt are used in loading and unloading arms to carry glass, which has a stable transportation. Adopt frequency conversion as main conveyor .Grinding wheels are driven by high precision CDQC motors.
The machine structure is advanced and high working precision . Easy to operate and keep maintenance.
Technical parameters
- Spindles: 9 heads
- Speed: 0.6m-6m/min
- Max. bevel width: 30mm
- Min. glass size: 80mmX80mm
- Maximum glass size:3000*3000mm
- Glass thickness: 3mm-12mm
- Bevel angle: 0°-25°
- Total power: 21 KW
- Total dimension: 6.68mX1.3mX1.9m
- Weight: 4000Kg

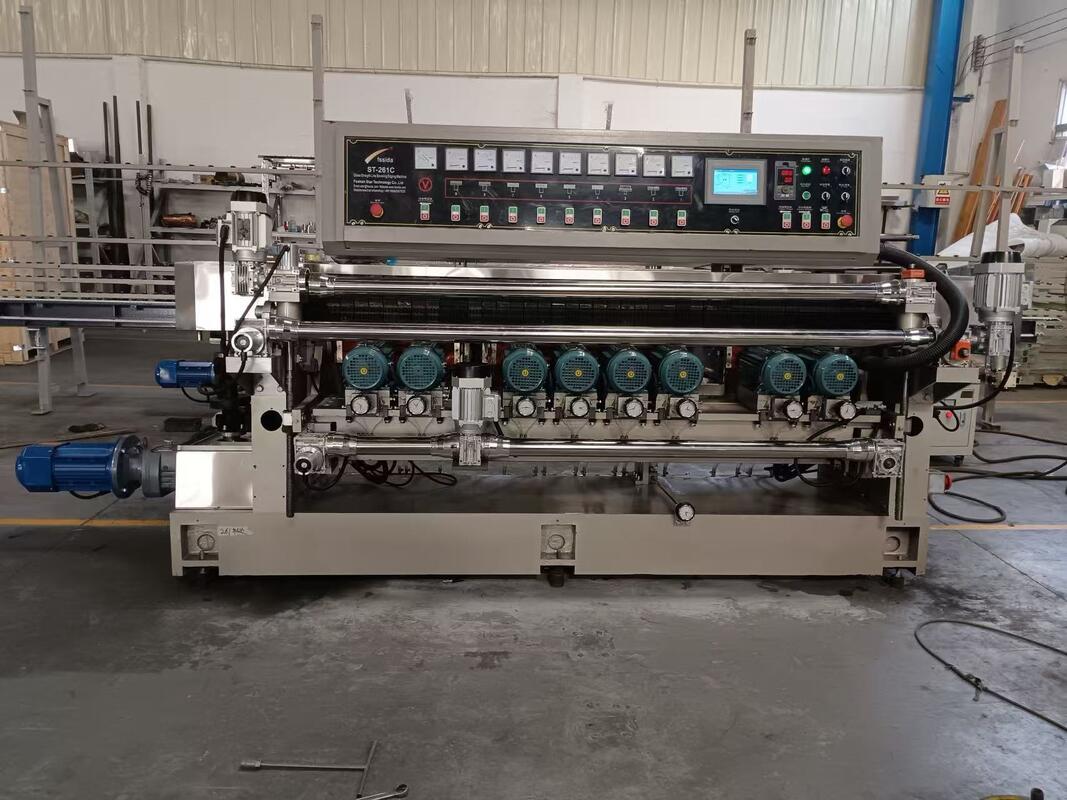

Machine Photo
