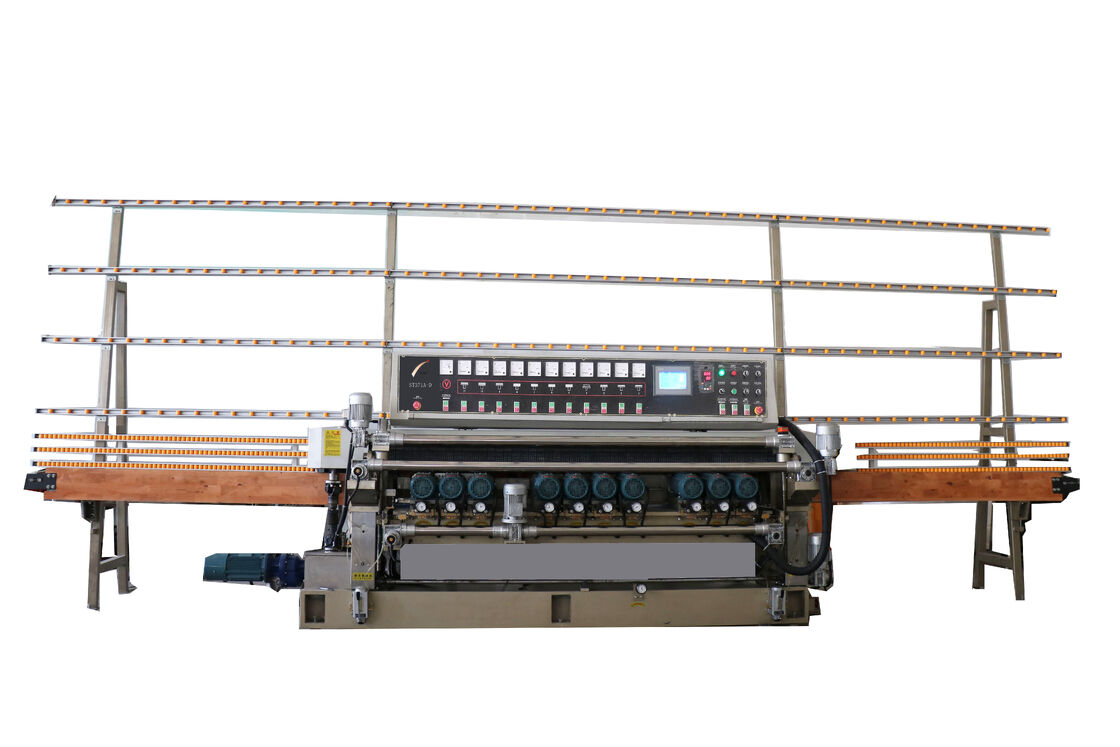

11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST 371 A - D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 25100-26000USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 -45 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Glass Beveling Machine | Max Glass Size: | 3000*3000mm |
|---|---|---|---|
| Min Glass Size: | 80*80mm | Weight: | 4000KG |
| Bevel Angle: | 0°-25° | Total Dimension: | 6680*1300*1900mm |
| Glass Thickness: | 4-12mm | ||
| Highlight: | 11 Spindle Glass Beveling Machine,Glass Beveling Machine 0.6m/min,Glass Bevel Machine 6.0m/min |
||
Product Description
11-Spindle Glass Beveling Machine with PLC and Lifting Function
Product Overview
This 11-spindle glass beveling machine is professionally built for glass bevel-edge grinding and polishing. It adopts timing-belt conveying system and front-guide-rail lifting structure, supporting the machining of small-size glass workpieces with a minimum dimension of 25×25 mm.
Product Advantages
- PLC control supports fast parameter setting. The front-guide-rail lifting structure enables simple adjustments, especially for small-size glass, for quick production changeover.
- High-precision performance: bevel angle tolerance ±0.15°, edge straightness ≤0.08 mm/m, surface roughness Ra≤0.8 μm. It produces chip-free, uniform mirror-finish bevels even on tiny workpieces.
Technical Specifications
| Spindles | 11 |
|---|---|
| Working speed | 0.6m-6m/min |
| Max. bevel width | 50mm |
| Min glass size | 25×25mm |
| Max glass size | 2000×3000mm |
| Glass thickness | 3-12mm |
| Bevel angle | 0° - 25° |
| Total power | 25 KW |
| Total dimension | 7100×1300×2600mm |
| Weight | 5000 KG |
Product Services
Machine Images
