0.75-3.5m/min Horizontal Glass Washer , 3-15mm Glass Washing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST-QX1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 3850-4500USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Power: | 10KW | Name: | Glass Washing Machine |
|---|---|---|---|
| Highlight: | 0.75m/min Horizontal Glass Washer,3.5m/min Horizontal Glass Washer,15mm Glass Washing Equipment |
||
Product Description
Factory Direct Horizontal Glass Washing Machine with 0.75-3.5m/min Speed, 1150mm Max Width for 3-15mm Thickness Glass
Product Overview
Engineered to maintain consistent cleaning performance during continuous industrial operation, this glass washing machine is designed for washing and drying flat glass with thickness ranging from 3-15mm.
Key Features & Operation
- Horizontal structure design for smooth, efficient, and safe transmission
- Simple workflow: glass conveyed by rollers through feeding, washing, and drying sections
- Variable speed motor control with adjustable transmission speed (0.75-3.5m/min)
- Adjustable hot air temperature to meet client requirements
- Equipped with three pairs of brushes and two pairs of sponge rollers
Technical Specifications
| Specification | Data |
|---|---|
| Speed Range | 0.75-3.5 m/min |
| Minimum Glass Size | 90 * 90 mm |
| Glass Thickness Range | 3-15 mm |
| Maximum Glass Width | 1150 mm |
| Power Consumption | 10 KW |
| Machine Weight | 1000 kg |
| Overall Dimensions | 3300 * 1200 * 1100 mm |
Product Service

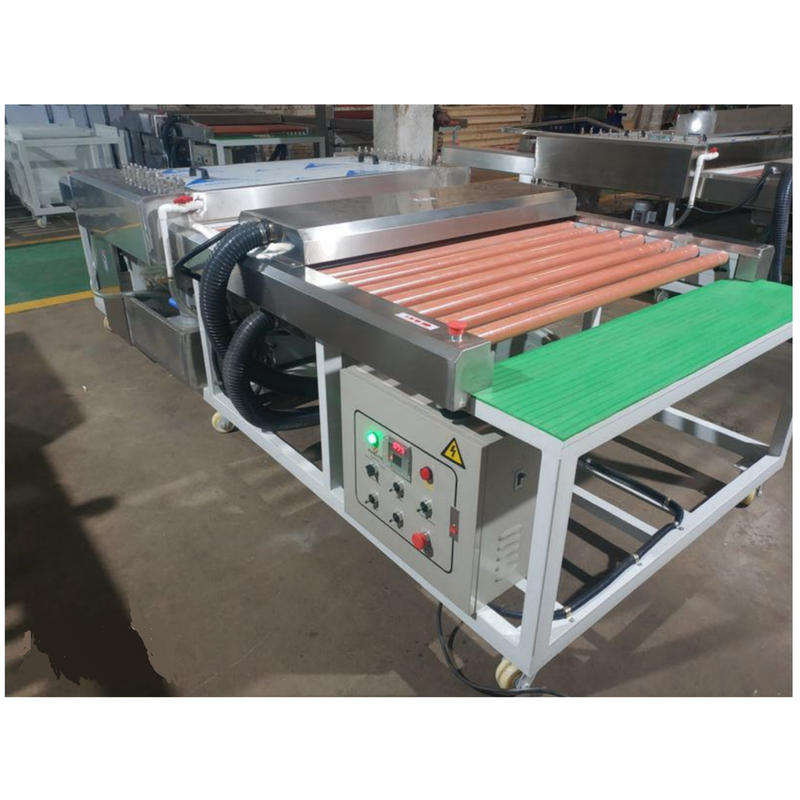

Machine Photos
Want to Know more details about this product
