3mm-25mm 380V Glass Washing Machine Horizontal With High Pressure Fan
Product Details:
| Place of Origin: | China |
| Brand Name: | Foshan Star |
| Model Number: | ST-QX2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $12,800-$13,500/SET |
| Packaging Details: | Protective film/Wooden box |
| Delivery Time: | 35 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Glass Washing Machine | Max Glass Size: | 2000mm |
|---|---|---|---|
| Min Glass Size: | 380x380mm | Glass Thickness: | 3mm-25mm |
| Working Speed: | Thickness Of Glass Is Less Than 5mm, Vmax= 7m/min Thickness Of Glass Is 8mm To 12mm, V<= 3m/min Thickness Of Glass Is 15mm-19mm, V= 2m/min | Power: | 380V/50HZ |
| Machine Size: | 5550 X 3500 X 2700 | Weight: | 3120Kg |
| Roller Brush: | 3 Pair | ||
| Highlight: | 380V Glass Washing Machine,25mm Glass Washing Machine,3mm Horizontal Washing Glass Machine |
||
Product Description

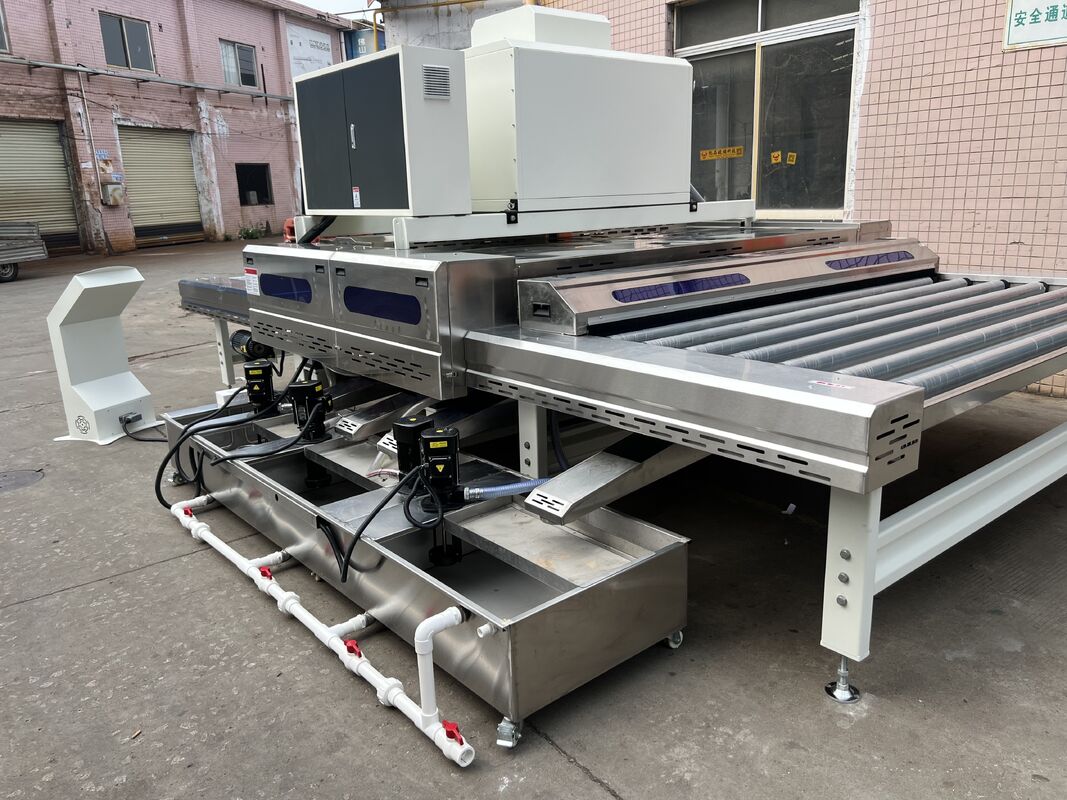

ST - QX2000 Horizontal Glass Washing Machine 2000MM with high pressure fan
Engineered for high-volume glass processing, this machine features a fully welded stainless steel washing chamber that ensures structural integrity and corrosion resistance. The high-efficiency roller brush system adapts processing speed based on glass thickness, delivering spotless cleaning results while maximizing throughput for various specifications ranging from 3mm to 25mm.
Key Features
- All-Stainless Steel Construction: The washing box is fabricated from heavy-duty stainless steel and fully welded into a single unit, guaranteeing zero deformation and superior durability against corrosion.
- Adaptive High-Speed Cleaning: Equipped with 3 pairs of precision roller brushes, the system automatically optimizes throughput based on material thickness.
- Wide Processing Range: Capable of handling glass sizes up to 2000mm wide and thicknesses from 3mm to 25mm.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max Glass Size | 2000 mm |
| Min Glass Size | 380 x 380 mm |
| Glass Thickness Range | 3 mm – 25 mm |
| Working Speed (< 5mm) | Max 7 m/min |
| Working Speed (8–12mm) | ≤ 3 m/min |
| Working Speed (15–19mm) | ≤ 2 m/min |
| Brush Configuration | 3 Pairs of Roller Brushes |
| Power Supply | 380V / 50Hz |
| Machine Dimensions | 5550 x 3500 x 2700 mm (L x W x H) |
| Machine Weight | 3120 Kg |
Glass Sample Results
