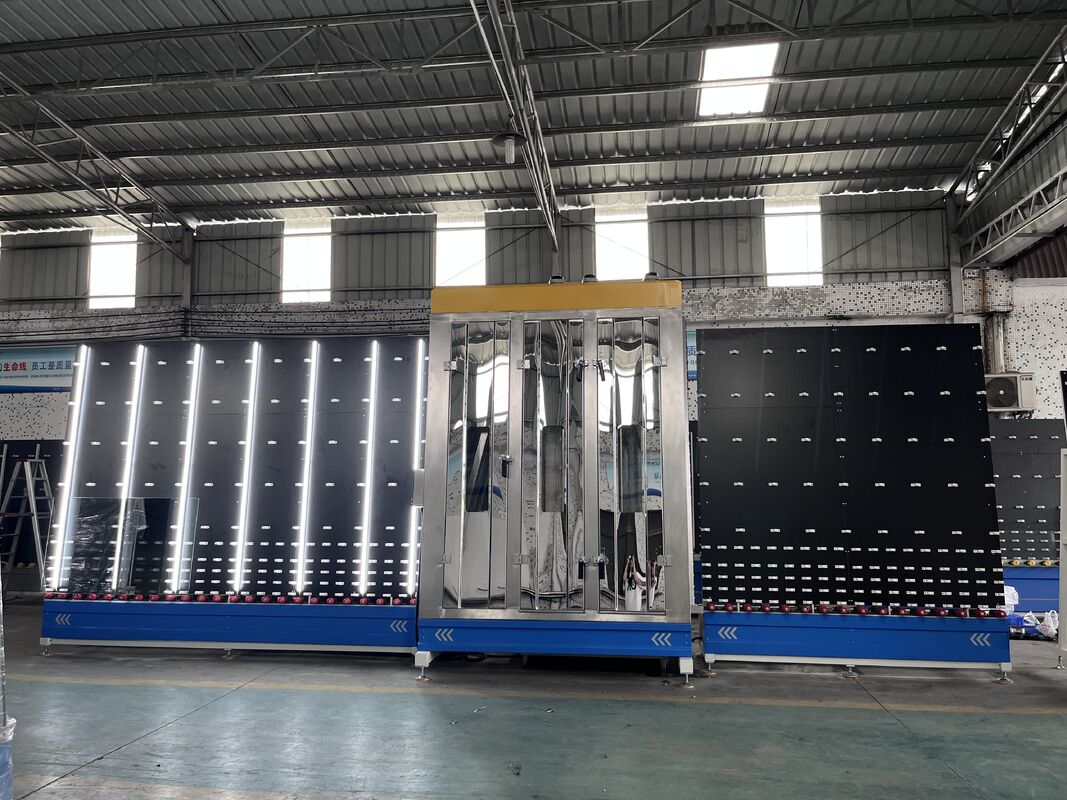

13.5KW Vertical Glass Cleaning Machine 0-8m/Min Transmission Speed RoHS certified
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CE/ISO/RoHS |
| Model Number: | ST-2500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 14800USD-15800USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Vertical Glass Cleaning Machine | Glass Thickness: | 2-19mm |
|---|---|---|---|
| Total Power: | 13.5KW | Height: | 2500mm |
| Width: | 2250mm | Brush Configuration: | 3 Pairs (third Pair With Soft Bristles) |
| Brush Motors: | 6 Motors (Kalida Geared Motors) | ||
| Highlight: | 13.5KW Vertical Glass Cleaning Machine,Vertical Glass Cleaning Machine 8m/Min,RoHS Vertical Glass Cleaning Machine |
||
Product Description
Vertical Glass Washing Machine With 2500mm Max Glass Size Stainless Steel Construction And 0-8m/Min Transmission Speed
Description and Structural Characteristics
This machine adopts world-leading Italian technology with the following key features:
- Cleaning department and water contact parts manufactured entirely from stainless steel sheet metal
- Cleaning box constructed from thickened stainless steel welded as a single unit for high strength and deformation resistance
- Three pairs of brush configuration: six diameter 160mm high-temperature resistant silk brushes + four spray units for clean, fast glass cleaning (4-7m per minute)
- First brush configuration features two hard brushes with cylinder lift mechanism
- Stainless steel spring automatically adjusts for glass thickness of 3-12mm
- All water contact components and screws made from stainless steel, copper, waterproof aluminum, and nylon velvet materials for rust-free long-term use and easy maintenance
- Air-drying box glass bracket uniformly welded from stainless steel to prevent rust and secondary glass contamination
- Two pairs of stainless steel wind knife configuration with powerful wind drying and heating system
- Unique circulating wind glass air drying system provides energy efficiency and low noise operation (winter operation without heating reaches up to 40°C wind temperature)
Technical Parameters and Configurations
Loading and Unloading Part
| Height | 2500mm |
| Width | 2250mm |
| Back Wheel Material | 1.5 inch H45 back wheel/center bracket wheel |
| Roller | 80-65*70-20 polyurethane pallet red |
| Transfer Mode | Bevel gear drive |
Regular glass in/out direction: right in, left out. Direction can be customized to: left in, right out based on customer requirements.
Washing Part
| Brush Configuration | 3 pairs (third pair with soft bristles) |
| Brush Motors | 6 motors (Kalida geared motors) |
| Total Power | Approximately 13.5Kw |
| Drive Roller | Non-marking wear-resistant rubber rollers |
| Transmission Method | Bevel gear |
| Water Contact Parts | Stainless steel |
| Water Pump | 0.45KW + 0.25KW Jinlong high-pressure water pump (2 sets) |
| Brush Roller | Domestic, brush filament: Φ0.3mm nylon filament, LOW-E soft brush filament: Φ0.1mm high temperature wear-resistant filament |
| Sprinkler | Stainless steel pipe with hook and loop fan nozzle sprinkler |
Dry Part
| Air Knife | 2 pairs (1 Straight and 1 Angled Blade) |
| Total Power | Blower 18.5KW |
| Main Drive Roller | Non-marking wear-resistant rubber roller |
| Transmission | Bevel gear drive |
| Side Guards | Stainless steel |
| Other Sheet Metal Parts | Cold plate painting |
| Linear Air Knife | Stainless steel square tube assembled with aluminum alloy material |
| Inclined Air Knife | Self-developed by JinYiFeng |
