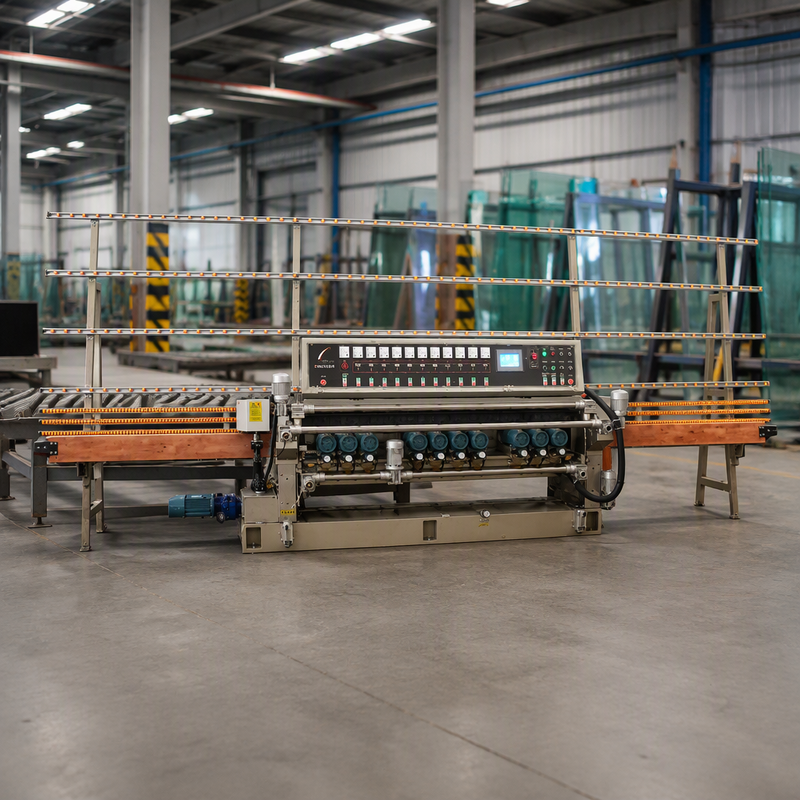

11 Motors Glass Mirror Straight Line Edge Beveling Machine With PLC With Lifting
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FOSHAN STAR |
| Certification: | CE/ISO/RoHS |
| Model Number: | ST371A-D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 25050USD |
| Packaging Details: | Protective film |
| Delivery Time: | 30-50 |
| Payment Terms: | T/T |
| Supply Ability: | 10-15SET/MONTH |
|
Detail Information |
|||
| Name: | Glass Beveling Equipment | Dimension: | 7.1mX1.3mX2.6m |
|---|---|---|---|
| Applicable Materials: | Glass/Marble /Ceramic | Air Pressure Needed: | 0.4-0.8PA |
| Hs Code: | 8464201000 | Working Speed: | 0.6m-6m/min |
| Usage: | Glass Beveling Edge | Oem: | Avalialbe |
| Structure: | Vertical | Min Glassg Size: | 25*25mm |
| Transport Package: | Protective Film | Angle Of Spindle: | 0-90° |
| Weight: | 5000KG | Material Compatibility: | Glass |
| Package: | Protective Film Or Wooden Box | ||
Product Description
This machine is designed for grinding/polishing bevel edge, with bottom edge grinding.
Conveyors use chain transmitting system which consist of anti-friction rubber pads with NO.40# forging steel bone. Timing belt are used in loading and unloading arms to carry glass, which has a stable transportation. Adopt frequency conversion as main conveyor .Grinding wheels are driven by high precision CDQC motors. PLC system control and with lifting function.
The machine structure is advanced and high working precision . Easy to operate and keep maintenance.
-
1.Spindles: 11 heads.
2.Speed: 0.6m-6m/min
3.Max. bevel width: 50mm
4.Min. glass size: 25mmX25mm5.Maximum glass size:2000*3000mm
6.Glass thickness: 3mm-12mm
7.Bevel angle: 0°-25°
8.Total power: 25 KW (380V 50HZ ,according with customer requirement)
9.The beveling machine total dimension: 7.1mX1.3mX2.6m10.Weight: 5000Kg
-
1#:Diamond wheel 150x22x6x10mm (outside half gear )100#
2#:Diamond wheel 150x22x6x10mm (outside half gear )140#
3#:Diamond wheel 150x22x5x10mm 200#
4#:Bottom round wheel 175x22x4R 180#
5#:Resin wheel 150X22X15X10MM 230#
6#:Resin wheel 150X22X15X10 325#
7#:Resin wheel 150X22X15X10MM 500#
8#:Resin wheel 150X22X15X10 580#
9#10#11# wool Polishing wheel 150X105X35MM
1.Adopt PLC control system.Delta brand.
2.Adopt manual filling function lubrication system.
3.All motor adopt famous brand factory:CDQC can not change to red color
4. 4 layer waterproof brush,easy to take replacement.
5.New design for the front rail,it is easy to replace the old screw axle which adjust glass thickness.
- Installation and Setup: Ensure installation on a stable, level surface in a clean environment following user manual instructions
- Operation: Use only for intended glass cutting purposes with appropriate safety gear (gloves, eye protection)
- Maintenance: Regular cleaning of cutting surfaces and components, lubrication of moving parts, and inspection/replacement of cutting wheels
- Troubleshooting: Consult user manual for issues like inaccurate cuts, unusual noises, or malfunctions
- Technical Support: Available guidance on installation, operation, and maintenance
- Warranty and Service: Limited warranty covering manufacturing defects with authorized service centers for repairs and replacement parts
