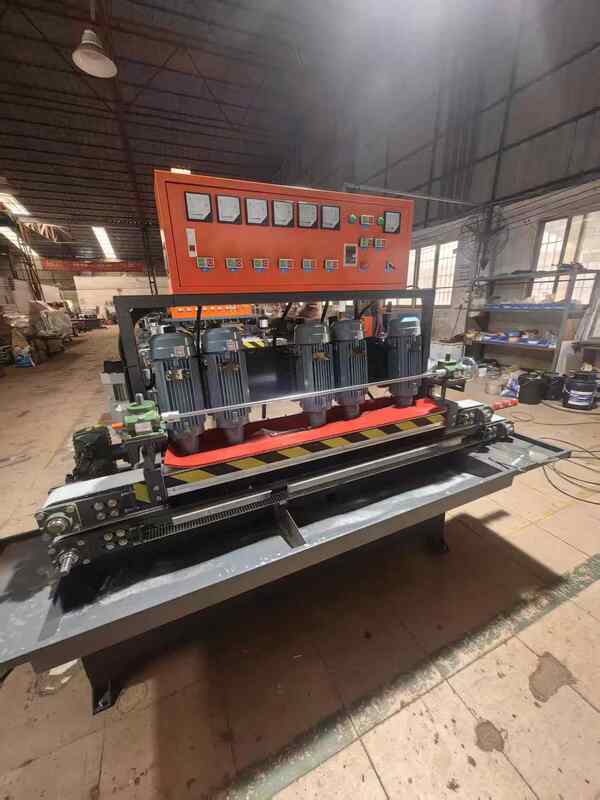

6 Motors Horizontal Glass Bevel Edging Machine 3-20mm Thickness for Small Size Glass Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST-WM6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 7500-8200USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Glass Thickness: | 3-20mm | Min Glass Size: | 40*40mm |
|---|---|---|---|
| Power: | 15kw | Working Speed: | 0-2.5m/ Min |
| Machine Size: | 2300×1100×1800mm | Machine Weight: | 1000kg |
| Chamfer Angle: | 3-15° | Bevel Width: | 3-15mm |
Product Description
This horizontal beveling edging machine is mainly use for small size of glass beveling jobs.
-
High Yield Rate: The finished product rate can reach 98% (except for human operation and original raw material factors).
-
Stable Processing Quality: Uniform edge brightness, no edge burst, no corner drop (fine-polished glass subject to the sealing sample provided by the manufacturer).
-
High Precision & Adaptability: Handles small glass down to 40×40mm, with thickness coverage of 3–20mm.
-
Highly Customizable: Chamfer angle, voltage, and grinding head type & quantity can all be adjusted per customer request.
-
Stepless Speed Regulation: Feeding speed 0–2.5 m/min continuously adjustable to suit different processes.
-
Solid Build Quality: Steel plate welded beam with precision grinding, built-in steel wire conveyor belt, stainless steel water tank, and Chint electric components — branded, durable and reliable.
| Model | ST-WM6 |
|---|---|
| Glass Thickness | 3-20mm |
| Min glass Size | 40*40mm |
| Power | 15KW |
| Working speed | 0-2.5m/ min |
| Outline Dimensions | 2300*1100*1800mm |
| Chamfer angle | 3-15° |
| Bevel width | 3-15mm |
| Weight | 1000kg |
