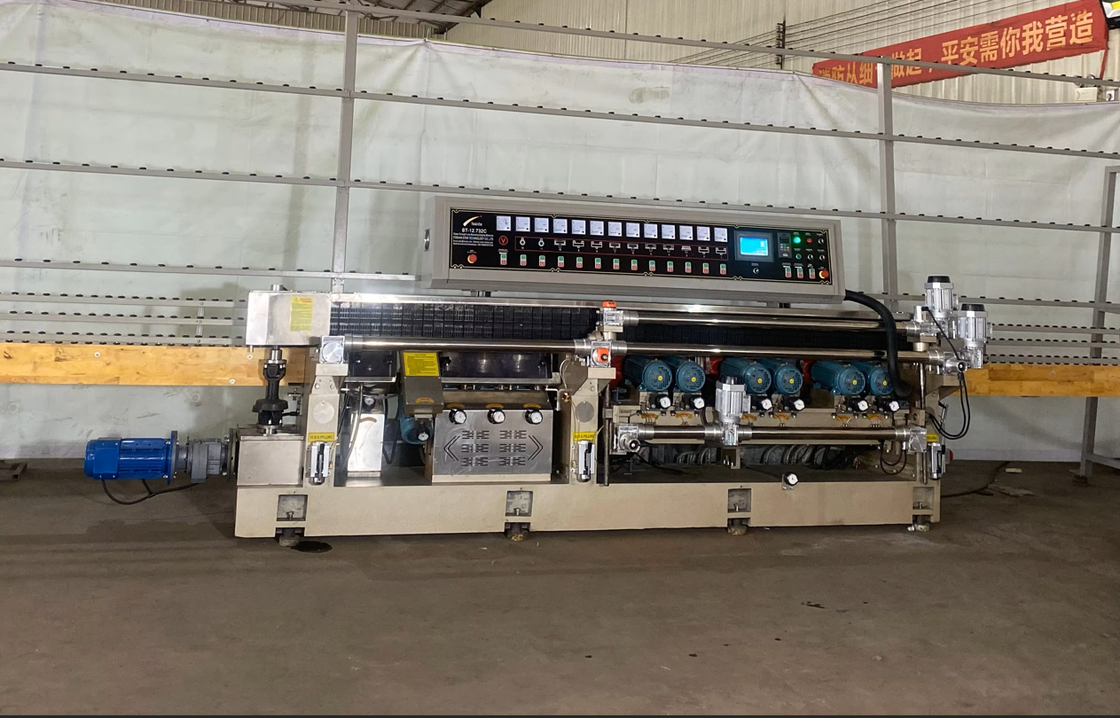

12 Spindle Glass Beveling Equipment, RoHS Glass Beveling Equipment, 15m/min Straight Line Edging Machine, Glass Edging Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FOSHAN STAR |
| Certification: | CE/ISO/RoHS |
| Model Number: | ST12.732C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 25500USD |
| Packaging Details: | Protective film |
| Delivery Time: | 30-50 |
| Payment Terms: | T/T |
| Supply Ability: | 10-15SET/MONTH |
|
Detail Information |
|||
| Name: | Glass Beveling Equipment | Dimension: | 7700mmX1210mmX2540mm |
|---|---|---|---|
| Applicable Materials: | Glass/Marble /Ceramic | Air Pressure Needed: | 0.4-0.8PA |
| Hs Code: | 8464201000 | Working Speed: | 0-15m/min |
| Usage: | Polishing Glass Edge | Oem: | Avalialbe |
| Structure: | Vertical | Min Seaming Size: | 350x850mm |
| Transport Package: | Protective Film | Angle Of Spindle: | 0-90° |
| Weight: | 4000KG | Using: | Manual |
| Material Compatibility: | Glass | Package: | Protective Film Or Wooden Box |
| Highlight: | 12 Spindle Glass Beveling Equipment,RoHS Glass Beveling Equipment,15m/min Straight Line Edging Machine |
||
Product Description
This machine is designed for grinding glass bevel edge,and also has the function of polishing machine. 7 wheels are used for front beveling 3-25 degree , ,3 wheels are use for bottom , 2 wheels for bottom 45 degree edging.Conveyors use big chain transmitting system, and anti-friction rubber pads with NO.40# forging sheet steel bone. This structure guarantee glass is stably moved. The working precision is high.
Timing belt transfer glass, which has a stable transportation.
Grinding wheels are driven by high precision CDQC motors.
This machine is easy to operate and have a durable function.
- 1.Spindles:12heads.
2.Weight:5500kg
3.Range of speed:0.6m-4m/min
4.Min. glass size:80mmX80mm
5.Glass thickness:4mm～12mm
6.Max. bevel width:35mm
7.Maximum glass size:2000*3000mm
8.Bevel angle:3°～25°
9.Total power:28KW (380V 50HZ ,or customer required)
10.Base dimension:7700mmX1210mmX2540mm -
|
No. |
Item (For reference) |
Edge |
|
1 |
diamond wheel for beveling edge |
Frond beveling 3-25 degree |
|
2 |
Resin wheel for beveling edge |
|
|
3 |
Diamond wheel round edge for beveling edge |
|
|
4 |
resin wheel for beveling edge |
|
|
5 |
ISO Polish wheel for beveling edge |
|
|
6 |
Wool polish wheel for beveling edge |
|
|
7 |
Wool polish wheel for beveling edge |
|
|
8 |
Resin wheel for bottom edge |
Bottom edge |
|
9 |
ISO polish wheel fro bottom edge |
|
|
10 |
Fine polish wheel fro bottom edge |
|
|
11 |
Resin wheel for backside 45 degree |
Front face chamfer |
|
12 |
Resin wheel for backside 45 degree |
Back face chamfer |
1.Adopt PLC control system.
2.Adopt manual filling function lubrication system.
3.All motor adopt famous brand factory:CDQC
4.4 layer waterproof brush, easy to take replacement.
5. New design for the front rail, it is easy to replace the old screw axle which adjust glass thickness.
- Installation and Setup: Ensure installation on a stable, level surface in a clean environment following user manual instructions
- Operation: Use only for intended glass cutting purposes with appropriate safety gear (gloves, eye protection)
- Maintenance: Regular cleaning of cutting surfaces and components, lubrication of moving parts, and inspection/replacement of cutting wheels
- Troubleshooting: Consult user manual for issues like inaccurate cuts, unusual noises, or malfunctions
- Technical Support: Available guidance on installation, operation, and maintenance
- Warranty and Service: Limited warranty covering manufacturing defects with authorized service centers for repairs and replacement parts
