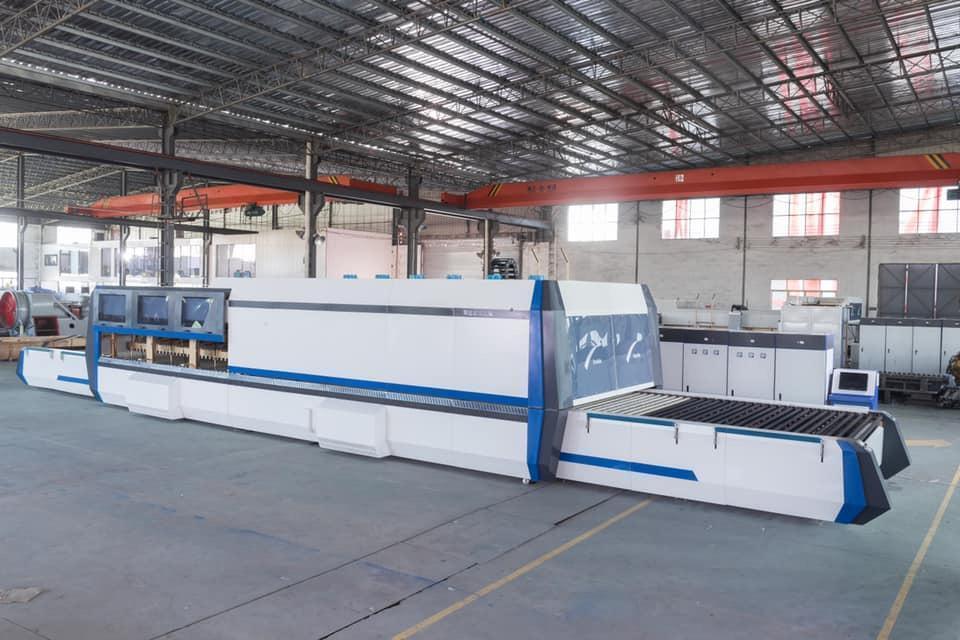

Energy Saving Small Glass Tempering Furnace 4-19mm Glass Toughening Plant

Small Size Glass Tempering Furnace  Energy Saving  Capacity Radiation Model for Manufacturing Plant

Product Description:

1. Description of the Equipment

1.1 Brief introduction

The furnace includes loading table, heating,. quenching and cooling section, unloading table, and control system. It is used to manufacture flat  tempered glass for furniture, home appliance, architecture glass, etc.

1.2 Loading Table

The loading table is composed of rubber-covered rollers and Kevlar rope. When the glass is put onto the rollers, the glass will be conveyed automatically to the entrance of the furnace where it will be in ready-to-enter-furnace position and the rollers stop moving. It will send the glass into the furnace once the computer control system gives enter command.

1.3 Heating Section

The structure of the heating section is of a double-layer box type covered with thermos-insulation material. Inside the section there is a conveyor system with high temperature resistant ceramic rollers. Heating elements and radiation plates are installed on the upper layer and lower layer of this section. The upper layer radiation plate is special heat resistant and anti-corrosion cast material. The heating element is of an integrated part with spiral type resistance erected on ceramic part, it’s easy to replace. When the glass is going to enter the furnace, the front door of the heating section opens the rolls of the loading table and heating section move at the same time. When the glass is in the furnace, the front door will close and the glass on the rollers will be moved back and forth at the distance calculated by the controlling system automatically, so that the glass will be heated evenly. The upper section can be lifted up for maintenance. The heating elements are in matrix layout.

1.4 Passing Section

Passing technology is used to produce 4-5mm. On the basis of use of passing type technique, it

can save the installation power and reduce the energy consumption. It’s no need to open the

bigger blower after the passing section. It can almost save 60% energy of the quenching.

1.5 Flat Quenching/Cooling Section

The alloy sections and steel sheet is cold riveted to avoid deformation of heat welding, ensure effectively the entire flatness at air face of quench. Rational nozzle aperture and arrangement of air hole guarantee the glass even cooling. The upper and lower quenches are combined with linkage and individual drives, which can actually control the rational height for air nozzle of quenches. Matched with balance control of upper and lower air amount, the top and bottom of the glasses can reach to optimum heat radiation, so as to ensure the flatness of tempering glass.

1.6 Unloading Table

The unloading table is the similar as the loading table. When the glass is transported to the end of the conveyor, the rollers will stop, and the glass can be taken away by hand, or by robot, if there is available at the customer’s factory.

1.7 Control System

Features:

• Product Name: Glass Tempering Furnace
• Suitable for All Kinds Of Glass
• Type: Glass Toughened Machine
• Equipped with OMRON PLC from Japan for reliable control
• Includes Glass Tempering Machinery Accessories for optimal performance
• Durable Glass Toughening Furnace design ensuring high efficiency
• Warranty: 1 YEAR
• HS Code: 8475291900

Technical Parameters:

Applications:

The FOSHAN STAR Glass Tempering Furnace, model STG-A2030-4T, is a state-of-the-art piece of equipment designed for efficient and high-quality glass tempering processes. Originating from China and certified with CE standards, this new furnace offers advanced features that cater to a wide range of industrial applications. With a supply ability of 350KW and equipped with OMRON PLC from Japan, the STG-A2030-4T ensures precise control and consistent performance, making it an essential asset in modern glass processing facilities.

This Glass Toughening Furnace is particularly suited for tempering Low E coated glass, which is widely used in energy-efficient windows and architectural projects. The furnace’s advanced technology enables it to handle various glass types, including laminated and tempered glass, making it highly versatile. The protective film packaging ensures the equipment arrives in pristine condition, ready for installation and operation, it is accessible to businesses of different scales.

The FOSHAN STAR STG-A2030-4T is ideal for manufacturers specializing in architectural glass, automotive glass, and household appliance glass. It is frequently used in scenarios requiring enhanced glass strength and safety, such as in the production of bulletproof windows, tempered glass doors, and durable glass panels for buildings. This furnace is also a critical component in the production line of glass tempering machinery accessories, ensuring that all accessories meet stringent quality standards.

Customization:

Common tempering furnace sizes are: 1200*2500mm, 1500*2500mm, 1800*3000mm, 2000*3000mm, 2440*3660mm, 2440*4220mm, 2000*5000mm, 2400*5000mm, 3000*5000mm, etc

Support and Services:

Our Glass Tempering Furnace product comes with comprehensive technical support and services to ensure optimal performance and longevity. We provide detailed installation guidance, user manuals, and operational training to help you get started quickly and safely. Our expert technical team is available to assist with troubleshooting, maintenance tips, and performance optimization. Regular maintenance services and spare parts availability are also offered to minimize downtime and extend the furnace’s service life. Additionally, we offer upgrade options and customization services tailored to meet specific production requirements. Trust our dedicated support to keep your glass tempering furnace running efficiently and effectively.

Packing and Shipping:

Our Glass Tempering Furnace is carefully packaged to ensure maximum protection during transit. Each unit is securely wrapped with high-quality foam and plastic covers to prevent any damage from shocks, vibrations, or moisture. The furnace is then placed inside a sturdy wooden crate that is reinforced with steel straps for added stability and safety.

For shipping, we offer multiple options including sea freight, air freight, and land transportation, tailored to meet your delivery requirements and destination. The packaging is designed to comply with international shipping standards, ensuring the product arrives in perfect condition.

Before dispatch, each furnace undergoes a thorough inspection and testing process to guarantee it meets all quality and safety standards. We also provide detailed handling and installation instructions within the package to facilitate smooth setup upon arrival.

Our logistics team coordinates closely with shipping partners to track the shipment in real-time and provide timely updates. This comprehensive packaging and shipping approach ensures that your Glass Tempering Furnace is delivered safely, on time, and ready for immediate use.
