Compact Glass Tempering Equipment 4mm-19mm Glass Toughening Furnace
Product Details:
| Brand Name: | FoShan Star |
| Model Number: | ST-AQ1830-4T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $109,400-$112,500/SET |
| Packaging Details: | Protective fim |
| Delivery Time: | 90 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Glass Tempering Equipment | Max Loading Area: | 1800*3000mm |
|---|---|---|---|
| Min Glass Size: | 200*300mm | Glass Thickness Range: | 4-19mm |
| Power Supplier Mode: | 380V+50HZ | ||
| Highlight: | Compact Glass Tempering Equipment,4mm Glass Toughening Furnace,19mm Glass Toughening Furnace |
||
Product Description

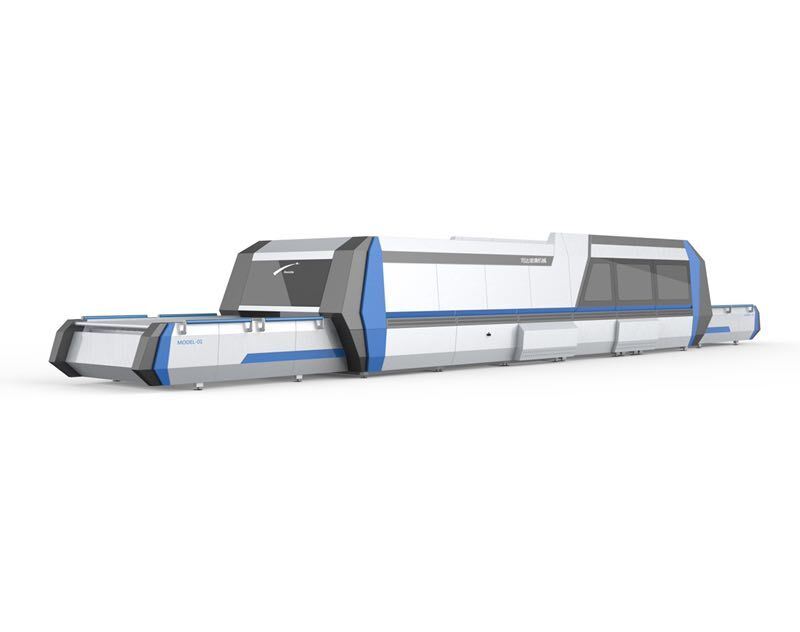

Foshan Star STG-AQ1830-4T Flat Glass Tempering Furnace (Top Forced Air Convection Type)
The Foshan Star STG-AQ1830-4T is a high-performance flat glass tempering furnace featuring advanced top forced air convection technology. Designed for superior thermal efficiency, this furnace ensures uniform heating and exceptional optical quality for flat glass processing. With a maximum loading area of 1800x3000mm and the capability to handle glass thicknesses ranging from 4mm to 19mm, it offers robust performance for demanding architectural and industrial glass production requirements.
Key Features & Performance
- Top Forced Air Convection: Utilizes a specialized top convection system to ensure rapid and even heat distribution, minimizing optical distortion and improving tempering quality for coated or low-e glass.
- Large Processing Capacity: Supports a maximum loading area of 1800x3000mm, allowing for high-volume production of large-format glass panels.
- Versatile Thickness Range: Capable of processing glass thicknesses from 4mm to 19mm, providing flexibility for various application needs.
- Compact Minimum Size: Can effectively temper glass as small as 200x300mm, maximizing material utilization and reducing waste.
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | STG-AQ1830-4T | Max Loading Area | 1800 x 3000 mm |
| Min Glass Size | 200 x 300 mm | Glass Thickness | 4 - 19 mm |
| Power Supply | 380V / 50Hz | Convection Type | Top Forced Air |
Glass Sample Results
