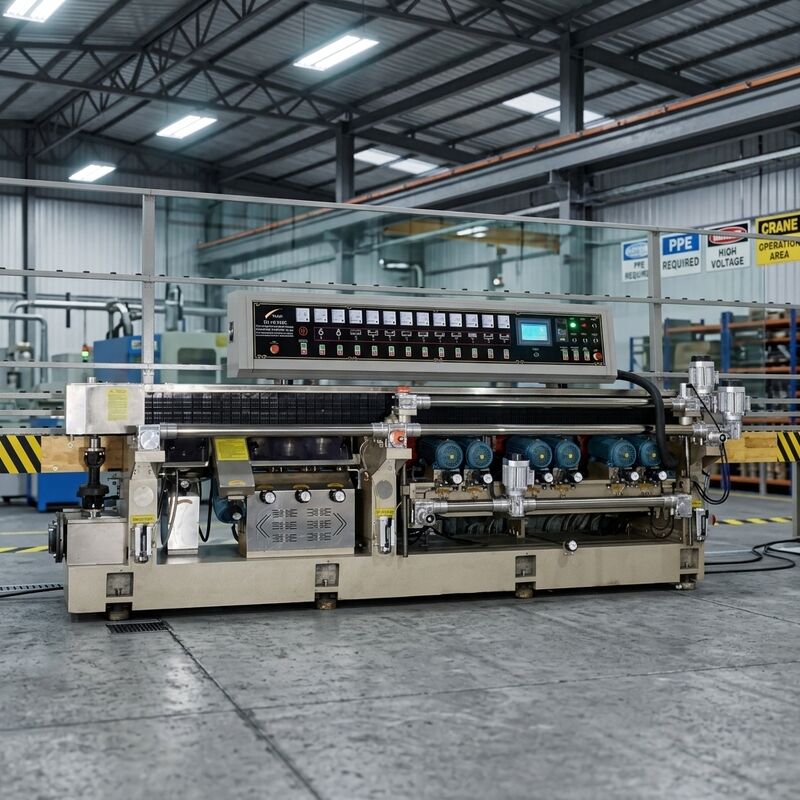

12 Spindle Glass Beveling Polishing Machine 0.6m-4m/Min 28KW Total Power
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST12.732C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 25300-26000USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 -45 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Glass Beveling Polishing Machine | Min Glass Size: | 80*80mm |
|---|---|---|---|
| Glass Thickness: | 4-12mm | Weight: | 5500KG |
| Total Dimension: | 7700*1210*2540mm | Max Glass Size: | 2000*3000mm |
| Bevel Angle: | 3°-25° | Total Power: | 28KW |
| Max Bevel Width: | 35mm | ||
| Highlight: | 12 Spindle Glass Beveling Polishing Machine,Glass Beveling Polishing Machine 4m/min,Glass Beveling Polishing Machine 28KW |
||
Product Description
12-Spindle PLC Glass Beveling and Polishing Machine
Product Overview
This machine is developed for glass bevel‑edge grinding and polishing. It is equipped with 7 wheels for front beveling at 3‑25°, 3 wheels for bottom grinding and another 2 wheels for 45° bottom edging.
Product Advantages
- It adopts a heavy‑duty chain conveyor fitted with wear‑resistant rubber pads and No.40 forged steel sheets, while timing belts assist glass feeding to ensure steady material transportation. All grinding wheels are driven by high‑precision CDQC motors for consistent grinding performance.
- Boasting high machining accuracy, the equipment features user‑friendly operation and a robust, long‑lasting structure.
Technical Specifications
| Spindles | 12 |
|---|---|
| Working speed | 0.6m-4m/min |
| Max. bevel width | 35mm |
| Min glass size | 80×80mm |
| Max glass size | 2000×3000mm |
| Glass thickness | 4-12mm |
| Bevel angle | 3° - 25° |
| Total power | 28 KW |
| Total dimension | 7700×1210×2540mm |
| Weight | 5500 KG |
Product Services
Machine Images
