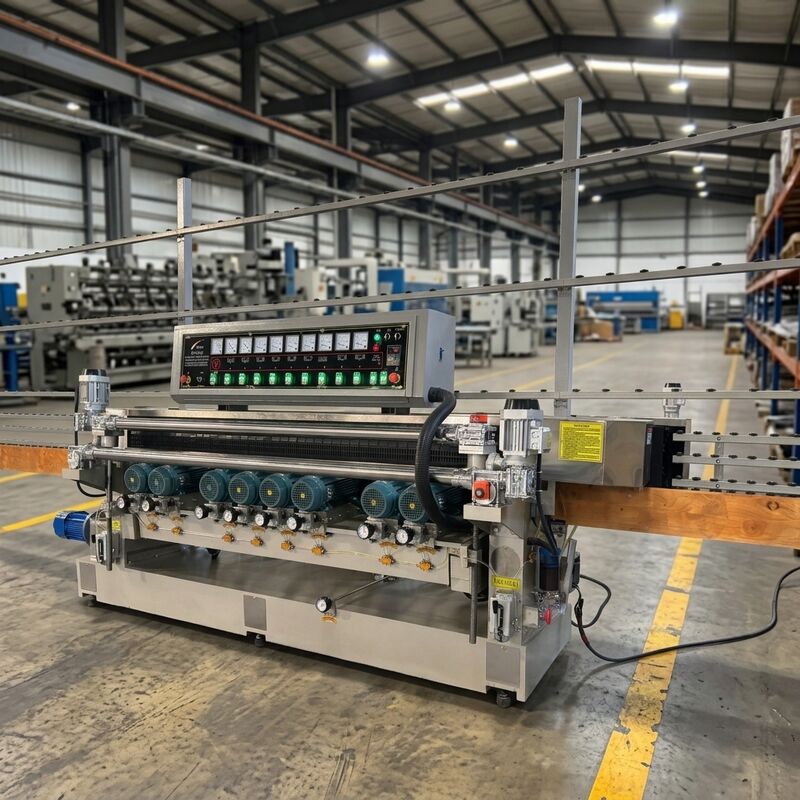

9 Motors Glass Beveling Machine 6680*1300*1900mm For Glass Bevel Edge Grinding / Polishing
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST 261 E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 18000-19000USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 -45 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Glass Beveling Machine | Glass Thickness: | 4-12mm |
|---|---|---|---|
| Max Glass Size: | 3000*3000mm | Min Glass Size: | 80*80mm |
| Bevel Angle: | 0°-25° | Total Dimension: | 6680*1300*1900mm |
| Weight: | 4000KG | ||
| Highlight: | 9 Motors Glass Beveling Machine,Glass Beveling Machine 6680*1300*1900mm,Glass Bevel Grinding Machine |
||
Product Description
9 Motors Glass Beveling Machine
This machine is specially developed for glass bevel-edge grinding and polishing, and it is also capable of bottom-edge grinding.
Product Advantages
- Its conveyor system adopts a chain drive structure fitted with wear-resistant rubber pads and No.40 forged steel frames. Timing belts are installed on the loading and unloading arms for stable glass transportation.
- The main conveyor is equipped with frequency-variable speed control. Each grinding spindle is independently driven by a high-precision CDQC motor, which provides sufficient torque, smooth operation and stable power output to ensure consistent grinding quality and high-precision edge finishing.
- Featuring an advanced mechanical structure, the machine delivers high processing precision. It also boasts simple operation and convenient daily maintenance.
Technical Specifications
| Spindles | 9 |
|---|---|
| Working speed | 0.6m-6m/min |
| Max. bevel width | 30mm |
| Min glass size | 80*80mm |
| Max glass size | 3000*3000mm |
| Glass thickness | 4-12mm |
| Bevel angle | 0° - 25° |
| Total power | 21 KW |
| Total dimension | 6680*1300*1900mm |
| Weight | 4000KG |
