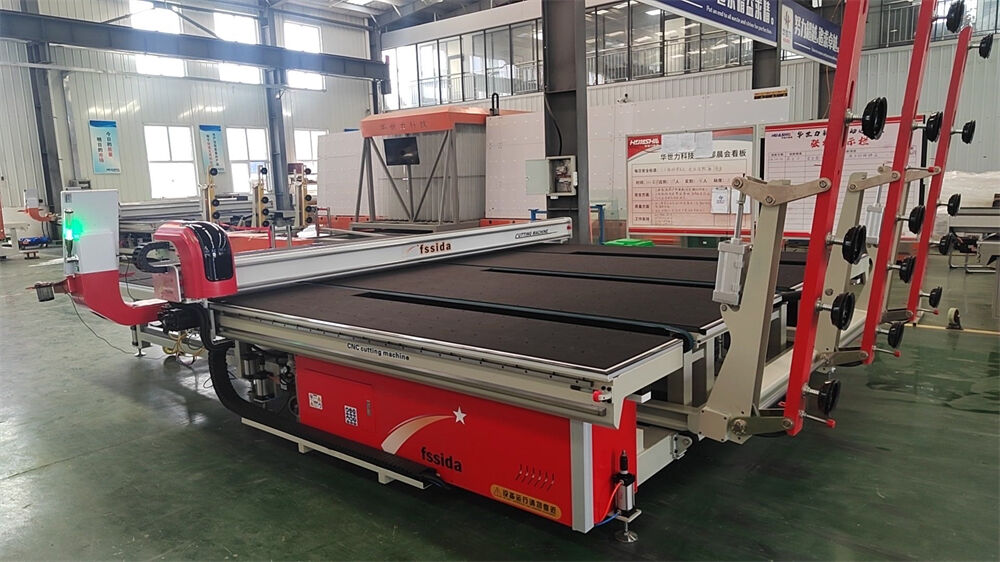

CNC All In One Glass Cutting Machine 0-200M/Min High Speed Cutting / Automatic Braking

This CNC All-in-One Glass Cutting Machine integrates high-speed cutting and automatic breaking functions into a single, streamlined production line. Designed for maximum efficiency, it features a robust bridge structure and an intelligent control system to handle large-format glass processing with exceptional speed and precision.

Engineered for rapid throughput, the machine utilizes a high-performance drive system capable of significant acceleration and cutting speeds.

• Rapid Cutting Speed: Both the cutting head and the cutting bridge operate at speeds ranging from 0 to 200 m/min, which can be precisely set to match production requirements.
• High Acceleration: The system boasts a cutting acceleration of ≥8 m/s², ensuring minimal idle time between cuts and maximizing overall productivity.
• Superior Accuracy: Designed for exactitude, the machine maintains a cutting accuracy of ≤±0.3mm, guaranteeing high-quality edges and precise dimensions for every piece.

The machine features a spacious layout that includes a dedicated breaking table, optimizing the workflow from loading to finished product.

• Large Processing Capacity: It is capable of processing maximum glass sizes up to 3660mm x 2440mm, making it ideal for architectural and large-scale industrial glazing.
• Versatile Thickness Range: The system is optimized for glass thicknesses between 3mm and 18mm. (Note: Thicknesses lower than 3mm or higher than 12mm must be communicated in advance for configuration).
• Integrated Breaking Table: The line includes an adjustable breaking table (approx. 3800mm x 2600mm) positioned ergonomically at a countertop height of 880±30mm, facilitating easy unloading and manual breaking operations.
