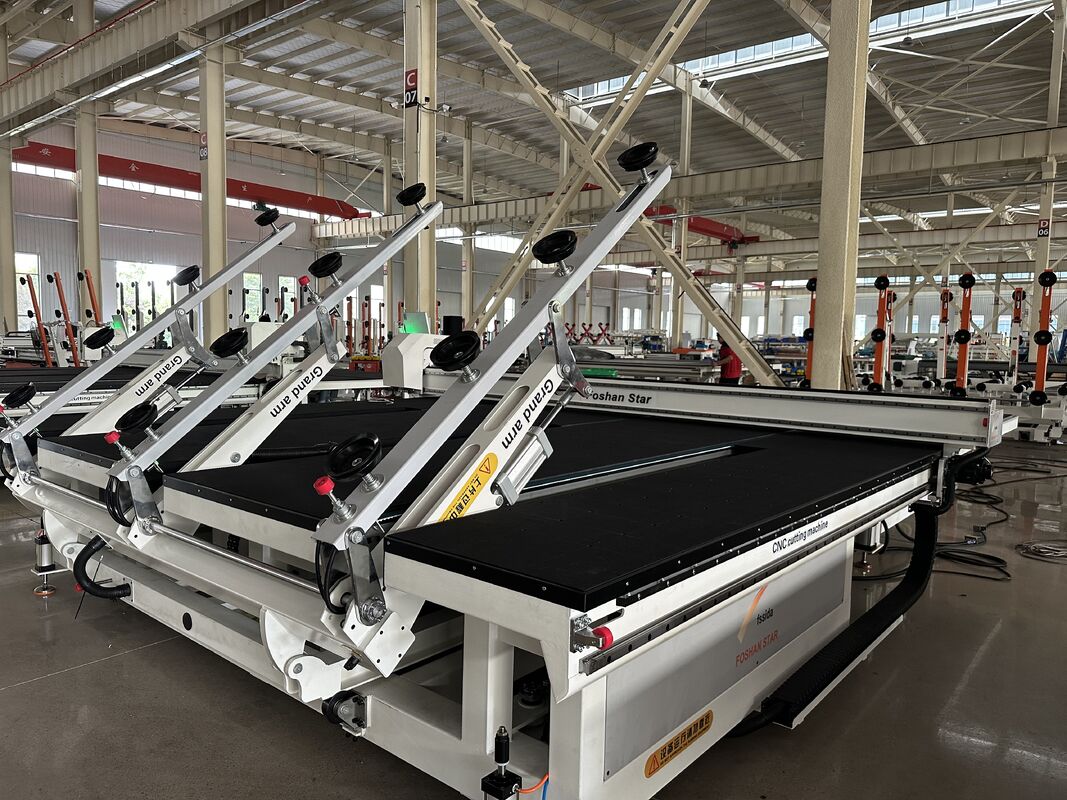

High Precision Glass Cutting Line 220V Horizontal Glass Mirror Cutting Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Foshan star |
| Certification: | CE |
| Model Number: | ST3826 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $15000-$28000/set |
| Packaging Details: | protective fim |
| Delivery Time: | 30 woring days |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 20Set each month |
|
Detail Information |
|||
| Name: | Glass Cutting Machine | Structure: | Horizontal |
|---|---|---|---|
| Voltage: | AC 220V 50-60Hz | Glass Size: | 3800*2600mm |
| Glass Thickness: | 2~6mm | Xy Axis Travel: | 1000mm*900mm |
| Control Accuracy: | +/- 0.02mm | ||
| Highlight: | High Precision Glass Cutting Line,Glass Cutting Line 220V,Horizontal Glass Mirror Cutting Machine |
||
Product Description
High Precision Glass Cutting Machine For Precise Glass Cutting
Product Description
Foshan Star Intelligent Glass Loading and Cutting Machine consists of two systems: loading and cutting machine and air-floating breaking table. It integrates automatic loading, automatic optimization layout, automatic labeling, automatic cutting, automatic transportation and air-floating breaking table, and realizes automatic operation of glass cutting process. The machine is equipped with power walking wheels, which can be controlled by remote control in the working area for easy shifting. The machine can realize straight and special-shaped cutting of glass, and is suitable for architectural glass, furniture glass, craft glass, decorative glass, cabinet glass, glass mirror, etc.
Product Features
High precision and efficiency
It can accurately control the position and angle of the cutting line, quickly complete a large number of cutting tasks, and ensure the consistency and stability of the cutting line.
High degree of automation
The equipment integrates functions such as fully automatic wafer loading, air flotation conveying, automatic edge positioning, automatic oil injection, and wafer breaking. This not only significantly reduces the labor intensity of workers, but also reduces the errors caused by human operation, making it suitable for large-scale industrial production.
Strong processing capability
capable of handling thicker glass (such as 8mm, 12mm, or even thicker), and supporting cutting of straight lines, rectangles, and various irregular contours. The cutting head can usually rotate 360 degrees to adapt to complex shapes.
Product Specifications
| Item | 3826 Model | 3829 Model |
|---|---|---|
| Total floor space (including the breaking table, the height does not include the unfolded height of the breaking table) | Size: 5700*4860*1600mm | Size: 6230*4860*1600mm |
| Cutting table dimensions | 3100*4860*1630mm | 3330*4860*1630mm |
| Breaking table dimensions | 3800*2600*880mm (adjustable) | 3800*2900*880mm (adjustable) |
| Processing glass size | MAX. 3660*2440mm | MAX. 3660*2800mm |
| Countertop height | 880±30mm (foot adjustable) | |
| Loading Depth | About 700 mm | |
| Power Requirements | Three fires and one ground wire 380V (special voltages should be communicated in advance) | |
| Installed power | About 15kW | |
| Compressed air | 0.6-0.8Mpa, 0.6-0.8 Mpa exhaust volume 0.6-1m³/min | |
| Glass thickness | 3～18mm, Lower than 3mm or higher than 12mm (excluding 12mm) must be informed in advance | |
| Cutting head speed | 0-200M/min (can be set) | |
| Cutting bridge speed | 0-200M/min (can be set) | |
| Cutting acceleration | ≥8m/s² | |
| Cutting knife holder | The cutter head can rotate 360 degrees (precisely cut straight lines and shapes) | |
| Cutting accuracy | ≤±0.3mm/s | |
