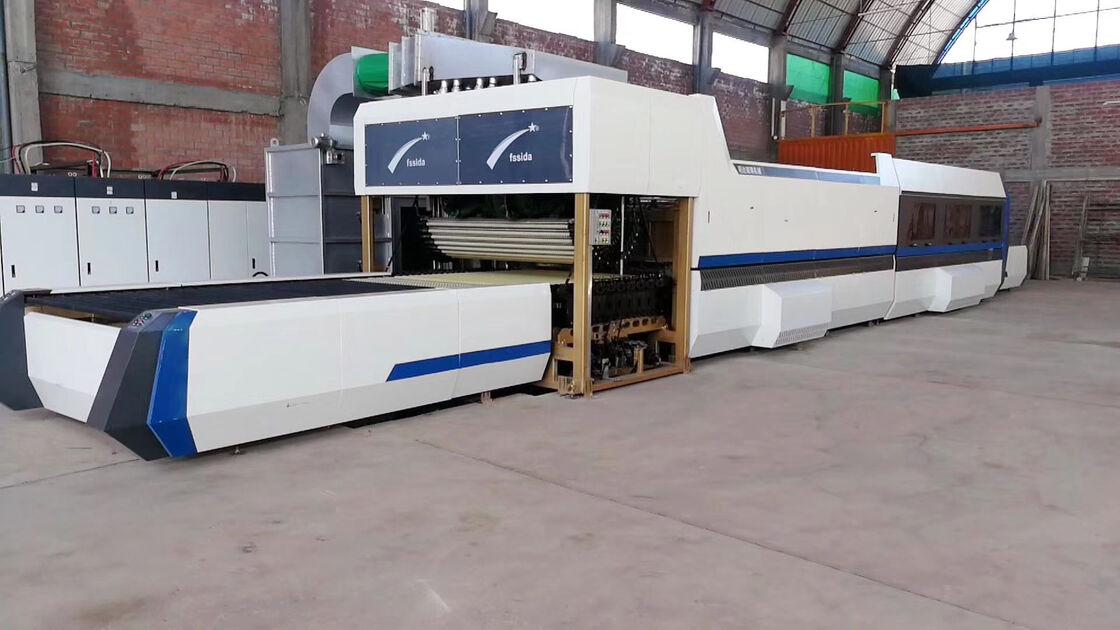

The All in One Solution for Flat and Bent Tempered Glass Production

The furnace includes loading table,top and bottom full forced air convection heating section , cross bending section, quenching and cooling section, unloading table, and control system. It is used to manufacture flat and bending tempered glass for furniture, home appliance, architecture glass, car side windows etc.

1. Dual Function — Flat & Bent Glass in One Machine

• Combined flat & bent glass tempering in a single furnace, ideal for furniture, home appliances, architectural glass, and automotive side windows

• Mould-free bending: upper and lower rollers deform to form a curved clearance that acts as a "virtual mould" — saves mould cost and changeover time

• Tempering during forming: bending section, tempering section, and forming section are integrated into one unit, boosting process efficiency

2. Advanced Technology, Superior Quality

• Top & bottom full forced convection heating: compressed air sprays hot air onto soft-coated Low-E glass

  surfaces — capable of processing both soft & hard coated Low-E glass; switchable to pure radiation mode for clear float glass

• Hydraulic high-precision bending adjustment system (11KW, 21Mpa): high arc accuracy; wide radius & thickness range (R≥900mm for 5-6mm; R≥2000mm for 12-19mm)

• Excellent flatness & even quenching: alloy sections and steel sheet are cold-riveted to avoid heat-welding deformation; upper/lower quench units feature linkage + individual drives for precise nozzle height and balanced air volume control

• Uniform heating: heating elements in matrix layout; glass oscillates automatically inside the furnace for even heat distribution

3. Energy-Efficient & High Productivity

• Low energy consumption: ≤4kWh/m² for flat (5mm); ≤4.8kWh/m² for bent (5mm)

• High output: 18–22 loads/hour for 4mm glass

• Finished product rate ≥98%, compliant with ANSI Z97.1-2004

• Frequency-inverter-controlled blowers for energy savings

4. Premium Components, Reliable Build

• World-renowned brands: SKF blower bearings, Vesovivs ceramic rollers, DuPont Kevlar rope, Omron PLC, Schneider electric components, Airtac (Taiwan) cylinders, Shougang heating wire

• High-temperature-resistant ceramic rollers; integrated spiral heating elements are easy to replace

• Liftable upper furnace body for convenient maintenance

5. Complete After-Sales Support

• 1-year warranty (non-worn parts) + lifetime technical support

• Installation (~15 days), commissioning (~10 days), and operator training (~10 days) included

• Full mechanical & electrical

  spare parts list provided with the machine (ceramic rollers, heating wires, thermocouples, relays, etc.)

• Tinted glass
• Patterned glass
• Coated glasses (Including most kinds of hard coated glass, parts of special soft coated glass, which withstands about temperature 700 ℃)
• Silk screen printing glass
• Clear float glass
• Low-e glass

• --Loading table
• --Heating section(furnace) with forced convection system
• --Quenching and Cooling section
• --Unloading table
• --Blower system
• --Long-distance trouble maintenance
