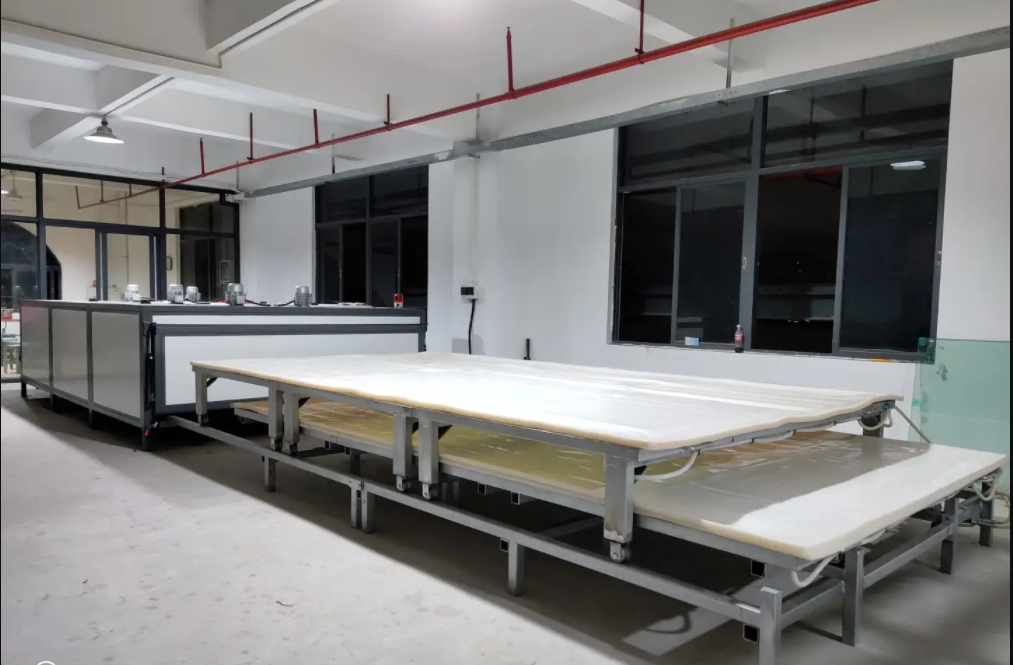

Horizontal Electric Heating Glass Laminating Oven With Over Temperature Protection
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FOSHAN STAR |
| Certification: | CE/ISO/RoHS |
| Model Number: | STJ-2436-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 16500USD |
| Packaging Details: | Protective film |
| Delivery Time: | 30-50 |
| Payment Terms: | T/T |
| Supply Ability: | 10-18SET/MONTH |
|
Detail Information |
|||
| Name: | Glass Laminating Oven | Furnace Type: | Batch |
|---|---|---|---|
| Heating Method: | Electric Heating | Structure: | Horizontal |
| Specification: | 4200*3100*1650mm | Weight: | 2200kg |
| Electric Power: | 3-Phase AC 220-440V / 45kw | ||
| Highlight: | Horizontal Glass Laminating Oven,Electric Heating Glass Laminating Oven,Horizontal Glass Lamination Machine |
||
Product Description
The Glass Laminating Furnace is an advanced, highly efficient industrial oven specifically designed for glass laminate manufacturing. This essential production line component ensures quality and durability in laminated glass products through precise heating, bonding, and laminating processes.
Featuring robust construction with a substantial 2200kg weight for operational stability, this furnace handles demanding production requirements in large-scale manufacturing facilities. The sophisticated PLC control system with user-friendly touch screen interface enables precise parameter adjustment and automated processes for consistent results.
This machine including:
l Heating Chamber (including heater, air circulation, temperature measurement device)
l Glass bed cart
l Glass bed lifter(automatically)
l Circulation fan
l 3 vacuum bags
l Touch screen
l PLC automatic control
| Model No | ST-2436 |
|---|---|
| Electric Power | 3-Phase AC 220-440V / 45kw |
| Structure | Horizontal |
| Control System | PLC Control with Touch Screen Interface |
| Heating Method | Electric Heating |
| Furnace Type | Batch |
| Mechanical Test Report | Provided |
| Grinding Head Number | No |
| Weight | 2200kg |
|
Electric Power |
(3-phase AC 220-440V)/45KW |
|
Processing Glass Size |
Max:2440*3660mm / Min: 100*100mm |
|
Max bending deep(mm): 400mm |
|
|
Max glass thickness in each silicone bag: 36mm |
|
|
Efficiency |
Forming cycle: 75-120 Min/cycle |
|
Max production capacity in one cycle: 40m² |
|
|
Production capacity in 8 hours: 160m² (if 80% full furnace loaded) |
|
|
Operation platform |
3 layers |
|
Working Temperature |
90-150℃ |
|
Floor Space |
4200*3100*1650mm |
|
Net Weight |
About 2200kg |
The furnace incorporates comprehensive safety systems including over-temperature protection to prevent exceeding safe thresholds and an emergency stop mechanism for immediate shutdown during unexpected issues, ensuring operator safety and equipment protection.
This high-performance Glass Lamination Equipment Furnace is widely used in industries requiring strong, durable laminated glass including:
- This high-performance Glass Lamination Equipment Furnace is widely used in industries requiring strong, durable laminated glass including:
Architectural glazing (building windows, glass doors)
Safety glass production (protective glass barriers)
Decorative glass panels
FOSHAN STAR offers customized solutions for the Glass Lamination Furnace model STJ-2436-3, tailored to meet specific glass lamination processing needs. Comprehensive technical support, maintenance services, staff training, and replacement parts are available to ensure optimal performance and longevity.
