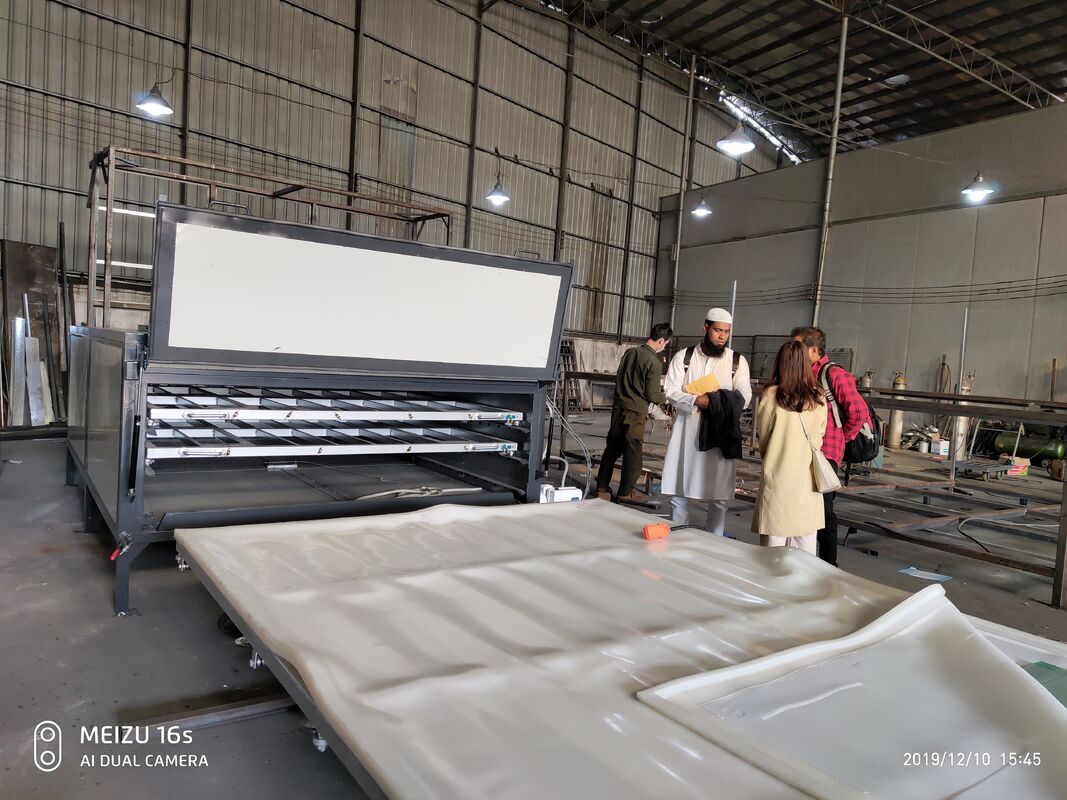

Small Size 1530 EVA Laminating Furnace Two Layers With PLC Automatic Control
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | STJ-1530 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 9500USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Electric Power: | 3-phase AC 220-440V/40KW | Max Glass Processing Size: | 1500*3000mm |
|---|---|---|---|
| Operation Platform: | 2 Layers | Exterior Dimension: | 6200*2000*1450mm |
| Net Weight: | 2500kg | Max Glass Thickness In Each Silicone Bag: | 36mm |
| Name: | Glass Laminating Furnace | ||
| Highlight: | 1530 EVA Laminating Furnace,Small Size EVA Laminating Furnace,Glass Laminating Line Two Layers |
||
Product Description
Small Size 1530 EVA Laminating Furnace with Two Layers and PLC Automatic Control for Glass Laminating
Small Size 1530 EVA Laminating Furnace
Product Overview
This compact EVA laminating furnace produces EVA film laminated glass using a dual-layer design with two silica vacuum bags for efficient, high-volume processing. PLC automatic control and a touch screen enable precise, user-friendly operation, while the furnace handles glass up to 1500 x 3000 mm with a 400 mm bending depth and 36 mm thickness per bag. Each cycle forms up to 40 m² of laminated glass, delivering 100–125 m² per 8-hour shift.
Machine Components
- Heating Chamber (including heater, air circulation, temperature measurement device)
- Glass bed cart
- Two layers glass bed
- Circulation fan
- 2 vacuum bags
- Touch screen
- PLC automatic control
Supply List
1. Heating box (including the tray on the top of the machine) : 1 set
2. PLC cabinet : 1 set
3. Automatic lifting table : 1 set
4. Work trays : 2 sets
5. Silicon bag : 2 sets
6. Electric apparatus (PLC and touch screen) : 1 set
7. Vacuum pump : 1 set
8. Vacuum buffer tank : 1 set
9. Vacuum silicon tube : 2 sets
10. Numerical vacuum meter : 1 set
11. Industrial fan : 2 sets
12. Install tools : 1 set
2. PLC cabinet : 1 set
3. Automatic lifting table : 1 set
4. Work trays : 2 sets
5. Silicon bag : 2 sets
6. Electric apparatus (PLC and touch screen) : 1 set
7. Vacuum pump : 1 set
8. Vacuum buffer tank : 1 set
9. Vacuum silicon tube : 2 sets
10. Numerical vacuum meter : 1 set
11. Industrial fan : 2 sets
12. Install tools : 1 set
Technical Specifications
| Electric Power | 3-phase AC 220-440V / 40KW |
| Processing Glass Size | Max: 1500*3000mm / Min: 100*100mm |
| Max Bending Deep | 400mm |
| Max Glass Thickness in Each Silicone Bag | 36mm |
| Efficiency | Forming cycle: 75-120 Min/cycle |
| Max Production Capacity in One Cycle | 40m² |
| Production Capacity in 8 Hours | 100-125m² |
| Operation Platform | 2 layers |
| Working Temperature | 90-150℃ |
| Exterior Dimension | 6200*2000*1450mm |
| Floor Space | 6200*2000mm |
| Net Weight | 2500kg |
Product service
Machine Images
