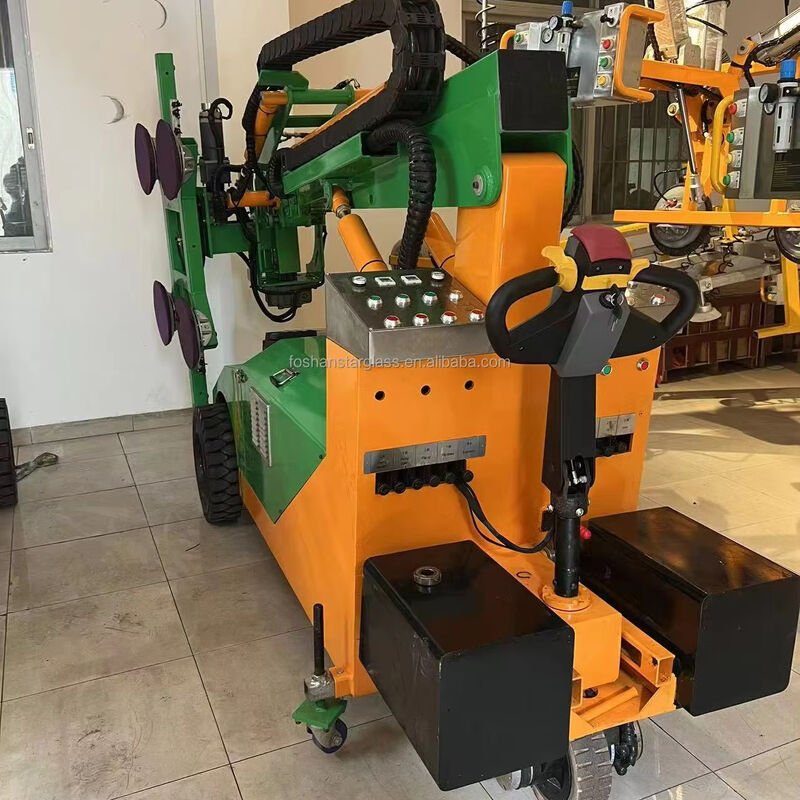

4-25mm Glass Lifter Machine For Glass Loading / Unloading / Handling Glass
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 12800-14800USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Glass Lifter | Safe Load Capacity: | 500kg |
|---|---|---|---|
| Number And Size Of Pads: | 8 Pads / [250mm] Diameter | Product Weight: | 1300kg |
| Max. Glass Size: | 4000mm* 2400mm | Min. Glass Size: | 1200mm* 950mm |
| Glass Thickness: | 4-25mm | ||
| Highlight: | 25mm Glass Lifter,Loading Glass Lifter,Handling Glass Lifting Machine |
||
Product Description
Glass Lifter for Glass Loading and Unloading
Product Overview
This electric-hydraulic glass lifter is designed for loading, unloading, and handling glass and other flat panels. An electric vacuum gripping system, hydraulic lift, electric drive, and safety protection system work together to grip, lift, move, and position panels up to 4000 × 2400 mm with a 500 kg safe load capacity. It handles glass, marble, plastic boards, metal sheets, and coated panels, and can be configured in various models to suit different panel sizes.
Performance Features
- Hydraulic tilt 180° upwards and downwards with stopping at any position
- Electric motorized rotation 360° with stopping at any position
- Electric head slew left & right 90° with stopping at any position
- Hydraulic lift up and down up to 4000mm
- Hydraulic extend the lifting arm to 1000mm
- Electric motor car, control by steering wheel
- Recharge when electricity power less than 30%
Suitable Materials
Material properties: Gastight/non-porous, smooth surface
- Flat glass
- Building glass
- Various kinds of processing glass
- Special glass
Technical Specifications
| Parameter | Value |
|---|---|
| Code | SH-CAR-500 |
| Safe Load Capacity | 500kg |
| Number and Size of Pads | 8 pads / [250mm] diameter |
| Pads Description | Sucker, abrasion resistant, long-time heat resistant |
| Product Weight | 1300kg |
| Product Size | 3300mm(L) × 900mm(W) × 2300mm(H) |
| Max. Glass Size | 4000mm(L) × 2400mm(W) × 4-25mm(T) |
| Min. Glass Size | 1200mm(L) × 950mm(W) × 4-25mm(T) |
| Lifting Material | Glass, marble, plastic boards, metal sheet, coated boards and other plates |
| Battery Specs | 200Ah × 4pcs |
| Working Power | 24V DC |
| Battery Charge | 220V 50/60Hz |
| Noise Level | Less than 80dB |
Safety Protection System
When vacuum reaches to the specified pressure, vacuum pump automatically stops to achieve energy saving; when vacuum pressure is insufficient, it automatically restarts to achieve vacuum compensation.
