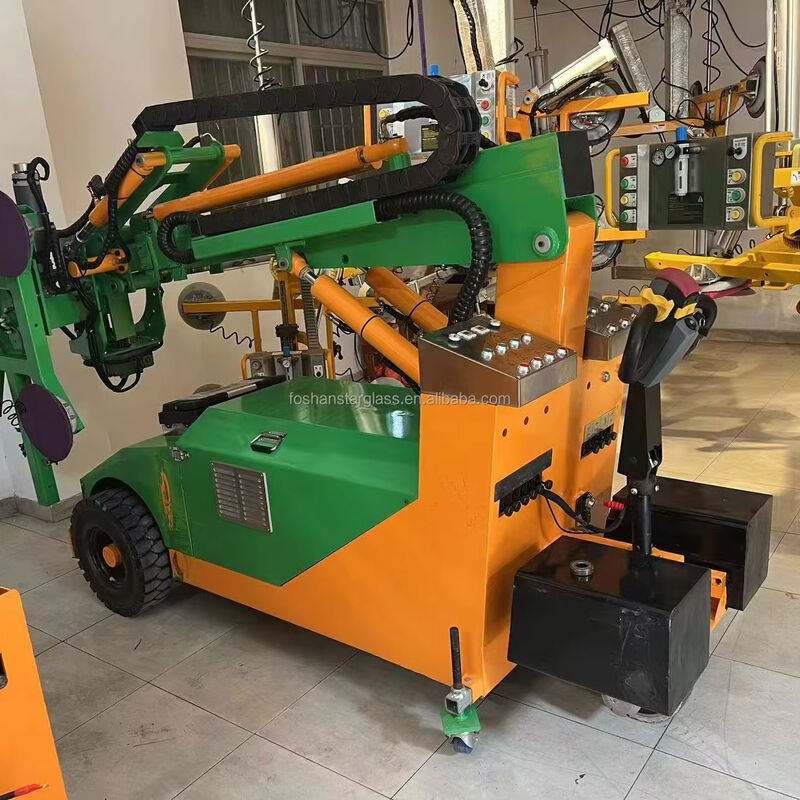

Hydraulic / Electric Vacuum Suction Cup Glass Lifter 500kg Load Capacity
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FSSIDA |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | US $ 12800-US $14800 |
| Delivery Time: | 45 day |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Product Name: | Glass Lifter | Color: | Picture Shown Or Customized |
|---|---|---|---|
| Feature: | Safety Durable | After-sales Service Provided: | Online Support |
| Certification: | CB,CE, RoHS, ISO9001 | MOQ: | 1 Set |
| Delivery Time: | Within 15-30 Days | Service: | 7*24 Hours Service |
| Highlight: | Electric Suction Cup Glass Lifter,Electric Vacuum Glass Lifter,Glass Lifter 500kg Load Capacity |
||
Product Description
Electric Vacuum Suction Cup Elevator, Safe Load-bearing Capacity Of 500 Kilograms
Product Description
The lifter is designed for electric and hydraulic operation. The entire system consists of electric vacuum gripping device, hydraulic performance devices, electric driving system and safety protection system, to achieve gripping, lifting, handling, moving and placing glass to specific location by serial of process setting. The lifter can be assembled to various kinds of models to fit for different size of glass.
Product Specifications
| Safe Load Capacity | 500kg |
| Number and Size of Pads | 8 pads/ [250mm]diameter |
| Pads Description | Sucker, abrasion resistant, long-time heat resistant |
| Product Weight | 1300kg |
| Product size | 3300mm(L)* 900mm(W) * 2300mm(H) |
| Max.Glass Size | 4000mm(L)*2400mm(W)*4-25mm(T) |
| Min. Glass Size | 1200mm(L) *950mm(W)*4-25mm(T) |
| Lifting Material | Glass, marble, plastic boards, metal sheet, coated boards and other plates. |
| Battery Specs. | 200Ah *4pcs |
| Working Power | 24V DC |
| Batter Charge | 220V 50/60hz |
| Suitable for lifting | Material properties: Gastight/ non-porous, smooth surface Example: flat glass, building glass, various kinds of processing glass and special glass. |
| Safety protection | When vacuum reaches to the specified pressure,vacuum pump automatically stops to achieve energy saving; when vacuum pressure is insufficient, it automatically restarts to achieve vacuum compensation. |
Product Service
Product Image
