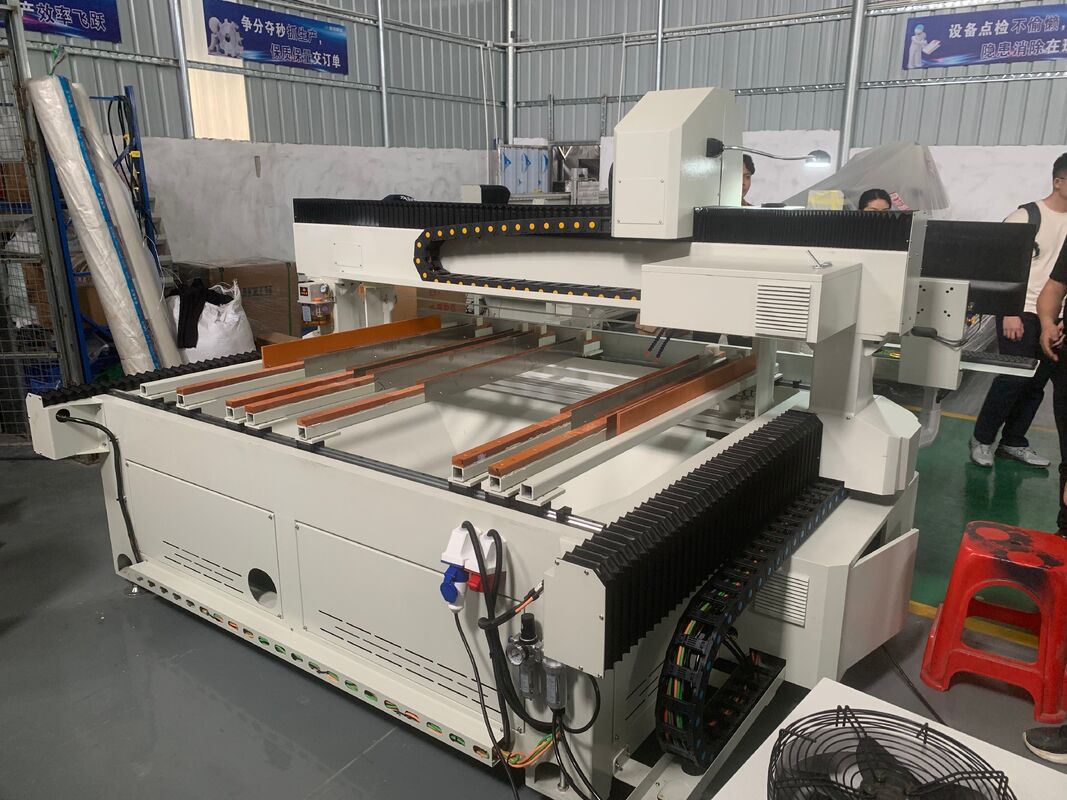

120W Laser Glass Sanding Machine 3800*2250*1800mm For Mirror Grinding / Drilling
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FSSIDA |
| Certification: | CE |
| Model Number: | 1325 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $26000-$28000USD/SET |
| Packaging Details: | protective fim |
| Delivery Time: | 45 days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Name: | Laser Sandblasting Machine | External Dimension: | 3800*2250*1800mm |
|---|---|---|---|
| Weight Of Machine: | 1500 KGS | Max. Processing Size: | 1200*2400mm |
| Laser Power: | 120W Pro+ | Laser Wavelength: | 1064nm |
| Laser Carving Speed: | ≤12000mm/s | ||
| Highlight: | 120W Laser Glass Sanding Machine,Glass Sanding Machine 3800*2250*1800mm,Laser Sand Blaster Machine |
||
Product Description
120W laser glass sanding machine for mirror grinding and drilling
Product Description
This machine is designed for mirror sandblasting, mirror coating removal, and drilling applications. The large format intelligent mirror laser sanding machine replaces traditional etching processes, eliminating the need for film coating, engraving, or conventional sandblasting.
Intelligent mirror laser sanding represents a new environmentally friendly and energy-saving deep processing technology that can remove protective paint from intelligent mirrors and painted glass in a single operation, achieving perfect sanding effects without damaging the mirror or glass surfaces.
Product Features
- Fast engraving speed with environmentally friendly operation
- Pollution-free processing with low operating costs
- No consumables or vulnerable parts required
- No need for grinding tools - direct processing from drawings
- Maximum sanding size of 1.2 × 2.4 meters (custom sizes available)
Product Specifications
| Model | STJG-1325 |
|---|---|
| External Dimension | 3800 × 2250 × 1800mm |
| Weight of Machine | Approximately 1500 KGS |
| Max. Processing Size | 1200 × 2400mm |
| Min. Processing Size | 80 × 80mm |
| Power Supply | Customized 220V |
| Total Power of Machine | 5.5 KW |
| Laser Power | 120W Pro+ |
| Packing Size | 4000 × 2250 × 1800mm |
| Mechanical Accuracy | ≤ ±0.15mm |
| Laser Accuracy | ≤ ±0.002mm |
| Laser Carving Line Speed | ≤ 12000mm/s |
| Laser Wavelength | 1064nm |
| Maximum Hole Diameter | 100mm |
Product Service
Product Image
Want to Know more details about this product
