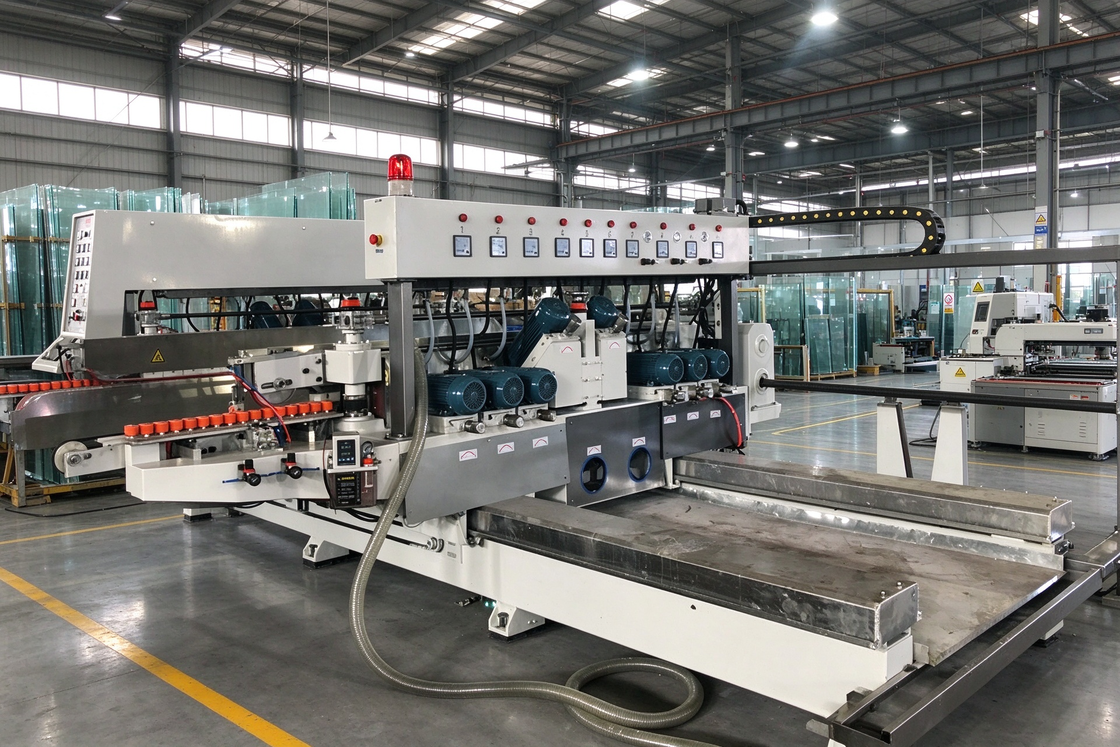

SB ‑ 2425 Glass Double Edging Machine 24 Spindles 4‑26mm Glass Thickness 45° Chamfering
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | SB-2425 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 45000-48000USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Max Glass Size: | 2500mm | Glass Thickness: | 4-26mm |
|---|---|---|---|
| Max Flat Edging Level: | 3mm | Max Arrising Width: | 2.5mm |
| Arrise Angle: | 45° | Spindles: | 24 (each Side Has 12 Polishing Wheel） |
| Installed Power: | 50KW | Weight: | About 4000kg |
Product Description
SB-2425 Double Edging Machine
Machine Overview
The SB-2425 double-edging machine simultaneously performs flat grinding and 45° chamfering on two parallel edges of the glass. It completes rough grinding, fine grinding, and chamfer polishing in a single pass, making it suitable for the mass processing of glass edges for architectural, furniture, and bathroom applications.
Product Advantages
- 24 spindles (12 wheels per side), process 2 glass edges at one time with 45° arris
- Process glass thickness: 4‑26 mm, max glass width up to 2500 mm
- PLC & touch‑screen control, auto production counting & real‑time speed display
- Pneumatic‑assisted polishing for excellent glass surface gloss
- Taiwan linear guide rails + dual‑step glass positioning for high diagonal accuracy
- Auto lubrication system, premium electric components for low maintenance
- Adjustable working speed 0.5‑11 m/min for various glass processing demands
Technical Specifications
| Spindles | 24 (each side has 12 polishing wheel) |
|---|---|
| Max. glass width | 2500mm |
| Min. glass size: | 200x200mm |
| Glass thickness: | 4-26mm |
| Maximum flat edging level: | 3mm |
| Maximum arrising width: | 2.5mm |
| Arrise angle: | 45° |
| Working speed | 0.5-11.0m/min |
| Installed power | 50kw |
| Compressor air consumption | 1 It/min |
| Pressure | 6kg/square cm |
| Overall dimension | About 4400x4400x1800mm |
| Weight | About 4000kg |
Product Service
Machine Photos
