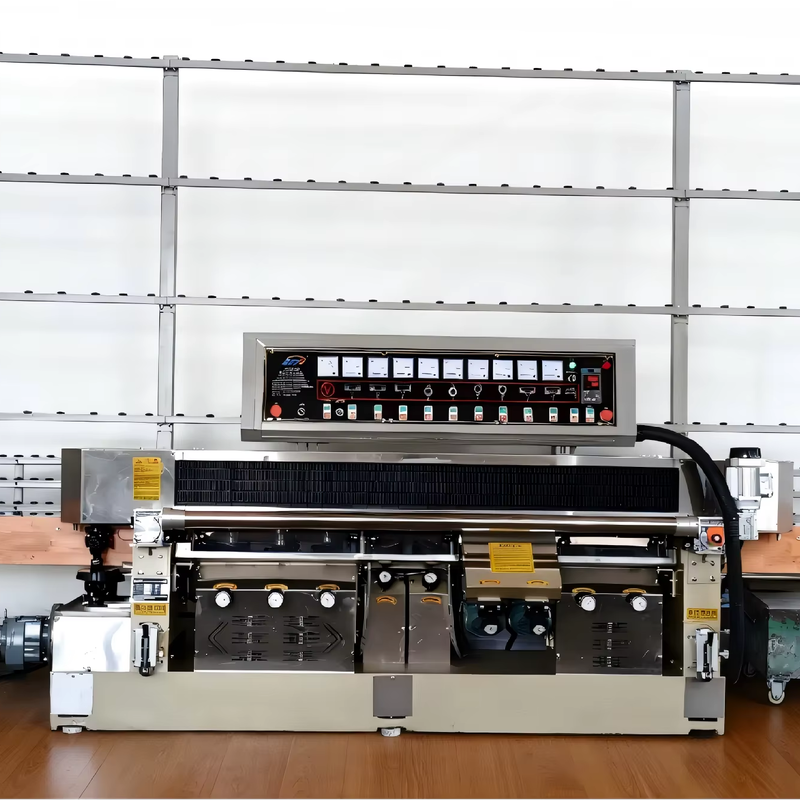

Nine Motor Glass Edging Machine 0-15m/Min For Polishing Glass Edge
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FOSHAN STAR |
| Certification: | CE/ISO/RoHS |
| Model Number: | ST9325E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 10500USD |
| Packaging Details: | Protective film |
| Delivery Time: | 30-50 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Dimension: | 7500*1000*2600 Mm | Applicable Materials: | Glass/Marble /Ceramic |
|---|---|---|---|
| Min Seaming Size: | 350x850mm | Air Pressure Needed: | 0.4-0.8PA |
| Hs Code: | 8464201000 | Working Speed: | 0-15m/min |
| Usage: | Polishing Glass Edge | Oem: | Avalialbe |
| Structure: | Vertical | Transport Package: | Protective Film |
| Angle Of Spindle: | 0-90° | Weight: | 3000KG |
| Using: | Manual | Name: | Glass Edging Machine |
| Material Compatibility: | Glass | Package: | Protective Film Or Wooden Box |
| Highlight: | Nine Motor Glass Edging Machine,Glass Edging Machine 15m/min,Polishing Glass Edger Machine |
||
Product Description
FOSHAN STAR Glass Edging Machine with Nine Motor Straight Line Grinding System, Frequency Conversion Speed Control, and Vertical Adjustable Input Conveyor for Glass Edge Polishing
Machine Introduce
The machine is glass 9 motors straight line edging machine,, used for grinding and polishing the bottom edge and edge of flat glass. A special telescopic platen is used to grind glass of different thicknesses. The machine is easy to operate and stable. The front rails can be moved in parallel to adjust the thickness of the glass for easy and precise operation. The chamfering grinding wheel adopts pallet, and there is no vibration during grinding. The main transmission is frequency conversion speed regulation.The special part is the input conveyor rack to be vertically adjustable up and down ,the function is to adjust the grinding amount by rotate the rotation handle ,and the grind amount digital display.
Technical Parameters
- Wheels
- 9
- working speed
- 0.6-6.0m/min
- Max. arris width
- 2.5mm
- Min. glass size
- 80*80mm
- Glass thickness
- 3-20mm
- Total power
- 18.75kw
- Total dimension
- 6.6x1.0x2.6m
- Total weight
- 2800kg
Grinding wheel introduction
| 1#:Diamond wheel 150*12*8*8 100# |
2#:Diamond wheel 150*12*8*8 240# |
3#:Resin wheel 130*12*15*10 240# |
| 4#:Polishing wheel 130*60*35 |
5#:Resin wheel 130*12*15*12 240# |
6#:Polishing wheel 130*60*35 |
| 7#:Resin wheel 150*12*15*10 240# |
8#:Polishing wheel 150*70*40 |
9#:Polishing wheel 150*70*35 |
Product advantage:
- Adopt frequency aviator as main transmit system,high or low speed all smooth and no vibration, low noise.
- Digital display glass thickness.
- Adopt manual filling function lubrication system , easy to maintain the skateboards which for support grinding motors.
- The last motor for polishing flat bottom glass, adopt double speed system motor.
- 4 layer waterproof brush, easy to replace.
- Advanced front beam configuration.Exclusive design of straight pallets for easier replacement and maintenance.
- Front and rear rails: high quality cast iron, not easily deformed.
- Main machine body, supporting pillar, all adopting high quality iron casting.
- Dovetail grinding head plate: high quality cast iron, professional processing, no gap, stable and vibration-free during work.
- Waterproof brush: high elasticity, high temperature resistant.
- The pads and chain are adopted famous brand in China. The front and rear splints are all branded “lobster”, and the chain adopts the “Donghua” brand in Hangzhou.
Technical Support & Services
- Installation and Setup: Ensure installation on a stable, level surface in a clean environment following user manual instructions
- Operation: Use only for intended glass cutting purposes with appropriate safety gear (gloves, eye protection)
- Maintenance: Regular cleaning of cutting surfaces and components, lubrication of moving parts, and inspection/replacement of cutting wheels
- Troubleshooting: Consult user manual for issues like inaccurate cuts, unusual noises, or malfunctions
- Technical Support: Available guidance on installation, operation, and maintenance
- Warranty and Service: Limited warranty covering manufacturing defects with authorized service centers for repairs and replacement parts
Frequently Asked Questions
Q:What is the MOQ?
A:1 SET
Q:What is the best price?
A:The price depends on machine size, model, and specifications.
Q:What is the delivery time?
A:Usually within 30-60 days, depending on machine model and voltage requirements.
Q:What about warranty?
A:We supply one year warranty period with lifetime technical support and service.
Q:How is your after-sale service?
A:Online remote service, on-site engineer installation and training, and 24/7 support.
Q:Where do you sell? Do you have experience in these countries?
A:We export to America, Europe, Middle East, Asia, and more with 20 years of export experience and certifications including CB, CE, RO, HS, and ISO9001.
