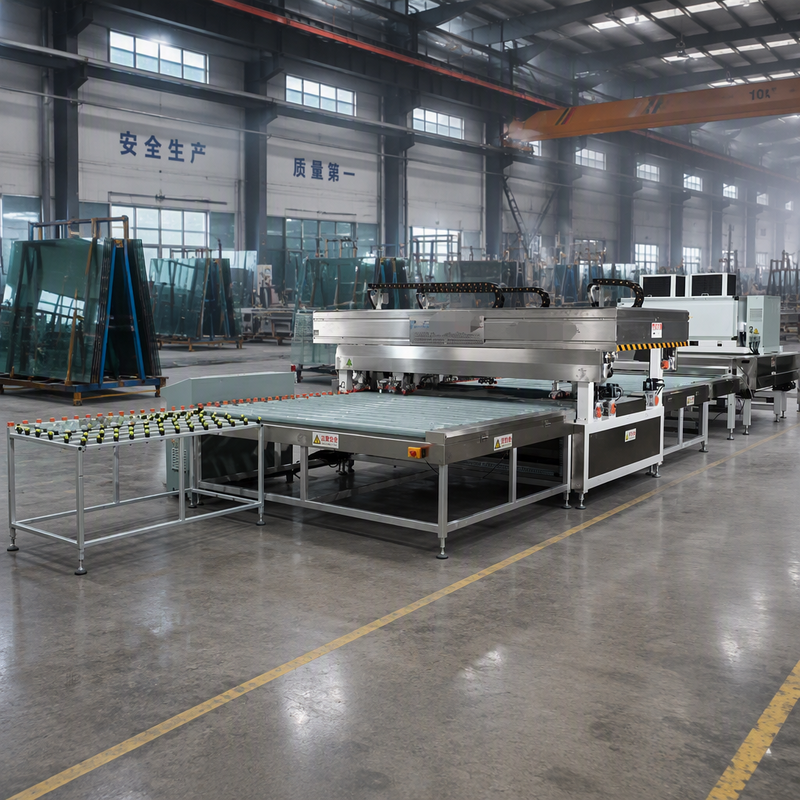

FOSHAN STAR 2000MM Automatic Four-Sided Glass Grinding and Polishing Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FOSHAN STAR |
| Certification: | CE/ISO/RoHS |
| Model Number: | ST-SBM2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 34300USD |
| Packaging Details: | Protective film |
| Delivery Time: | 30-50 |
| Payment Terms: | T/T |
| Supply Ability: | 15-30SET/MONTH |
|
Detail Information |
|||
| Name: | Glass Four Sides Grinding Machine | Dimension: | 6600* 3500* 2000MM |
|---|---|---|---|
| Hs Code: | 8464201000 | Usage: | Polishing Glass Edge |
| OEM: | Avalialbe | Min Glass Size: | 300*650MM |
| Glass Thickness: | 4-10MM | Max Glass Size: | 2000*3600MM |
| Total Power: | 18KW | Working Table Size: | 850-900MM |
| Working Speed: | 25-35 | Chamfer Width Dimension: | 1-2mm |
| Voltage: | 380V/50Hz/3Phase | ||
Product Description
This line is Suitable for insulating building glass, doors and windows glass, white glass and Low-E glass high-speed processing. Adopts rubber rod roller to transmission and fix glass, Can effectively avoid glass scratches.
The machine adopts automatic interface operation system, PLC control. intelligent fast response servo system, intelligent computer control high-speed, precision transmission glass transmission system; high-speed grinding processing structure, processing speed up to 35 m / min, it can automatic accurate glass size and positioning. all different size of the glass can be continuous loading,without manual adjustment of the whole position.accurate product diagonal size, control system with my diagnostic function, can master a variety of operating information.
The production line including one four sides of the glass straight line grinding machine and glass washing and drying machine. It can be one-time grinding and cleaning, the structure is simple and reliable, high production efficiency, energy saving. This line usually used for doors and windows glass, insulating glass, architectural glass, white glass and Low-E glass .
|
NO |
ITEM |
PARAMETE |
|
1 |
Max Glass size |
2000*3600MM |
|
2 |
Min Glass size |
300*650MM |
|
3 |
Glass thickness |
4-10MM |
|
4 |
Total power |
18KW |
|
5 |
Working table size |
850-900MM |
|
6 |
Machine dimension |
6600* 3500* 2000MM |
|
7 |
Working speed |
25-35 |
|
8 |
Chamfer width dimension |
1-2mm |
|
9 |
Power |
18KW |
|
10 |
Voltage |
380V/50Hz/3Phase |
1. The accuracy and standard of edging are ensured by 8 servo motor control systems.
2. Automatically detect the size of the ratio, no need to adjust when edging, convenient and fast, and high working efficiency.
3. The control system has a self-diagnostic function and can grasp various operation information.
