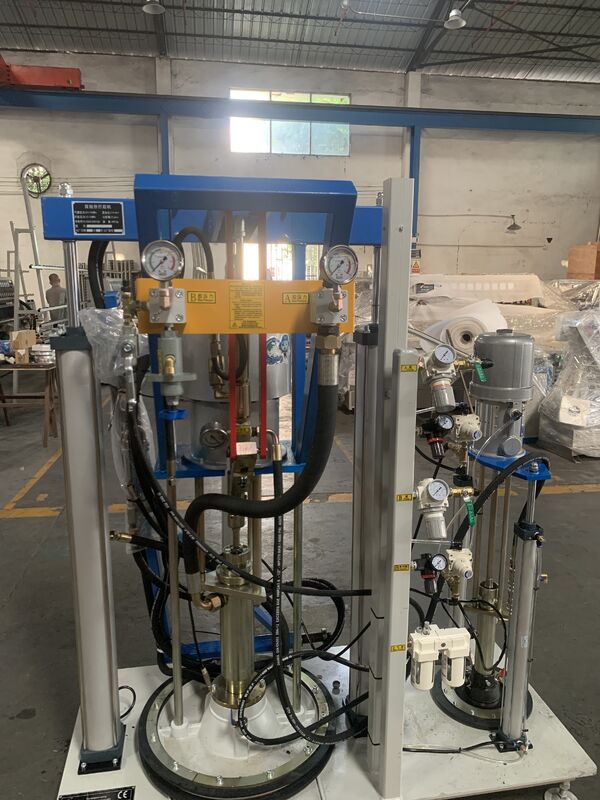

Two Component Sealing Machine Insulating Glass Curtain Wall Door Window Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST-DJ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 5800-6000USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Glass Thickness: | 3-19mm | Machine Weight: | 400kg |
|---|---|---|---|
| Table Height: | 920mm | Table Size: | 3100mm*1360mm |
| Hole Diameter: | 4-80mm | Neck And Arm Length: | 1250mm |
| Power: | 180W | Air Supply Pressure: | 0.3-0.5Mpa |
| Gluing Pressure: | 12-20Mpa | Glue Output: | 2L/Min |
Product Description
This specialized adhesive applicator is purpose-built for hollow glass, curtain wall glass, and door & window frame production. It achieves one-step integrated mixing and dispensing of A-component and B-component adhesives for secondary sealing, making it ideal for adhesives that demand high mixing accuracy. It fully satisfies the production requirements of deep-processing enterprises engaged in doors, windows, curtain walls, and insulating (hollow) glass manufacturing.
-
Integrated welded frame + pneumatic motor — the frame adopts an integral welding structure fitted with a domestic pneumatic motor, allowing operation with just one air hose.
-
Rigid, stable gantry — the gantry combined with a welded triangular structure provides rigid, stable support and greatly reduces vibration under cantilever working conditions.
-
User-friendly control panel — easy to operate, with clear display and straightforward button manipulation.
-
Durable mixing system — the stainless steel glue gun's mixing spindle guarantees long-term stable mixing performance.
-
Constant working pressure — a newly added gas storage tank keeps working pressure stable.
-
Reliable B-component pump — dual-column structure with double sealing pressure plates thoroughly solves the oxidation and leakage problems of black component adhesive.
-
Optimized pipeline design — overcomes the low flow rate defect frequently seen on comparable equipment.
| Item | Description |
|---|---|
| Power | 180W |
| Machine weight | 400kg |
| Glass thickness | 3~19mm |
| Air supply pressure | 0.3-0.5Mpa |
| Gluing pressure | 12-20Mpa |
| Glue output | 2L/Min |
