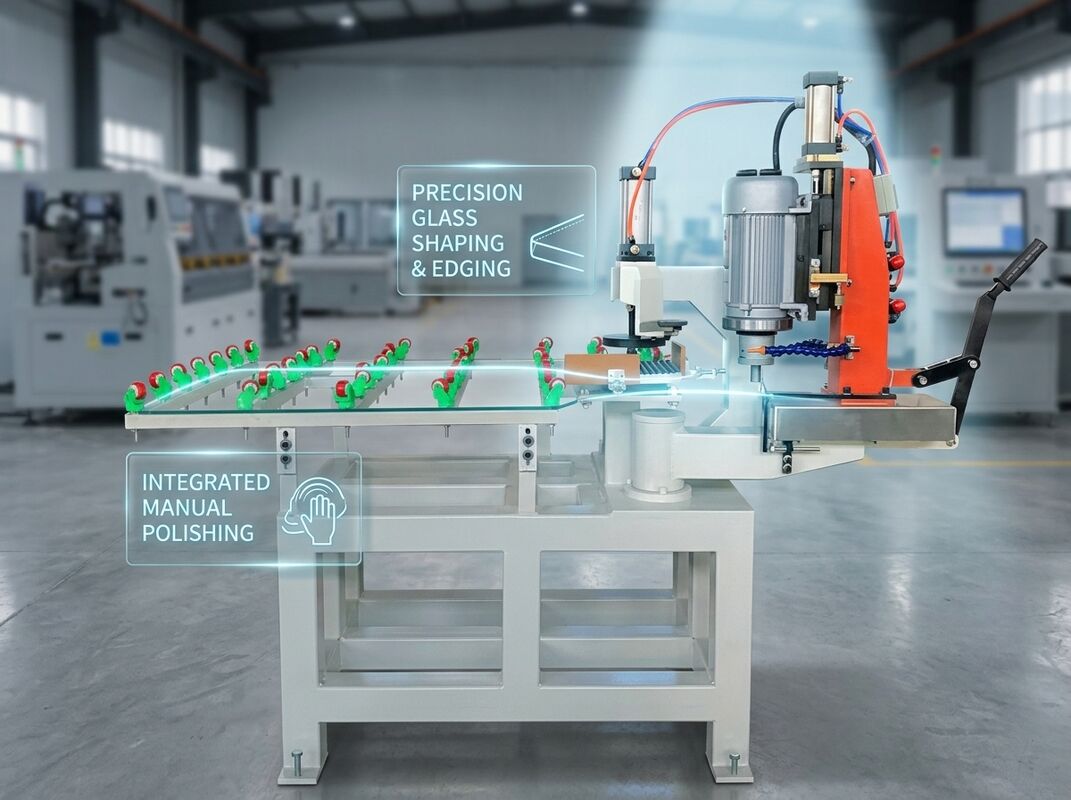

Single Head Manual Glass Corner Grinding and Polish Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST1321 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2300-3000USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Weight: | 200kg | Max Bevel Width: | 35mm |
|---|---|---|---|
| Glass Thickness: | 3-15mm | Processing Diameter: | 110-2100mm |
| Power: | 2.2KW | Bevel Angle: | 0-20° |
| Turntable Speed: | 1.2～6r/min | Working Speed: | 0.8～4r/min |
| Glass Size: | 2000mm | Machine Size: | 1800*1000*1500mm |
| R Angle Range: | R5-R60 | ||
Product Description
-
This machine is used for chamfering glass or stone. It grinds a 90-degree right angle into a smooth arc and polishes it in one pass.
-
Different grinding wheels can be fitted for different material thicknesses, and it processes both straight edges and round edges.
-
It is operated manually — simple to use and energy-saving.
-
Dual-material processing — chamfers and edges both glass and stone
-
Right-angle to arc grinding — turns a 90° right angle into a smooth arc
-
Grind & polish in one pass — integrated grinding and polishing for a finished edge
-
Adjustable grinding wheels — switch wheels to suit different material thicknesses
-
Flexible edge profiles — supports both straight edges and round (arc) edges
-
Manual operation — simple, intuitive and easy to master
-
Energy-saving design — low power consumption for continuous workshop use
| Item | Details |
|---|---|
| Thickness of the glass | 3-15mm |
| Glass size | 200*200MM-2M |
| Motor power | 2.2kw*1 |
| Air pressure | 6kg |
| Outline dimensons | 1800*1000*1500mm |
| Processing size | 200*200MM |
| Weight | 200kg |
