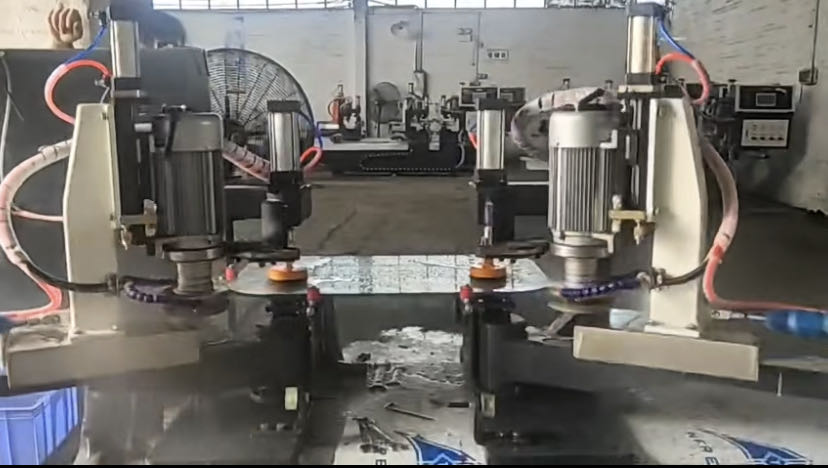

Double-head CNC PLC-controlled Glass Edging Machine For Automatic Glass round edging, Grinding, And Polishing.
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FOSHAN STAR |
| Certification: | CE/ISO/RoHS |
| Model Number: | ST-DJ1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 6050USD |
| Packaging Details: | Protective film |
| Delivery Time: | 30DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 30-50SET/MONTH |
|
Detail Information |
|||
| Name: | Double Heads Glass Corner Grinding Machine | Weight: | 650kgs |
|---|---|---|---|
| Max Speed: | 5-8/sec | Motor Power: | 7KW |
| Bottom Edge Grinding: | 3-19mm | Applicable Glass Type: | Glass |
| Operation: | Automatic | Processing Diameter: | 1000*1000mm |
| Dimensions: | 2400×1000×1550mm | ||
| Highlight: | CNC PLC-controlled glass edging machine,automatic glass round edging machine,glass grinding and polishing machine |
||
Product Description
High-efficiency dual-head design: Dual spindles allow for the simultaneous processing of two corners on the same piece of glass, significantly boosting production efficiency.
Independent dual-axis processing mode: Spindles operate independently, enabling the simultaneous processing of two smaller glass pieces.
High-precision CNC control system: Ensures accurate and stable processing with a precision of ±0.02 mm.
Wide processing range: Suitable for glass sizes from 360×180 mm to 1000×1000 mm and thicknesses from 3 mm to 19 mm.
Flexible chamfering radius: Supports chamfer radii up to 60 mm, with adjustable ranges of 5–60 mm or 5–30 mm.
User-friendly operation: Windows-based interface makes programming and operation simple and efficient.
Stable, heavy-duty structure: Ensures operational stability and consistent processing quality.
|
Model |
BD1000 |
|
Thickness of the glass |
3-19mm |
|
Glass size |
360-1000mm |
|
Motor power |
3kw× 2 |
|
High speed opening and closing |
750kw |
|
Air pressure |
5-6kg |
|
Outline dimensions |
2400×1000×1550mm |
|
Max.processing size |
1000*1000MM |
|
Min.processing size |
360*180MM |
|
Weight |
650kg |
|
Total Power |
7KW |
Q: What is the MOQ?
A: 1 SET
Q:What is the best price?
A:The price depends on machine size, model etc.
Q:What is the delivery time?
A:Usually it within 30-60 days , but also depends on machine model. Your voltage etc.
Q: What about warranty?
A:We supply one year warranty period ,Lifetime technical support and service.
Q: How your after-sale service?
A: Online Remote Service, Engineers go on site to install service training. 7*24 hours service.
Q:Where do you sell? Do you have experience in these countries?
A:We sold to America,Europe,Middle East,Asia,and so on.We have 20 years in export with all different certificates,like CB,CE, RO,HS, ISO9001 etc.
