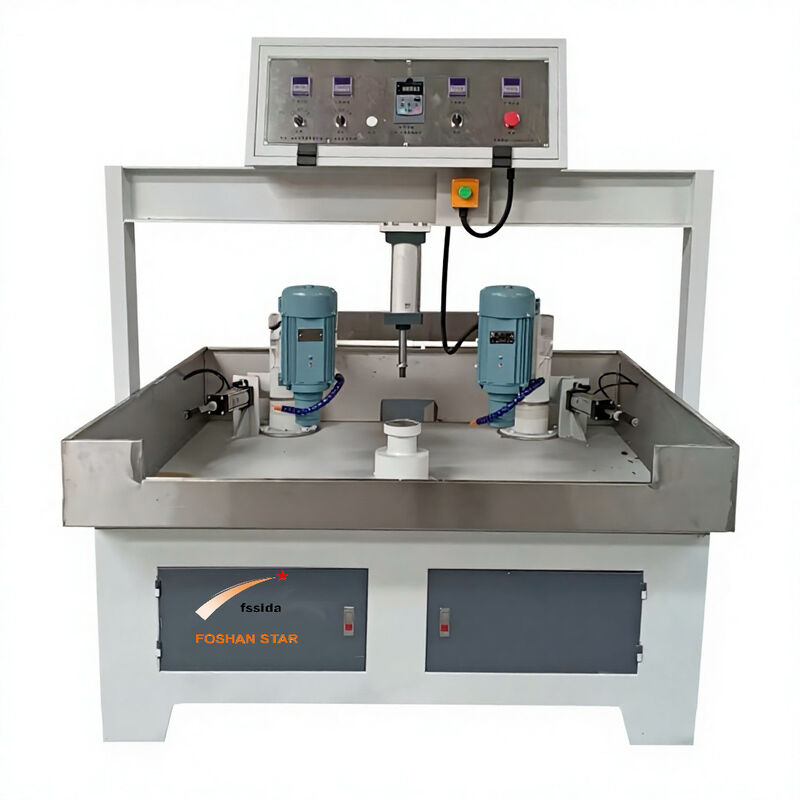

Automatic Dual-Head Glass Edge Grinding Machine for Precise Round Oval Glass Beveling
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST1321 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 5000-5800USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Processing Diameter: | 110-2100mm | Glass Thickness: | 3-21mm |
|---|---|---|---|
| Bevel Angle: | 0-20° | Max Bevel Width: | 35mm |
| Working Speed: | 0.8～4r/min | Turntable Speed: | 1.2～6r/min |
| Power: | 3KW | Weight: | 1000kg |
| Highlight: | Automatic glass edge grinding machine,Dual-head glass beveling machine,Precise round oval glass grinder |
||
Product Description
Automatic Dual-Head Glass Edge Grinding Machine for Precise Round Oval Glass Beveling
Machine Overview
The equipment delivers exceptional product precision by accurately tracking the glass profile. Its dual-head design — one head dedicated to grinding and the other to polishing — significantly enhances operational efficiency.
Product Advantages
-
Shape-Following Precision — The main focus is on achieving product precision by following the shape of the glass.
-
Single-Piece Processing — Only one piece of glass can be processed at a time, ensuring controlled, consistent quality.
-
Fast Processing Speed — The advantage of our products is their fast processing speed, greatly improving working efficiency.
Technical Specifications
| Processing diameter | 300-1600mm |
|---|---|
| Glass thickness | 3-20mm |
| Speed | 2800 rpm |
| Power | 5.15KW |
| Weight | 1000kg |
| Dimensions | 2200mm *1400mm*2000mm |
Product Service
Machine Photos
Want to Know more details about this product
