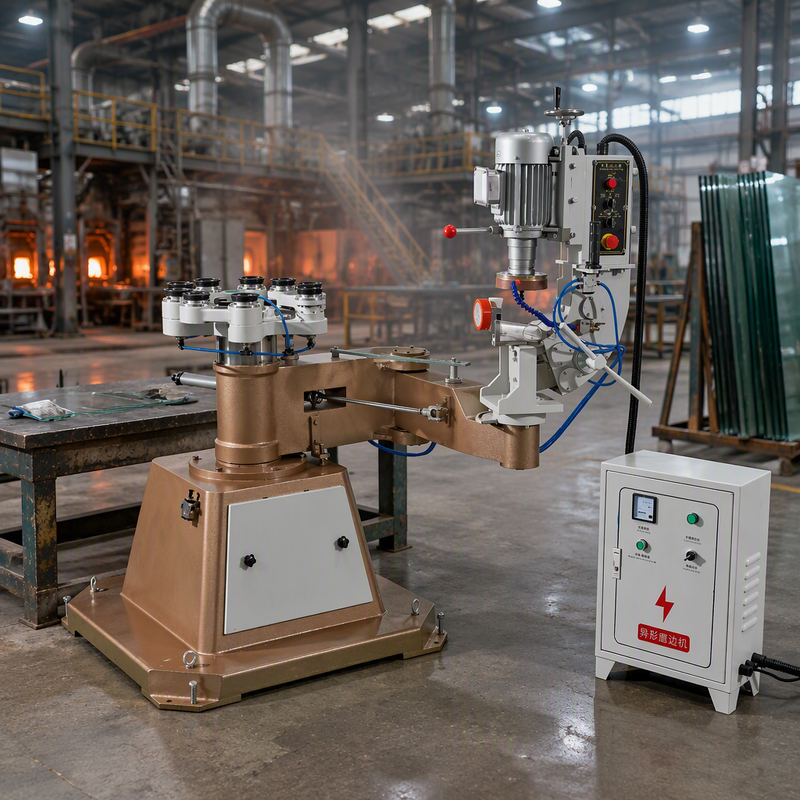

Satellite Turntable Glass Edge Grinding Machine for Round and Oval Glass Shaped Glass Beveled Edge Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST1321 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 3600-4000USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Processing Diameter: | 110-2100mm | Glass Thickness: | 3-21mm |
|---|---|---|---|
| Bevel Angle: | 0-20° | Max Bevel Width: | 35mm |
| Working Speed: | 0.8～4r/min | Turntable Speed: | 1.2～6r/min |
| Power: | 3KW | Weight: | 1000kg |
| Highlight: | Satellite turntable glass edging machine,Glass beveled edge processing machine,Round and oval glass grinding machine |
||
Product Description
CNC Double Heads Glass Drilling Machine
Machine Overview
This glass edging machine is specifically designed for grinding the edges and bevels of shaped glass, such as round or oval pieces. A satellite-style turntable drives the workpiece to rotate, with a rotation speed that can be steplessly adjusted during operation to flexibly meet various grinding requirements. Equipped with a pneumatic cylinder, the machine also enables semi-automatic grinding for simple shaped glass. For beveling operations, it utilizes a cup-shaped grinding wheel; by tilting the grinding head backward and adjusting the bevel angle, precise and smooth grinding of the edge surface is achieved.
Product Advantages
- Edge processing for shaped glass (e.g., circular and elliptical)—suitable for peripheral and beveled edge processing of shaped glass such as circular and elliptical pieces.
- Adjustable satellite turntable—the satellite turntable rotates the workpiece; the rotation speed can be adjusted during operation, allowing for flexible control of the grinding process.
- Semi-automatic grinding of shaped glass—utilizes pneumatic cylinders to perform semi-automatic grinding on glass with simple shapes.
- Precision bevel grinding—employs a cup-shaped grinding wheel for bevel grinding; the edge surface is ground by tilting the grinding head backward and adjusting the bevel angle.
Technical Specifications
| Processing diameter | 110mm～2100mm |
|---|---|
| Glass thickness | 3-21mm |
| Bevel angle | 0-20° |
| Max.bevel width | 35mm |
| Speed | 0.8～4r/min |
| Turntable speed | 1.2～6r/min |
| Voltage, Power | 380V,50HZ,3KW |
| Weight | 1000kg |
| Dimensions | 1300×1700×2100mm |
| The whole machine runs without abnormal noise | |
