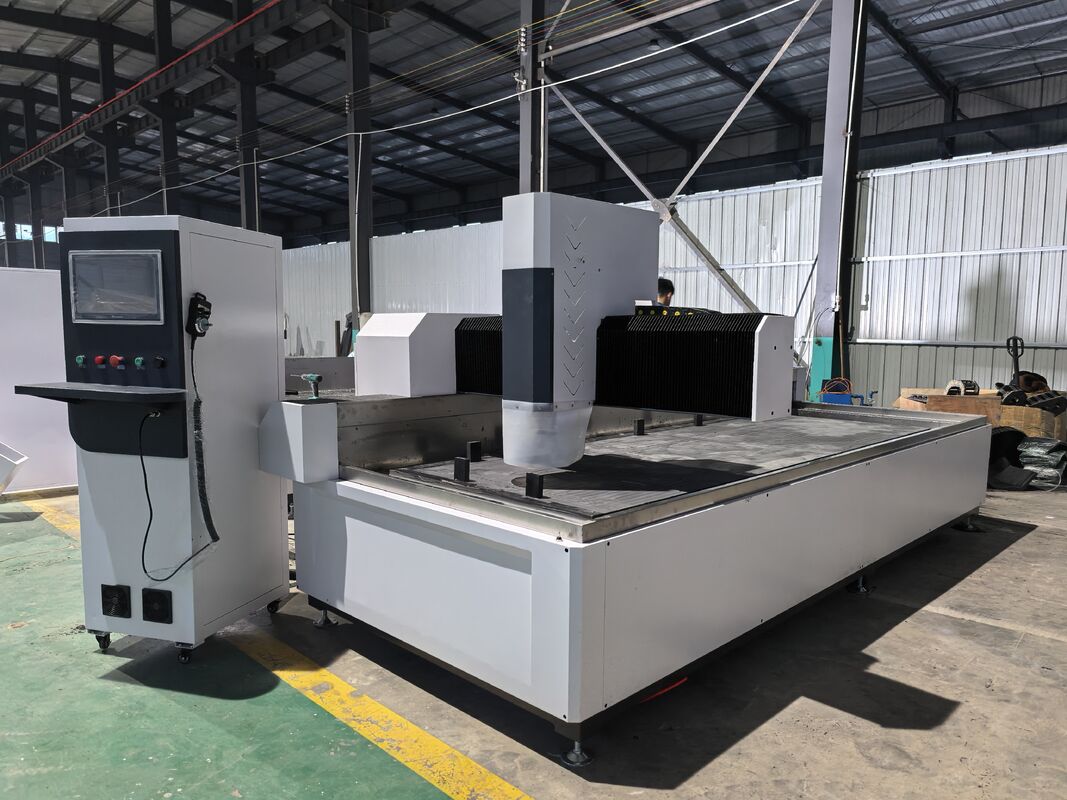

CNC Glass Milling Drilling Cutting Grinding Machine for Glass Door Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST-XC1025 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 14700-16800USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 -45 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Glass Thickness: | 3-19mm | Max Glass Size: | 1500*3000mm |
|---|---|---|---|
| Power: | 13.6KW | Total Weight: | 1600KG |
| Machining Accuracy: | ±0.1mm | Spindle Speed: | 24000rpm |
| Stroke X Axis: | 2500mm | Stroke Y Axis: | 1000mm |
| Highlight: | CNC glass milling machine for doors,glass drilling machine with cutting,glass grinding machine for processing |
||
Product Description
CNC Glass Milling Machine
Machine introduction
This CNC glass milling machine is a fully CNC servo-driven, all-in-one solution purpose-built for glass door processing. It accurately machines hinges, door clips, keyholes and door handles, making it an ideal piece of door drilling cutting equipment for shower rooms, minimalist doors, sliding doors and swing doors, while also handling glass and slate cabinet doors as well as kitchen and bathroom countertops.
Product Functions
- Milling of different shapes: contour milling in any shape
- Eeging: internal edging, round shape and flat shape edge
- Drilling, hole opening and hole grinding
Product Advantages
- Simple graphics system integration — no drawing and no programming required, just adjust the numbers and the processing path is generated automatically
- Full CNC servo motor drive for more flexible processing — any shape can be machined
- Low price, high precision, good effect, fast speed and labor saving
- Low consumables cost, simple maintenance and easier operation
Technical Parameters
| Max glass size | 1500*3000mm |
| Glass thickness | 3-19mm |
| Stroke X axis | 2500mm |
| Stroke Y axis | 1000mm |
| Spindle speed | 24000rpm |
| Machining accuracy | ±0.1mm |
| Spindle motor | 7.5kw Special spindle for drilling and milling |
| Power | 13.6KW |
| Servo motors | 0.75KW*3 |
| Machine weight | 1600KG |
Product service
Machine Images
Want to Know more details about this product
