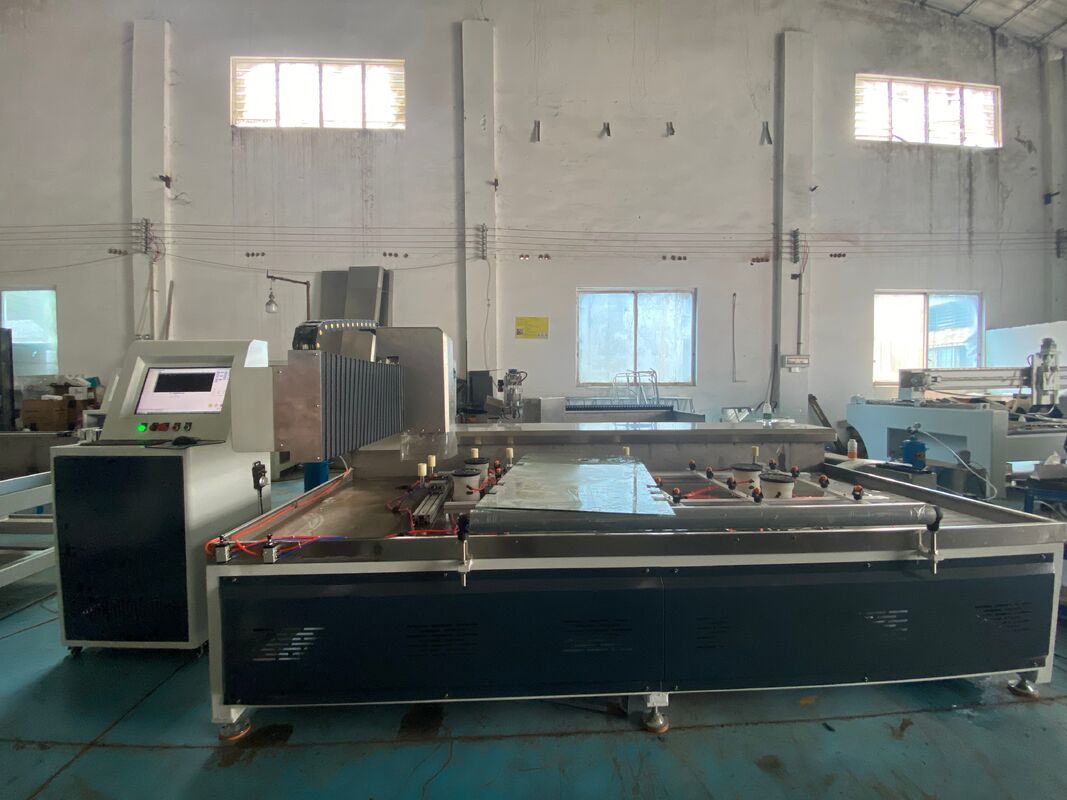

High Precision CNC Glass Milling Machine 24000rpm With 3-4 Axis Control
Product Details:
| Place of Origin: | China |
| Brand Name: | Foshan star |
| Certification: | CE |
| Model Number: | ST-XC1025 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $8500-$12500USD/SET |
| Packaging Details: | protective fim |
| Delivery Time: | 20 days |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 20Set each month |
|
Detail Information |
|||
| Name: | Glass Milling Machine | Drive System: | Servo Motor Or Stepper Motor |
|---|---|---|---|
| Frame Material: | Steel Or Cast Iron | Power Supply: | 220V/380V, 50/60Hz |
| Spindle Speed: | Up To 24,000 RPM | Working Area: | Variable, E.g., 1200mm X 2400mm |
| Spindle Power: | Variable, Typically 3-10 KW | ||
| Highlight: | CNC Glass Milling Machine,Glass Milling Machine 24000rpm,High Precision Glass Milling Machine |
||
Product Description
High Precision 24000 RPM CNC Glass Milling Machine with 3-4 Axis Control for Glass Processing
Product Description
Glass milling machines typically integrate multiple functions such as drilling, milling, slotting, cutting, edge grinding, and polishing. The equipment can accurately complete complex processes such as milling straight and curved lines, radial polishing of edges, and cutting at vertical or 45 ° angles on flat glass.The equipment adopts a CNC numerical control system to achieve multi axis linkage and continuous contour trajectory control. Using high-precision linear guides, ball screws, and high-speed electric spindles (with a maximum speed of over 12000rpm), combined with pneumatic suction cups or clamping devices, to ensure that the glass does not shift during high-speed processing, achieving perfect processing without edge breakage and high precision.
Product Features
1. Multi process composite processing, one-time molding3. Intelligent CNC system and parameterized programming, with minimal operation
The equipment is generally equipped with advanced CNC control systems, supporting multi axis linkage and continuous contour trajectory control. Combined with specialized CAM programming software, the system has a rich built-in graphics library that supports size driven parametric drawing. Operators only need to input basic dimensions such as length, width, and aperture, and the system can automatically generate the optimal processing path, greatly reducing reliance on manual experience and making operations as convenient as using a smartphone.
Product Specifications
| Machining accuracy | ±0.1mm |
| Machine size | 2800×2200×1600mm |
| Glass thickness range | 3-19mm |
| Max glass size | 1500×3000mm |
| Stroke X axis | 2500mm |
| Stroke Y axis | 1000mm |
| Spindle | 7.5KW |
| Spindle speed | 24000rpm |
| Servo motor | 0.75KW×3 |
| Feed rate | 0-1M/Min |
| Precision | ±0.2mm |
| Power | 13.6KW |
| Machine weight | 1600Kgs |
Product Service
Product Images
