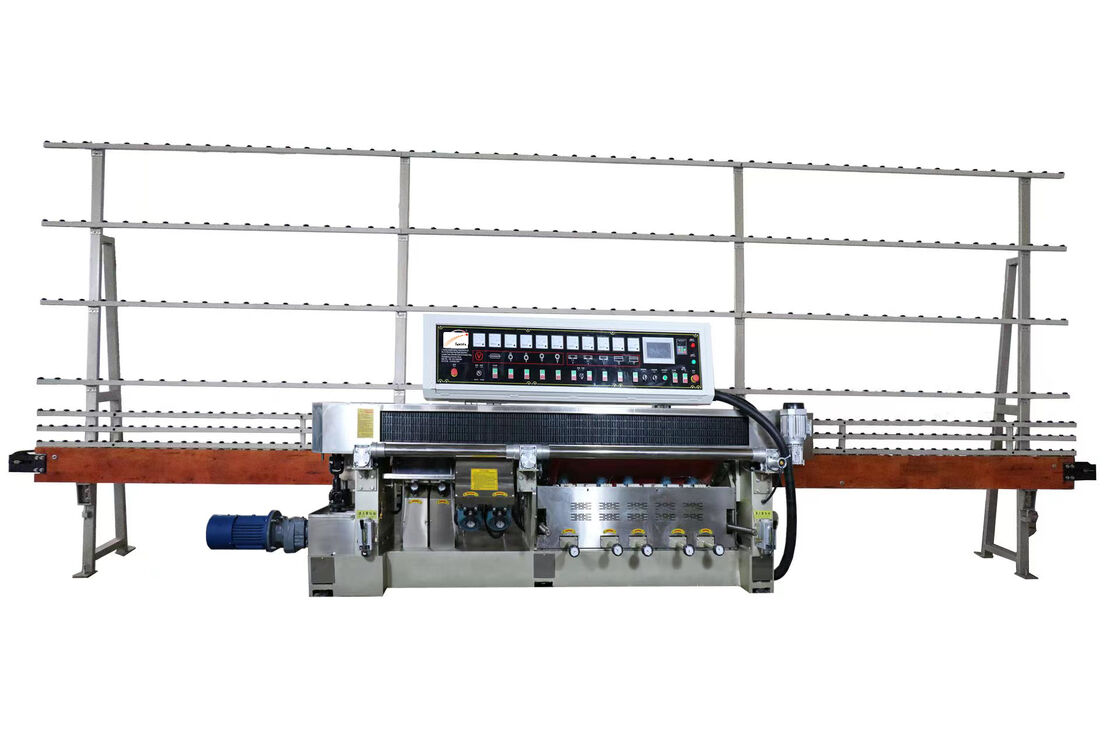

Foshan Star ST-252E Nine Motors Bearing Straight Line Grinding Machine High Precision
Product Details:
| Place of Origin: | China |
| Brand Name: | FoShan Star |
| Model Number: | ST-252E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $21,850-$22,500/SET |
| Packaging Details: | Protective fim/Wooden Box |
| Delivery Time: | 35 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Transmission Speed Range: | 0.4-5 M/min | Processing Glass Thickness: | 3-25 Mm |
|---|---|---|---|
| Process The Minimum Glass Width: | 25mm | Process The Maximum Glass Width: | 3000mm |
| Floor Space: | 7.56m×1.35m | Installed Power: | 22.9KW |
| Aggregate Capacity；gross Power；total Power；ultimate Capacity: | 80 Ampere | Cold Water Pump Pressure: | 2.5Kgs |
Product Description
Foshan Star ST-252E Nine Motors Bearing Straight Line Grinding Machine
Product Overview
The Foshan Star ST-252E is a nine-motor bearing straight-line grinding machine designed for continuous, high-efficiency grinding of flat glass edges. With a sturdy bearing-type linear transmission structure and nine grinding motors arranged in a straight processing line, it delivers stable feeding, consistent grinding quality and long service life for daily mass production.
Key Features
- Nine-motor straight-line configuration ensures continuous multi-stage grinding in one pass, boosting production efficiency.
- Wide processing range: handles flat glass from 3 mm to 25 mm thick and from 25 mm to 3000 mm wide.
- Variable transmission speed of 0.4–5 m/min gives flexible control to match different glass sizes and finish requirements.
- Stable bearing-supported linear feed keeps the glass running smoothly for even, chatter-free edge grinding.
- Heavy-duty welded frame with a compact footprint of only 7.56 m * 1.35 m, saving valuable workshop space.
- 22.9 kW installed power with 80 A rated current provides reliable power for sustained heavy-duty operation.
- Built-in cooling water circulation (pump pressure 2.5 kg/cm²) keeps grinding wheels cool and clean for a high-quality edge finish.
Technical Specifications
| Item | Specification | Item | Specification |
|---|---|---|---|
| Max Glass Width | 3000 mm | Glass Thickness | 3 - 25 mm |
| Transmission Speed | 0.4 - 5 m/min | Min Glass Width | 25 mm |
| Aggregate Capacity | 80 Ampere | Installed Power | 22.9 KW |
| Water Pump Pressure | 2.5 Kgs | Floor Space | 7.56m x 1.35m |
Glass Sample Results
