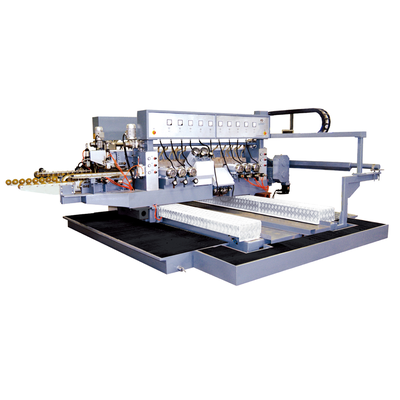

20 Spindle Straight-Line Double-Edging Machine with PLC Control System for Glass Polishing
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FOSHAN STAR |
| Certification: | CE/ISO/RoHS |
| Model Number: | SB-2520 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 38580USD |
| Packaging Details: | Protective film |
| Delivery Time: | 30-50 |
| Payment Terms: | T/T |
| Supply Ability: | 15-30SET/MONTH |
|
Detail Information |
|||
| Name: | Glass Double Edging Machine | Dimension: | 4400x4400x1800mm |
|---|---|---|---|
| Applicable Materials: | Glass/Marble /Ceramic | Air Pressure Needed: | 6kg/square Cm |
| Hs Code: | 8464201000 | Working Speed: | 0-15 M/min |
| Usage: | Polishing Glass Edge | OEM: | Avalialbe |
| Min Seaming Size: | 200x200mm | Transport Package: | Protective Film |
| Angle Of Spindle: | 0-45° | Weight: | 4000KG |
| Using: | Manual | Material Compatibility: | Glass |
| Package: | Protective Film Or Wooden Box | ||
| Highlight: | 20 Spindle Glass Edging Machine,Straight-Line Double-Edging Machine,PLC Control System Glass Polishing Machine |
||
Product Description

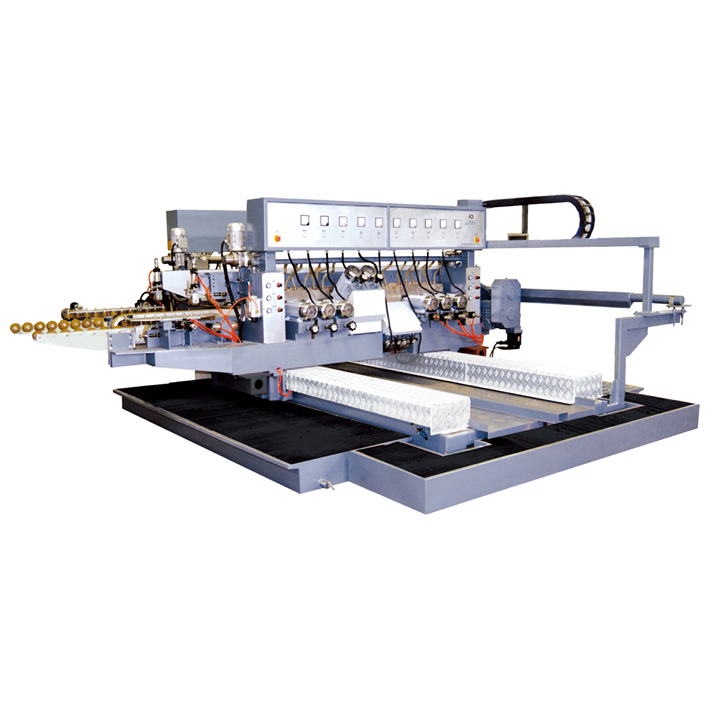

20 Spindle Straight-Line Double-Edging Machine for Flat Glass Edging and Polishing Machine
Machine Introduce
To process glass flat edge with 45 degree arris. This machine can process 2 parallel edges at same time.
Technical Parameters
| Spindles | 20 (each side has 10 polishing wheel) |
|---|---|
| Max. glass width | 2500mm |
| Min. glass size: | 200x200mm |
| Glass thickness: | 4-26mm |
| Maximum flat edging level: | 3mm |
| Maximum arrising width: | 2.5mm |
| Arrise angle: | 45° |
| Working speed | 0.5-11.0m/min |
| Installed power | 50kw |
| Compressor air consumption | 1 It/min |
| Pressure | 6kg/square cm |
| Overall dimension | 4400x4400x1800mm |
| Weight | 4000kg |
Grinding wheel introduction
| # | Specification | # | Specification |
|---|---|---|---|
| 1 | Diamond wheel bottom edge, 150mm | 6 | Resin wheel for arris, 130mm |
| 2 | Diamond wheel bottom edge, 150mm | 7 | BD wheel for arris, 130mm |
| 3 | Resin wheel, bottom edge, 150mm | 8 | Yew wheels for bottom, 150mm |
| 4 | Resin wheel for arris, 130mm | 9 | Yew wheels for bottom, 150mm |
| 5 | BD wheel for arris, 130mm | 10 | Yew wheels for bottom, 150mm |
Product advantage:
- The machine uses one set of PLC control system. Can count the processing amount automatically. Glass processing speed showed on the screen page
- Pneumatic assistant polishing for the last 3 polishing wheels for bottom edge.
- With the use of Taiwan guide rails for stable running of the machine.
- Two step fixing of glass to enable glass has good diaganal.
Frequently Asked Questions
Q: What is the MOQ?
A: 1 SET
Q:What is the best price?
A:The price depends on machine size, model etc.
Q:What is the delivery time?
A:Usually it within 30-60 days , but also depends on machine model. Your voltage etc.
Q: What about warranty?
A:We supply one year warranty period ,Lifetime technical support and service.
Q: How your after-sale service?
A: Online Remote Service, Engineers go on site to install service training. 7*24 hours service.
Q:Where do you sell? Do you have experience in these countries?
A:We sold to America,Europe,Middle East,Asia,and so on.We have 20 years in export with all different certificates,like CB,CE, RO,HS, ISO9001 etc.
