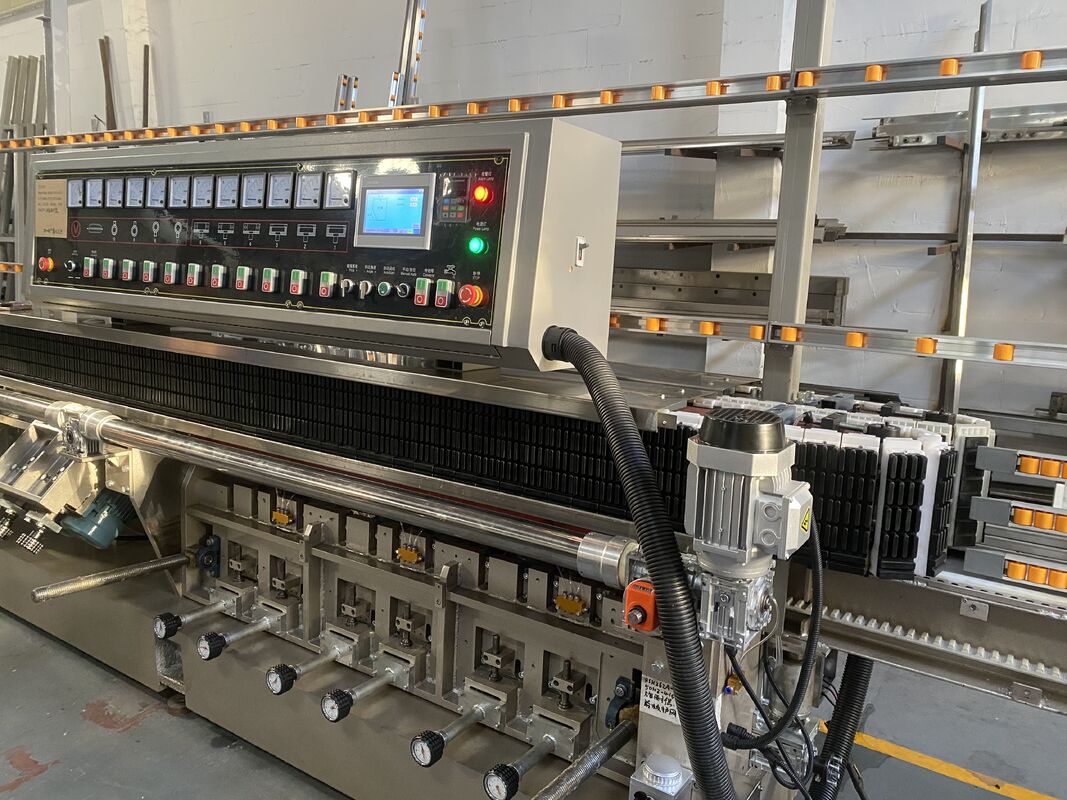

Foshan Star Multi Angle Glass Edging Equipment 3-20mm Glass Polishing Machine PLC Control
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FOSHAN STAR |
| Certification: | CE/ISO/RoHS |
| Model Number: | ST-262A-C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 13800USD |
| Packaging Details: | Protective film |
| Delivery Time: | 30-50 |
| Payment Terms: | T/T |
| Supply Ability: | 15-30SET/MONTH |
|
Detail Information |
|||
| OEM: | Avalialbe | Package: | Protective Film Or Wooden Box |
|---|---|---|---|
| Dimension: | 7350mm×1500mm×2600mm | Applicable Materials: | Glass/Marble /Ceramic |
| Hs Code: | 8464201000 | Working Speed: | 0.6～8m/min |
| Usage: | Polishing Glass Edge | Structure: | Vertical |
| Min Seaming Size: | 80mm×80mm×3mm | Transport Package: | Protective Film |
| Angle Of Spindle: | 0-45° | Weight: | 3600KG |
| Using: | Manual | Material Compatibility: | Glass |
| Name: | Glass Edging Machine | ||
| Highlight: | Multi Angle Glass Edging Equipment,Glass Polishing Machine PLC Control,20mm Glass Polishing Machine |
||
Product Description
ST262A-C Glass Straight Line Edging Machine is suitable for grinding flat glass’s edge and arrises from 0 to 45 degree.The grinding and polishing of flat edge with arrises are finished at one processing. It adopts frequency conveyor device , Which has wildly space and easily to be adjusted.
Remark: input conveyor rack can be vertically adjustable up and down ,the function is to adjust the grinding amount by rotate the rotation handle ,and the grind amount digital display.
-
(1)Over all dimension:7350mm×1500mm×2600mm
(2)Height of input conveyor:780mm
(3)Total weight:3600kg
(4)Voltage/Frequency:380V/50Hz
(5)Total power:24.85KW
(6)Speed:0.6～8m/min
(7)Glass Size:
The grinding amount of flat edge:3mm
The maximum grinding width:2.5mm
The minimum glass size:80mm×80mm×3mm
(8)Glass thickness:3～20mm
|
1#:Bottom diamond wheel ø150 |
2#:Bottom diamond wheel ø150 |
3#:Bottom resin wheel ø150 |
|
4#:Bottom polishing wheel ø150 |
5#:Bottom polishing wheel ø150 |
6#:Bottom cerium oxide ø150 |
|
7#:Resin wheel for front arris ø130 |
8#:Polishing wheel for front arris ø130 |
9#::Resin wheel for back arris ø130 |
|
10#:Polishing wheel for back arris ø130 |
|
|
1) Adopt frequency variator as main transmit system,high or low speed all smooth and no vibration, low noise.
2) Digital display glass thickness.
3) Adopt manual filling function lubrication system , easy to maintain the skateboards which for support grinding motors.
4) The last motor for polishing flat bottom glass, adopt double speed system motor.
5) 4 layer waterproof brush, easy to replace.
6) Advanced front beam configuration.Exclusive design of straight pallets for easier replacement and maintenance.
7) Front and rear rails: high quality cast iron, not easily deformed.
8) Main machine body, supporting pillar, all adopting high quality iron casting.
9) Dovetail grinding head plate: high quality cast iron, professional processing, no gap, stable and vibration-free during work.
10) Waterproof brush: high elasticity, high temperature resistant.
11) The pads and chain are adopted famous brand in China,the front and rear splints are all branded “lobster”,
- Installation and Setup: Ensure installation on a stable, level surface in a clean environment following user manual instructions
- Operation: Use only for intended glass cutting purposes with appropriate safety gear (gloves, eye protection)
- Maintenance: Regular cleaning of cutting surfaces and components, lubrication of moving parts, and inspection/replacement of cutting wheels
- Troubleshooting: Consult user manual for issues like inaccurate cuts, unusual noises, or malfunctions
- Technical Support: Available guidance on installation, operation, and maintenance
- Warranty and Service: Limited warranty covering manufacturing defects with authorized service centers for repairs and replacement parts
