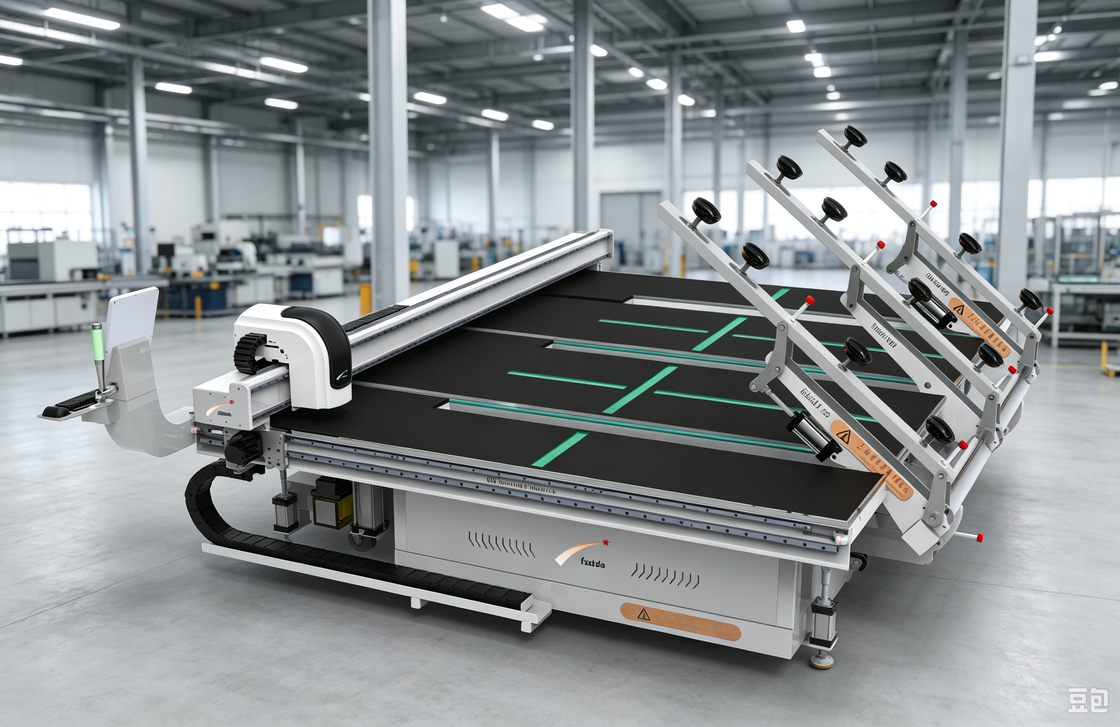

0-200m/Min CNC Glass Cutting Machine Low Noise With Automatic Nesting
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST-QG3826 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 19700-21500USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Max Glass Size: | 3660*2440mm | Glass Thickness: | 3-18mm |
|---|---|---|---|
| Installed Power: | 15 KW | Air Pressure: | 0.6-0.8MPa |
| Max Speed: | 160m/min | Machine Size: | 7350*3100*1300mm |
| Name: | Glass Cutting Machine | ||
| Highlight: | 0-200m/Min CNC Glass Cutting Machine,CNC Glass Cutting Machine Low Noise,Automatic Nesting Glass Cut Machine |
||
Product Description
ST - QG3826 CNC Glass Cutting Machine with Automatic Nesting, Servo Direct Drive and Air - Floating Breaking Table
- The ST - QG3826 Intelligent Glass Loading & Cutting Machine integrates a loading‑cutting unit and an air‑floating breaking table. This all‑in‑one system fully automates glass processing: automatic loading, optimized nesting, labeling, cutting, conveying and breaking.
- Fitted with powered travel wheels and remote‑control operation, it boasts excellent workshop mobility. It supports straight‑line and shaped cutting for architectural, furniture, craft, decorative, cabinet and mirror glass.
-
1. Fully Automated, Labor-Saving Workflow
From automatic glass loading to cutting, conveying, and air-floating breaking, the entire process runs hands-free — reducing labor costs while boosting efficiency and workplace safety.
-
2. Telescopic Arm Loading — Faster & Safer
Three telescopic booms with 12 NBR suction cups handle large glass sheets with rock-solid stability. The telescopic design doubles loading speed over conventional machines, while the anti-strip function prevents double-sheet pickup for worry-free operation.
-
3. Smart Nesting, Maximum Material Savings
Fully compatible with Italian OPTIMA and Guiyou G-code, the intelligent nesting software maximizes cutting yield and minimizes raw glass waste. A built-in special-shaped library covers a wide range of cutting patterns for flexible production.
-
4. Intelligent Edge Positioning & Profiling Scan
Auto edge-finding precisely detects glass position and deflection angle, automatically adjusting the cutting path for flawless results. The intelligent scanner reads special-shaped templates and generates cutting programs instantly — enabling accurate profile cutting with zero manual programming.
-
5. Servo Direct Drive — High Precision, Low Noise
X/Y axes are servo-driven directly with no belts, delivering superior precision and quiet operation — the hallmark of high-end CNC engineering. Cutting accuracy up to ±0.3mm and speeds up to 200m/min keep your production fast and consistent.
-
6. Smart Pressure Control for Clean
A FELTON high-precision pressure valve automatically adjusts cutting pressure to match glass thickness (3–18mm). No manual tuning, uniform pressure, and clean score lines that break apart effortlessly.
-
7. Mobile & Flexible in Your Workshop
Power walking wheels with remote control let the machine move and turn freely around the workshop. Foot cylinders automatically lock the frame before cutting, ensuring rock-steady precision at every station.
-
8. Value-Added Option: Automatic Labeling
Automatically prints and applies labels carrying glass size, customer info, serial number, and QR code — eliminating manual labeling and enhancing product traceability from production to delivery.
| Parameter | Value |
|---|---|
| Maximum Glass Size | 3660 * 2440 mm |
| Glass Thickness Range | 3-18 mm |
| Installed Power | 15 KW |
| Compressed Air Requirements | 0.6-0.8 Mpa, exhaust volume 0.6-1 m³/min |
| Cutting Head Speed | 0-200 M/min (adjustable) |
