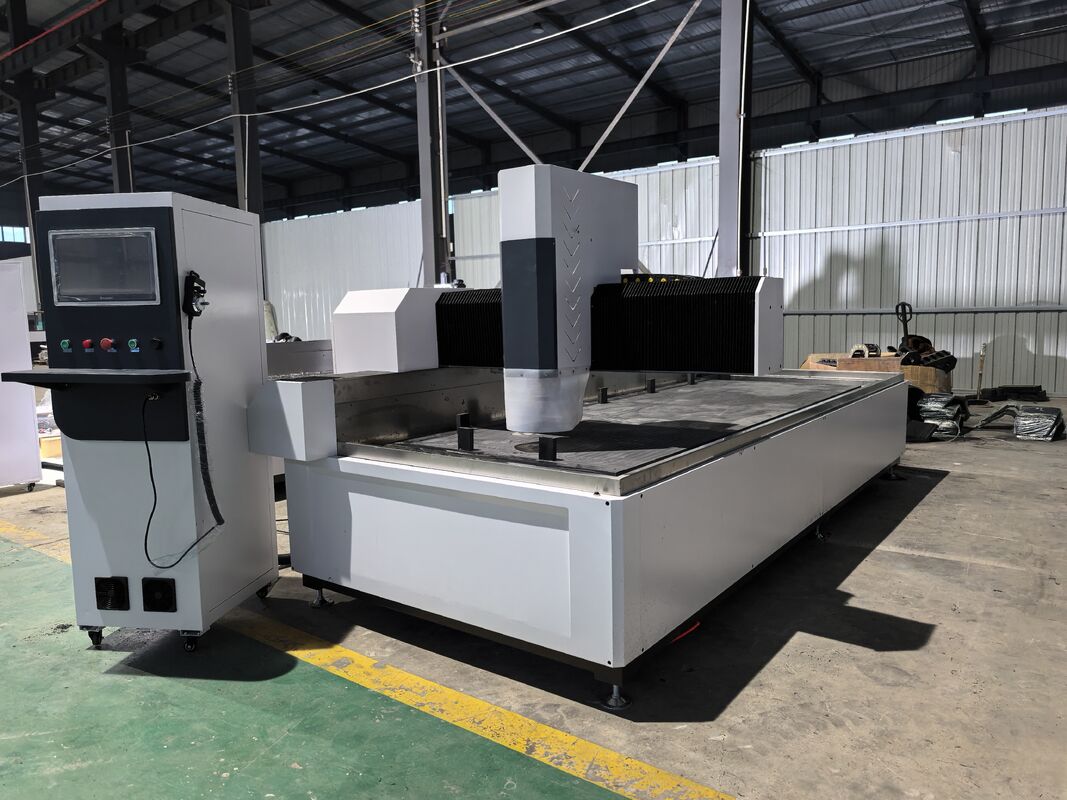

380V Single Head CNC Glass Drilling Machine With Precision Drilling Capacity
Product Details:
| Place of Origin: | China |
| Brand Name: | FoShan Star |
| Model Number: | SXZ1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 11100$-11250$ |
| Packaging Details: | Protective fim |
| Delivery Time: | 45 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | CNC Glass Drilling Machine | Drilling Diameter: | 4mm-50mm |
|---|---|---|---|
| Processed Glass Thickness: | 4mm-25mm | Maximum Drilling Stroke: | 1600mm*1000mm |
| Working Platform Size: | 1800mm*1300mm | Machine Size: | 2200mm*2100mm*2000mm |
| Total Power: | 5KW | Voltage: | 380VAC/50HZ |
| Machine Weight: | 1200Kg | ||
| Highlight: | 380V CNC Glass Drilling Machine,Single Head CNC Glass Drilling Machine,Single Head Glass Drilling Equipment |
||
Product Description
CNC Glass Drilling Machine, 380v Glass Drilling Machine, Factory Direct Sales
Product Description
This Model SXZ1000 Single-Head CNC Glass Drilling Machine is engineered for precision and efficiency in automated glass processing. Designed with a robust structure and advanced frequency converter technology, it ensures accurate, consistent, and high-quality drilling for various glass applications.
Product Features
Equipped with specialized water-cooled spindle motors and dual frequency converters, this machine provides highly stable and adjustable drilling speeds. It is optimized for precise hole-making with exceptional reliability.
- Precision Drilling Capacity: The machine supports a versatile drilling diameter ranging from 4mm to 50mm, accommodating a wide variety of hole sizes for different industrial needs.
- Automated Stroke Control: With a maximum drilling stroke of 1600mm x 1000mm, the CNC system allows for accurate positioning and seamless execution of complex drilling patterns.
- Variable Speed Regulation: Powered by two 1.1KW water spindle motors (2800 RPM) with frequency converter speed regulation, operators can easily adjust the drilling speed to suit different glass thicknesses and materials.
Built for heavy-duty industrial environments, the machine features a spacious and ergonomically designed working platform to facilitate smooth loading and processing.
- Glass Thickness Compatibility: It is optimized to process glass thicknesses ranging from 4mm to 25mm, making it highly suitable for architectural, furniture, and appliance glass manufacturing.
- Spacious Working Platform: The machine features a working platform size of 1800mm x 1300mm with an ergonomic working height of 920mm, ensuring stable support and ease of operation for operators.
- Extended Arm Reach: Featuring an arm length of 1000mm, the single-head design provides excellent reach and flexibility for precise drilling on various glass dimensions.
Product Specifications
| Item | Specification | Working Platform Height | 920 mm |
|---|---|---|---|
| Model | SXZ1000 | Motor Power (Water Spindle) | P=1.1KW x 2, 2800 RPM |
| Arm Length | 1000 mm | Frequency Converter | 2 Sets |
| Drilling Diameter | 4 - 50 mm | Total Power | 5 KW |
| Processed Glass Thickness | 4 - 25 mm | Voltage | 380V AC / 50HZ |
| Maximum Drilling Stroke | 1600 mm x 1000 mm | Machine Size (LxWxH) | 2200 x 2100 x 2000 mm |
| Working Platform Size | 1800 mm x 1300 mm | Machine Weight | 1200 KG |
