Foshan Star SXZK-0222 Three Heads Automatic Glass Drilling Machine Pneumatic Vertical
Product Details:
| Place of Origin: | China |
| Brand Name: | FoShan Star |
| Model Number: | SXZK-0222 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $6,200-$6,500 |
| Packaging Details: | Protective fim/Wooden Box |
| Delivery Time: | 45 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Neck And Arm Length: | 1250mm | Hole Diameter: | Diameter 4mm—80mm |
|---|---|---|---|
| Maximum Processing Size: | 2500mmX2500mm | Glass Thickness: | 3mm—25mm |
| The Motor: | P=1.1KWx6 ^=2800 | Voltage: | 380V.50HZ |
| Workbench Size: | 1100mmX620mm | Workbench Height: | 920mm |
| Highlight: | three heads automatic glass drilling machine,pneumatic vertical glass drilling machine,Foshan Star SXZK-0222 glass drill |
||
Product Description
Foshan Star SXZK-0222 Three Heads Automatic Glass Drilling Machine Pneumatic Vertical
Machine Overview

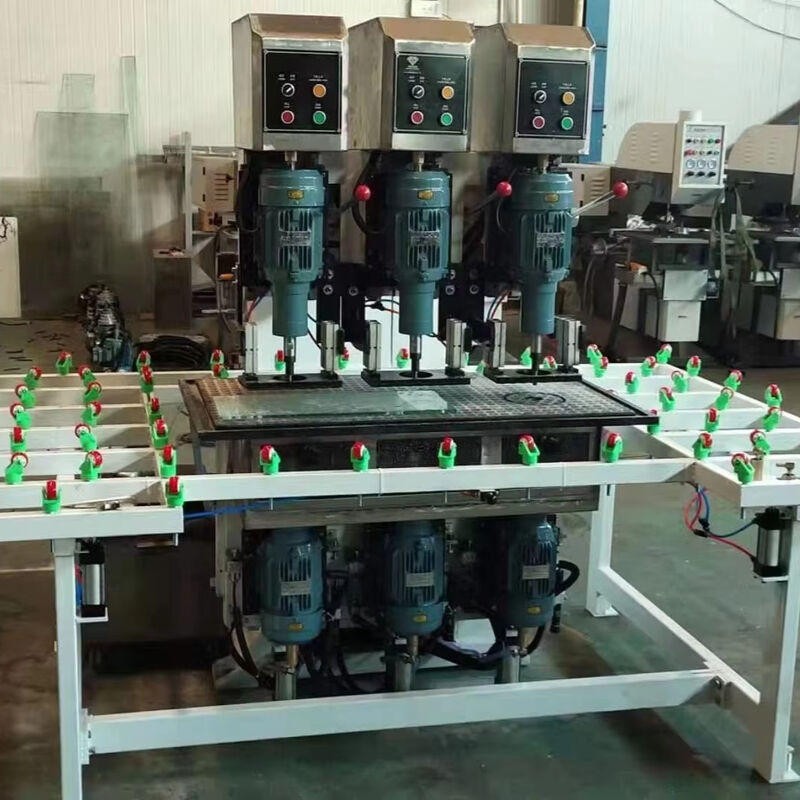

The SXZK-0222 three heads automatic glass drilling machine is designed for high-efficiency hole drilling on flat glass panels. Three drill heads work in coordinated automatic cycles to deliver stable, high-volume output, making it an ideal production solution for architectural glass, furniture glass and household appliance glass processing lines.
Key Features
- Three drill heads accommodate different bit sizes, eliminating frequent bit changes and improving working efficiency
- Drills holes from both top and bottom sides of glass simultaneously for fast and safe operation
- Infrared positioning system ensures precise hole placement before drilling
- Pneumatic worktable supports large area plate glass processing
- Automated drilling controlled by foot pedal, freeing operators' hands for safer and more convenient operation
- Processes glass thickness from 3mm to 25mm and glass panels up to 2500mm x 2500mm
- Ideal for mass production with high efficiency and low labor intensity
Technical Specifications
| Specification | Value |
|---|---|
| Neck and Arm Length | 1250mm |
| Hole Diameter Range | 4mm - 80mm |
| Maximum Processing Size | 2500mm * 2500mm |
| Glass Thickness Range | 3mm - 25mm |
| Workbench Size | 1100mm * 620mm |
| Workbench Height | 920mm |
| Motor Power | P=1.1KWx6 ^=2800 |
| Voltage | 380V, 50HZ |
