3826 CNC Glass Cutting Machine 7350*3100*1300mm 3-18mm Glass Thickness
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST-QG3826 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 19700-21500USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | CNC Glass Cutting Machine | Max Glass Size: | 3660*2440mm |
|---|---|---|---|
| Glass Thickness: | 3-18mm | Installed Power: | 15 KW |
| Air Pressure: | 0.6-0.8MPa | Max Speed: | 160m/min |
| Machine Size: | 7350*3100*1300mm | ||
| Highlight: | 3826 CNC Glass Cutting Machine,Glass Cutting Machine 7350*3100*1300mm,18mm Glass CNC Cutting Machine |
||
Product Description

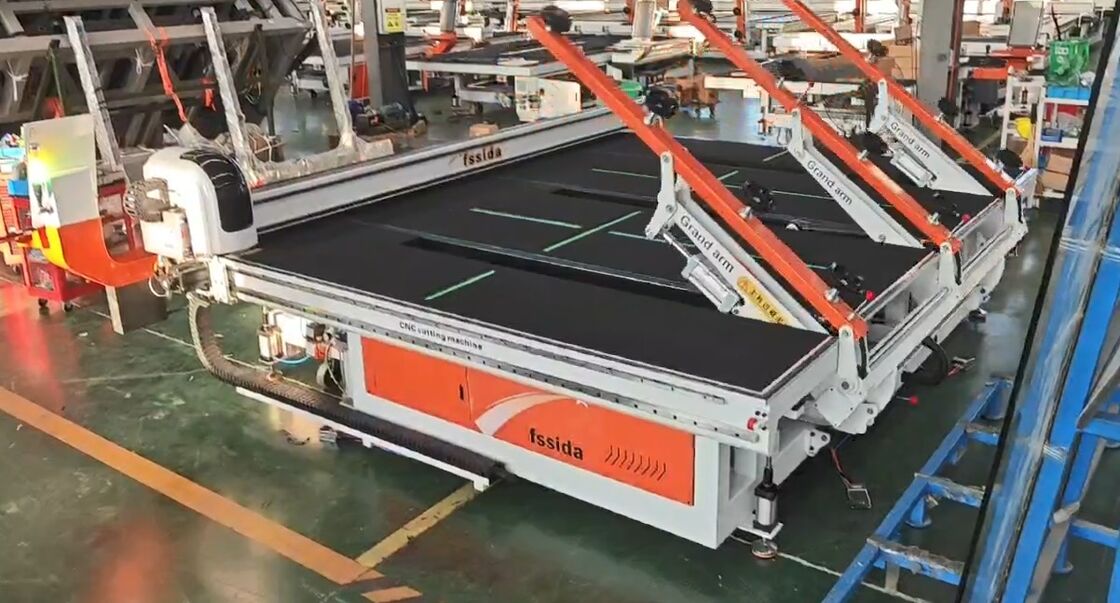

3826 CNC Glass Cutting Machine
Machine Overview
The QJ3826 intelligent glass loading and cutting machine consists of two integrated systems: the loading and cutting machine and the air-floating breaking table. This comprehensive solution automates the entire glass cutting process, including automatic loading, optimization layout, labeling, cutting, transportation, and breaking operations.
Equipped with power walking wheels and remote control capability, the machine offers exceptional mobility within the working area for easy positioning and shifting. It supports both straight and special-shaped cutting of glass, making it suitable for architectural glass, furniture glass, craft glass, decorative glass, cabinet glass, glass mirrors, and various other applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Glass Size | 3660 * 2440 mm |
| Glass Thickness Range | 3-18 mm |
| Installed Power | 15 KW |
| Compressed Air Requirements | 0.6-0.8 Mpa, exhaust volume 0.6-1 m³/min |
| Cutting Head Speed | 0-200 M/min (adjustable) |
