3-25mm Three Head Glass Drilling Machine For Efficiency / Safety
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST-ZK0222 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 6200-6500USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Glass Drilling Machine | Neck And Arm Length: | 1250mm |
|---|---|---|---|
| Hole Diameter: | 4-80mm | Maximum Processing Size: | 2500*2500mm |
| Glass Thickness: | 3-25mm | Workbench Size: | 1100mmX620mm |
| Workbench Height: | 920mm | ||
| Highlight: | Three Head Glass Drilling Machine,25mm Glass Drilling Machine,3mm Glass Drill Machine |
||
Product Description
Three Heads Glass Drilling Machine
Machine Overview
This three-head glass drilling machine offers enhanced productivity and precision in drilling operations on various glass types. Designed for efficiency and safety, it features double drill bits for each head and automated operation via foot pedal control.
Key Features
- Drills holes from both top and bottom sides of glass simultaneously
- Double drill bits for each head for fast and safe operation
- Automated bottom and top drilling controlled by foot pedal
- Infrared positioning system for precise hole placement
- Three heads accommodate different size bits, eliminating frequent bit changes
- Pneumatic worktable supports large area plate glass processing
- Ideal for mass production with high efficiency and convenience
Technical Specifications
| Specification | Value |
|---|---|
| Neck and Arm Length | 1250mm |
| Hole Diameter Range | 4mm - 80mm |
| Maximum Processing Size | 2500mm * 2500mm |
| Glass Thickness Range | 3mm - 25mm |
| Workbench Size | 1100mm * 620mm |
| Workbench Height | 920mm |
| Machine External Dimensions | 2200mm * 2100mm * 1750mm |
| Motor Power | 1.1KW * 6 = 2800 |
| Voltage | 380V, 50HZ |
| Electrical Components | Chint |

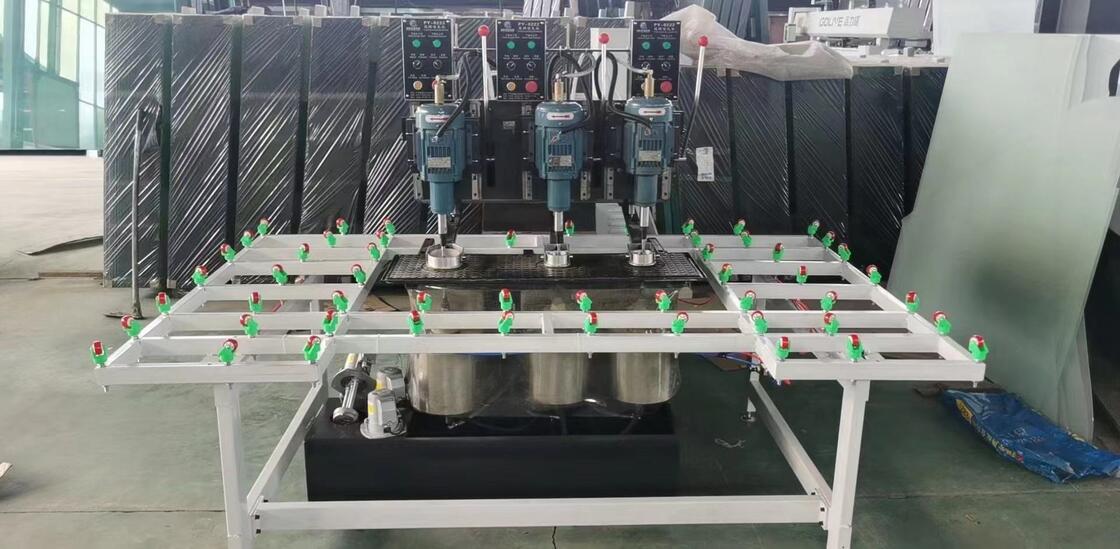

Machine Photos
