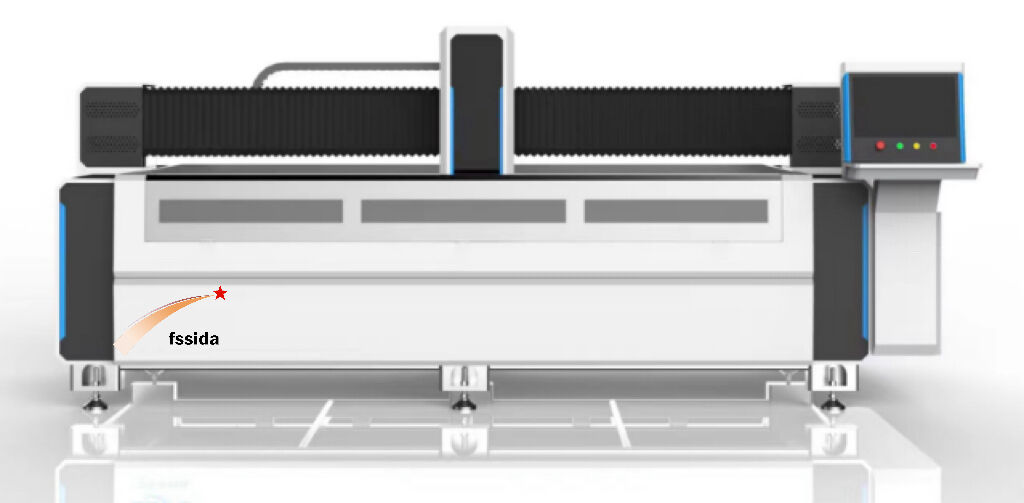

High Precision 1530 CNC Glass Processing Center For Drilling / Milling / Edging Flat Glass

The CNC1530 is a state-of-the-art, fully automated machining center engineered by Foshan Star Technology Co., Ltd. for high-volume, precision glass processing. It integrates robust construction with advanced automation to deliver exceptional efficiency and repeatability for demanding fabrication tasks.

Designed for maximum productivity, the CNC1530 handles glass sheets up to 1500 x 3000 mm with a high-speed grinding rate of 10 m/min and a polishing rate of 8 m/min.

• Automated Tool Management: The system features automatic tool changing for seamless transitions between complex operations, including round and straight edge grinding. This minimizes manual intervention and maximizes operational flexibility.
• Intelligent Polishing System: Equipped with a DB polishing wheel that incorporates automatic electric pressure compensation and self-dressing capabilities, ensuring a consistently superior and uniform surface finish over extended production runs.
• Precision Workholding: The machine is fitted with 8 sets of pneumatic positioning units and high-accuracy locating pins to guarantee precise and repeatable glass positioning. This is complemented by high-grade rubber vacuum suction cups that provide a secure and stable grip on the workpiece.

The machine's outstanding performance is built upon a foundation of premium global components and a rigid, durable frame.

• Control Architecture: At its core is a specialized 4-axis CNC control system designed specifically for glass edge processing, featuring remote connectivity for streamlined diagnostics and technical support.
• Motion System: The X, Y, and Z axes are driven by high-performance Delta servo motors and drives. This system is supported by high-rigidity linear guide rails and ball screws from Taiwan Hiwin or TBI, achieving a positioning accuracy of ±0.05mm and a repeatability of ±0.03mm.
• High-Speed Spindle: The center features a water-cooled, high-frequency spindle capable of reaching 9000 RPM. It utilizes a pneumatic tool changing mechanism for rapid swaps and is powered by a reliable Delta variable frequency drive (VFD).
• Robust Construction: The machine frame ensures long-term stability, with a worktable made from thickened industrial aluminum or PVA. All protective covers and the water containment tank are fabricated from stainless steel for enhanced durability and corrosion resistance.
