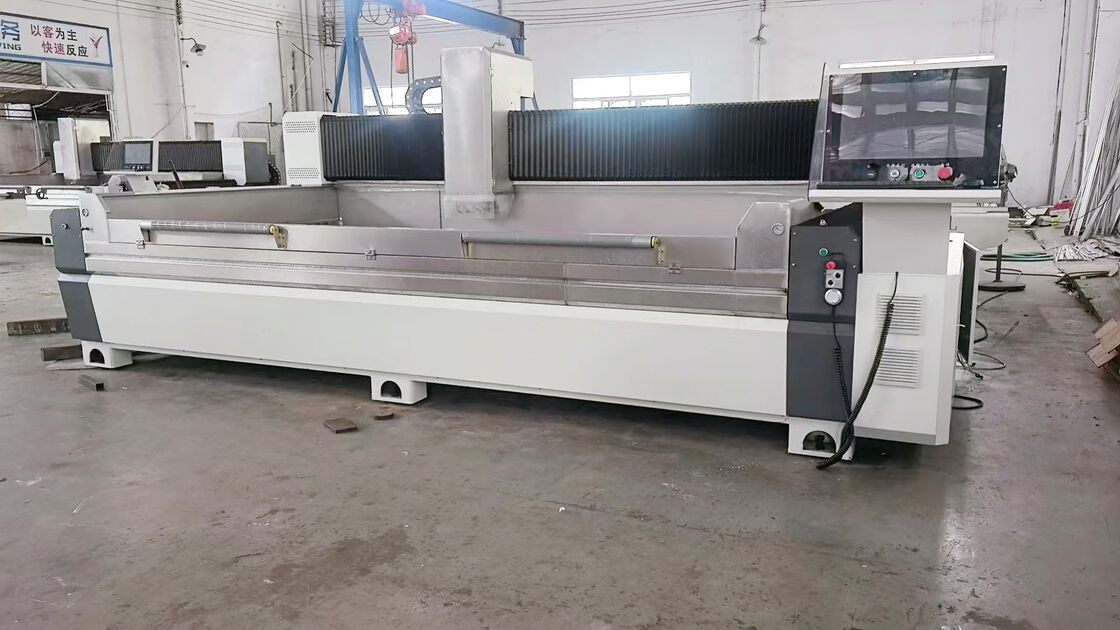

2-19mm CNC Glass Processing Center 380V 50Hz With Automatic Tool Changer
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FSSIDA |
| Certification: | CE |
| Model Number: | 2515 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 33000-39000$ |
| Packaging Details: | 4500*2600*1800 |
| Delivery Time: | 45day |
|
Detail Information |
|||
| Name: | CNC Glass Processing Center | Spindle Power: | 18KW |
|---|---|---|---|
| Outline Dimension: | 4500 Mm × 2800 Mm × 1800 Mm | Power Requirement: | 380V,50Hz |
| Installation Power: | 25KW | Processing Thickness: | 2~19mm |
| Processing Speed: | X-axis: 0-20 M/min; Y-axis: 0-20 M/min | ||
| Highlight: | 2mm CNC Glass Processing Center,19mm CNC Glass Processing Center,CNC Glass Working Center 380V |
||
Product Description
This fully automatic integrated glass rock panel edge trimming and polishing machine offers both straight-edge and irregular-edge trimming capabilities. It is suitable for decorative applications, home appliances, mosaic installations, handicrafts, and similar applications.
Product Features
1. Highly integrated functionality, one-stop processing
The CNC glass processing center integrates grinding, chamfering, polishing, drilling, milling, and various processes. It can automatically complete complex processes such as straight lines, circles, shapes, and drilling in one go according to the design graphics, completely changing the cumbersome process of multi equipment circulation in traditional glass processing.
2. High processing accuracy and stable quality
This equipment usually uses high-precision linear guides, grinding grade ball screws, and CNC systems, which can achieve micrometer level precision machining with a positioning accuracy of ± 0.02mm to ± 0.05mm. Fully automatic positioning and machining effectively avoid errors caused by manual operation, solve common edge fractures and hidden cracks in traditional machining, and make the output and quality of mass production highly stable.
| Category | Parameter | Value |
|---|---|---|
| Machine Parameters | Outline Dimension | 4500 mm × 2800 mm × 1800 mm |
| Packaging Size | 4500 mm × 2600 mm × 1800 mm | |
| Principal Axis | Huadiao × Taixin | |
| Bench Height | 750±50 mm (base foot adjustable) | |
| Power Requirement | 380V, 50Hz | |
| Installation Power | 25KW | |
| Processing Parameters | Finish Size | MAX. 2500×1500mm |
| Processing Thickness | 2~19mm | |
| Working Accuracy | ≤±0.2mm/m | |
| Spindle Power | 18KW |
